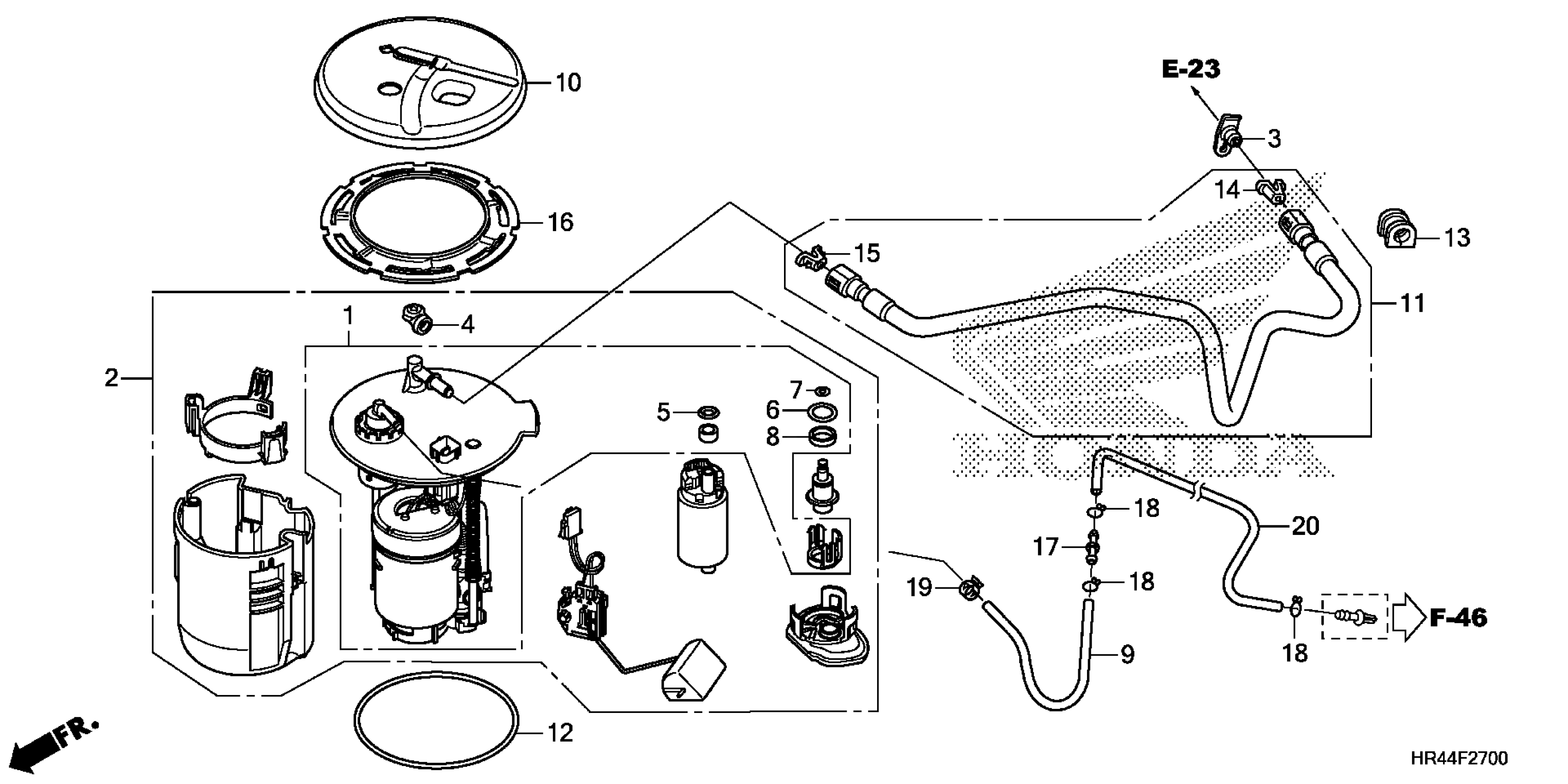

Honda TRX500FE12AC (15) TRX500FE1, USA, VIN# 1HFTE447-F4100001 FUEL PUMP Diagram

FILTER SET, FUEL

16010-HR3-A21

$36.66

PUMP ASSY., FUEL (MSDS)

16700-HR3-A21

$167.32

DAMPER, CONNECTOR

16718-HR0-F00

$0.58

DAMPER, CONNECTOR

16719-HW1-670

$20.71

O-RING

17041-S5A-930

$12.25

O-RING

17047-SAA-003

$64.93

O-RING

17048-SAA-003

$3.51

RING, BACK-UP

17049-SAA-003

$3.71

TUBE, TANK BREATHER (A)

17521-HR3-A20

$5.55

COVER, FUEL PUMP

17523-HR3-A20

$52.46

HOSE, FUEL FEED

17570-HR3-A21

$22.71

GASKET, FUEL PUMP

17574-HR3-A21

$4.12

RUBBER, FUEL FEED HOSE

17579-HP5-600

$1.77

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.08

RETAINER (ORANGE) (TOKAI)

17711-S0X-003

$2.80

RING, FUEL PUMP LOCKING

17719-HR3-A21

$9.88

JOINT B, WASHER TUBE (MITSUBA)

38562-663-920

$8.17

CLIP, TUBE (B8)

95002-02080

$1.59

CLAMP, TUBE (D8.5)

95002-40850-08

$2.30

BULK HOSE, VACUUM (4.5X1000) (4.5X750)

95005-45001-20M

$29.75
