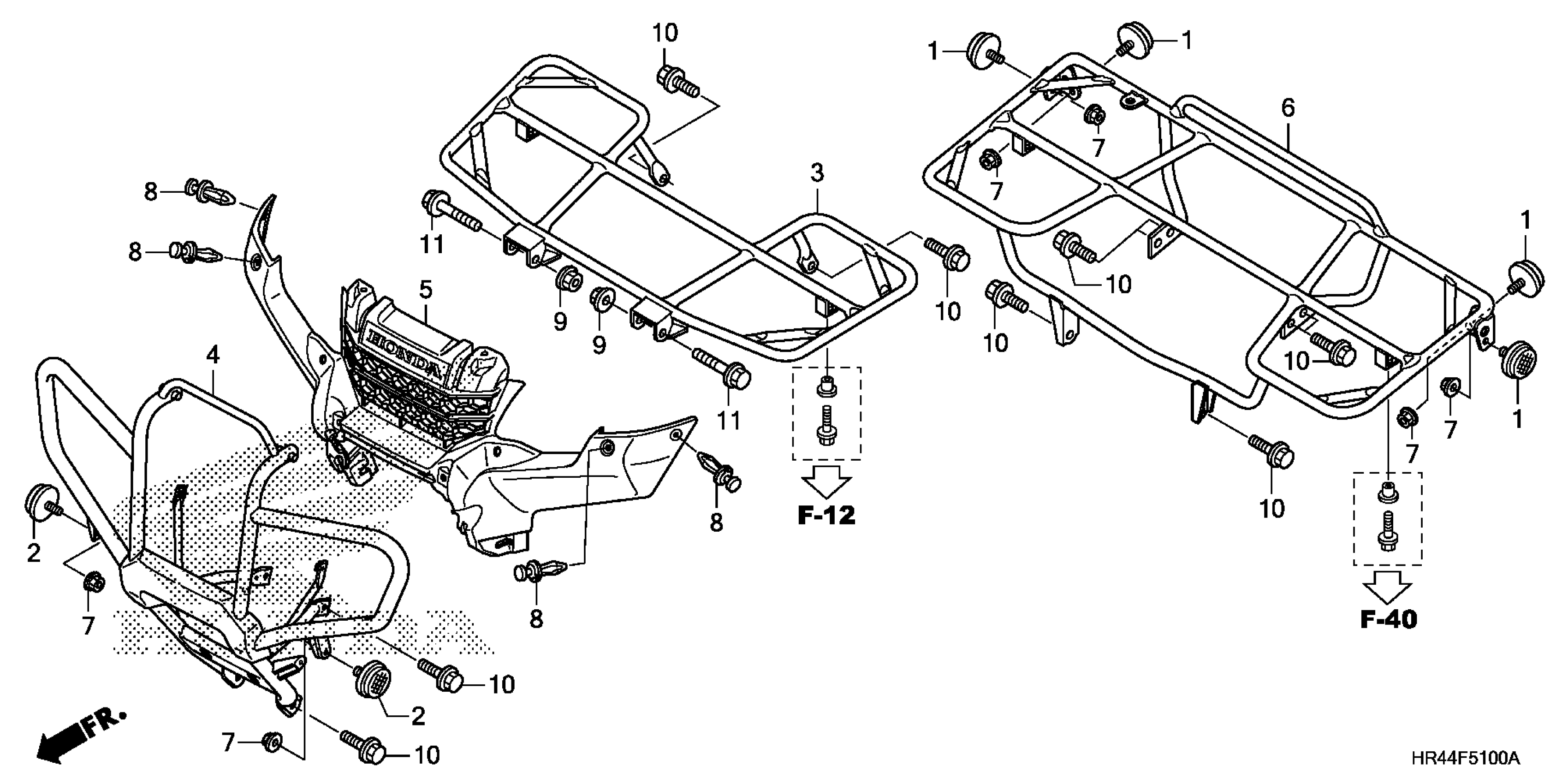

Honda TRX500FE12AC (15) TRX500FE1, USA, VIN# 1HFTE447-F4100001 CARRIER Diagram

#

Description

Price

3

CARRIER, FR. LUGGAGE NH1 (BLACK)

81100-HR4-A20ZA

$233.45

4

PIPE, FR. CARRY NH1 (BLACK)

81150-HR4-A20ZA

$298.43

5

GRILLE, FR. NH1 (BLACK) | Patriot red R232; Adventure green G152; Chaos black metallic-r NHA79MR;

81170-HR4-A20ZA

$36.44

6

CARRIER, RR. LUGGAGE NH1 (BLACK)

81300-HR3-A20ZA

$253.18

8

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

9

NUT, FLANGE (8MM)

94050-08070

$1.36

10

BOLT, FLANGE (8X16)

95701-08016-07

$1.59

11

BOLT, FLANGE (8X55)

95801-08055-07

$1.45
