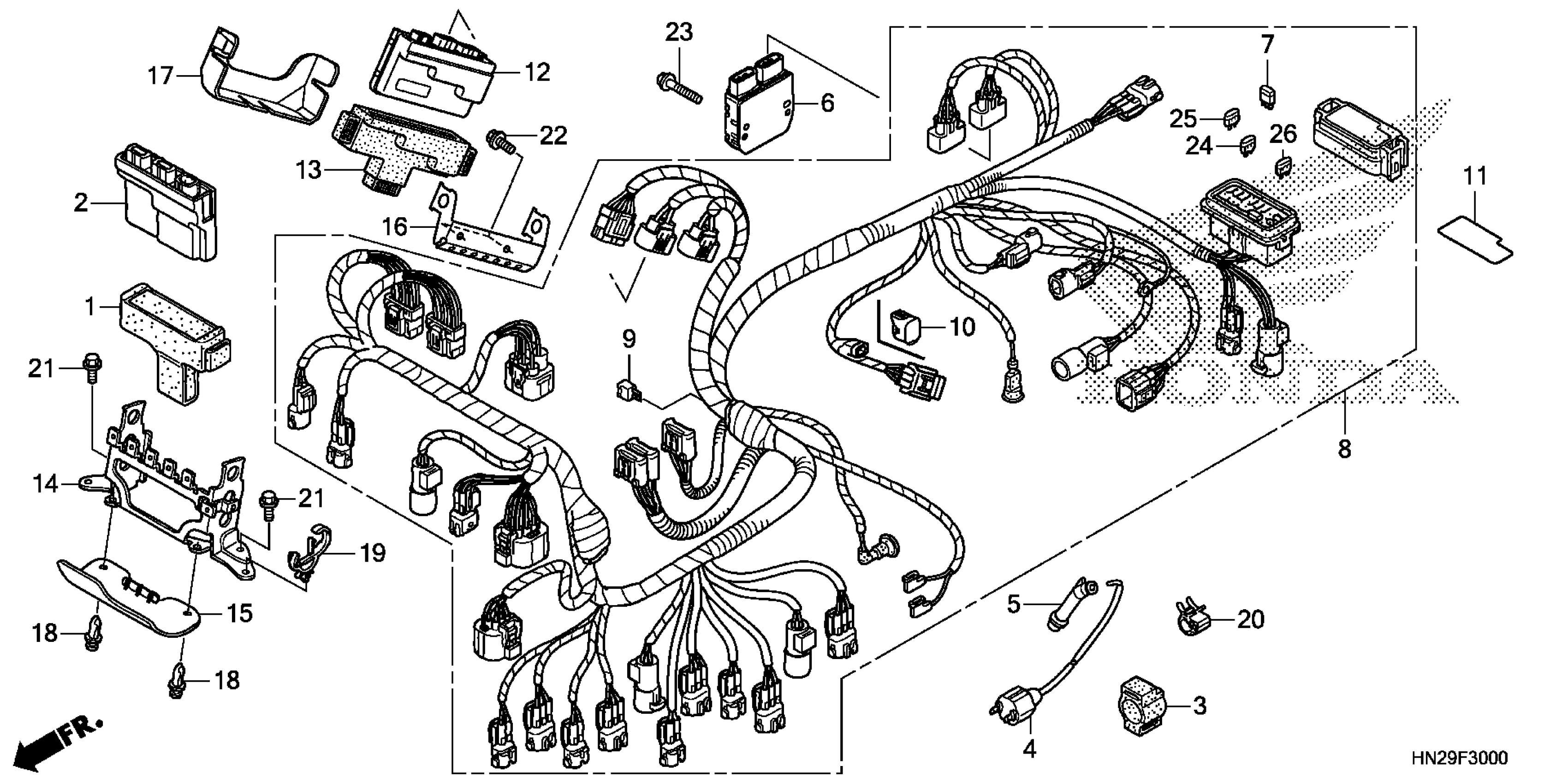

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 WIRE HARNESS Diagram

SUSPENSION, CONTROL UNIT

30401-HN7-000

$22.55

CONTROL UNIT, C.D.I. & HONDA MATIC

30410-HN2-A21

$324.88

SUSPENSION, IGNITION COIL

30506-KV3-771

$10.67

COIL, IGNITION

30510-HN2-A20

$32.45

CAP ASSY., NOISE SUPPRESSOR

30700-HN2-003

$20.26

RECTIFIER ASSY., REGULATOR This part replaces 31600-HR0-F01.

31600-MGZ-J01

$168.25

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$168.25

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

WIRE HARNESS

32100-HN2-B41

$683.14

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.36

STAY, ENGINE CONTROL UNIT

50269-HP0-A00

$68.90

GUARD, ENGINE CONTROL UNIT HEAT

50271-HP0-A00

$25.61

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

CLIP, HARNESS

90684-ZA0-601

$2.80

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

FUSE, MINI (10A)

98200-41000

$1.20

FUSE, MINI (15A)

98200-41500

$1.10

FUSE, MINI (30A)

98200-43000

$1.59
