Description

Price

1

SHAFT ASSY., PROPELLER

40200-HP0-A00

$57.83

2

JOINT, YOKE

40210-HN7-010

$52.88

3

SPRING, PROPELLER SHAFT

40215-HN0-671

$2.87

4

HITCH, TRAILER

50810-HP0-A00

$35.49

5

SWINGARM ASSY., RR.

52100-HP0-A50

$293.99

6

BOOT, JOINT

52101-HM7-000

$12.28

7

HOLDER, SWINGARM GREASE

52112-MA1-300

$6.56

8

PIPE, R. HOUSING

52210-HP0-A00

$521.09

9

PIPE ASSY., L. HOUSING

52300-HN2-000

$766.57

10

BOLT A, PIVOT

90121-HM5-930

$8.20

11

BOLT B, PIVOT

90122-HM5-930

$9.45

12

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

13

CAP, LOCK NUT

90312-HM5-670

$10.21

14

NUT, SWINGARM PIVOT LOCK

90355-469-000

$15.75

15

BEARING, RADIAL BALL (32X58X13UU) (KOYO)

91055-HN5-681

$17.64

16

BEARING, ANGULAR (7203)

91066-HC4-004

$30.61

17

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$18.27

18

DUST SEAL (26X40X5) (NOK)

91268-HN0-A01

$5.30

19

SEAL A, RUBBER

91302-HM7-003

$7.36

20

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.70

21

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.32

22

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90250

$5.07

23

BOLT, FLANGE (10X20)

95701-10020-00

Unavailable

24

BOLT, FLANGE (10X60)

95701-10060-00

$1.80

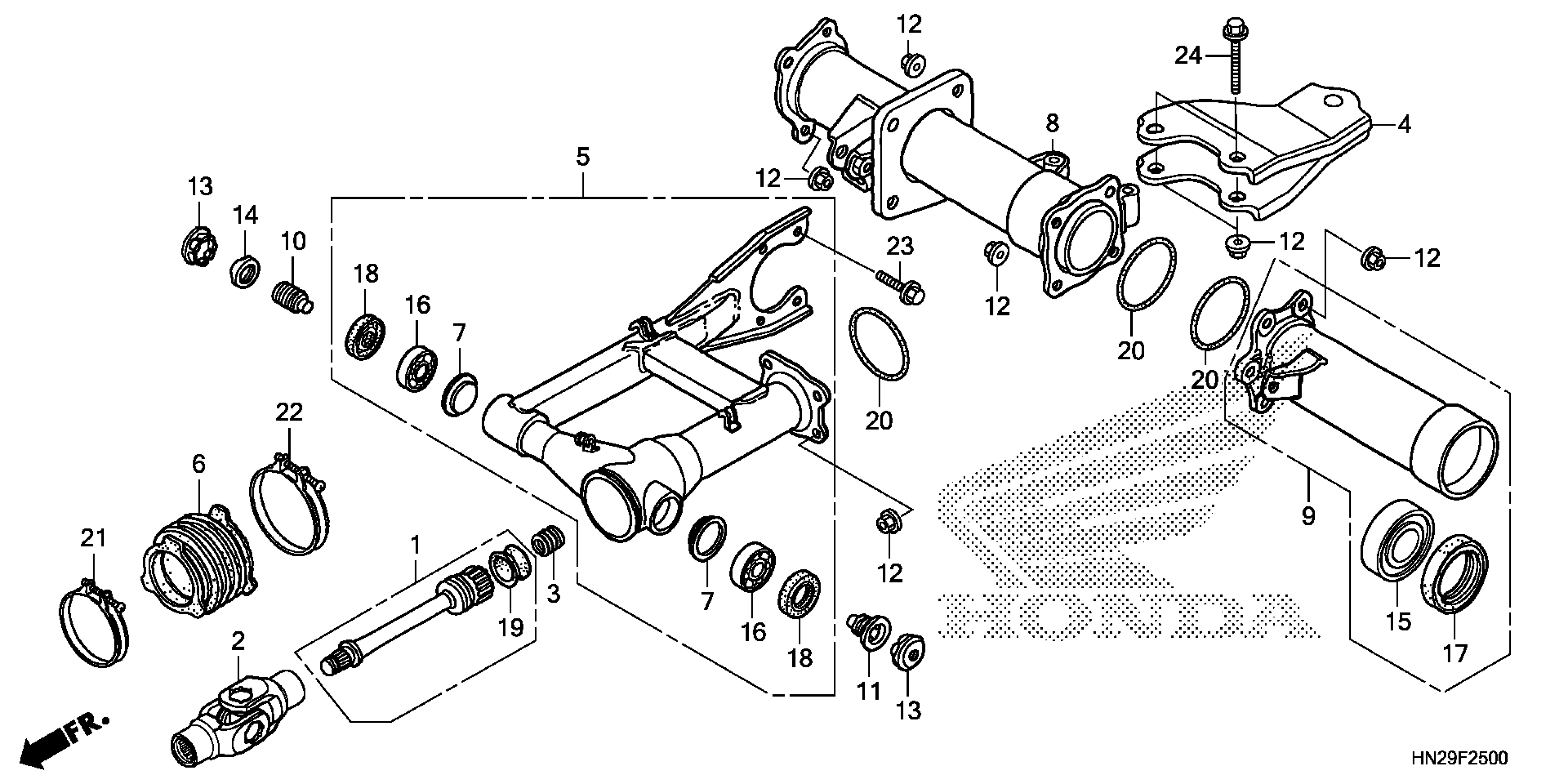

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 SWINGARM Diagram
