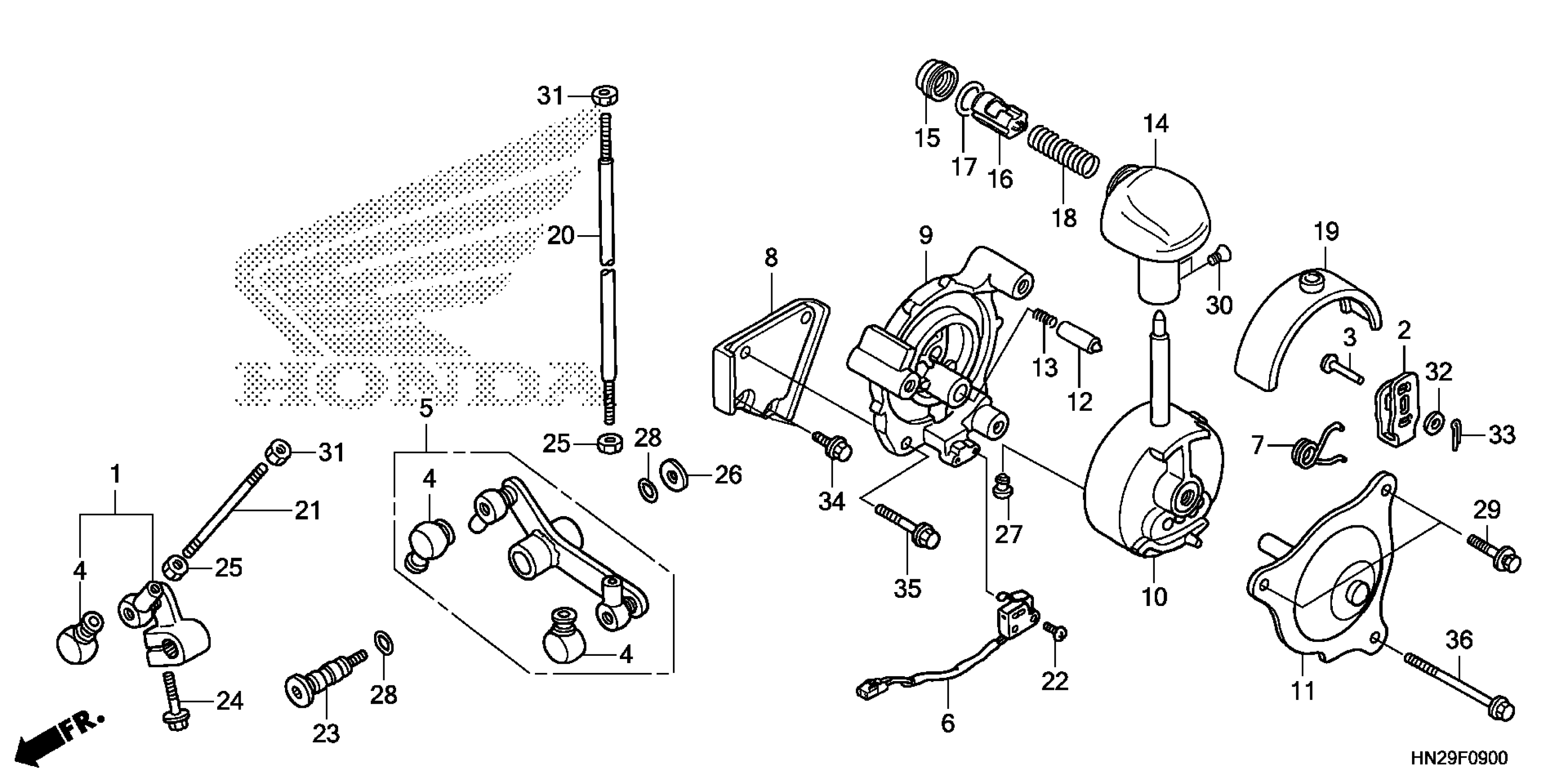

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 SELECT LEVER Diagram

#

Description
Price

1

ARM, GEARSHIFT

24712-HN2-000

$20.91

2

GUIDE, SHIFT SPRING

24722-HN2-000

$10.48

3

SHAFT, SLIDE

24723-HN2-000

$40.84

4

COVER, DUST

24724-422-000

$6.68

5

ARM, CHANGE MIDDLE

24732-HN2-000

$36.79

6

SWITCH ASSY., REVERSE

35370-HN2-A21

$48.03

7

SPRING, SHIFT RETURN

50617-HN2-000

$5.29

8

STAY, SHIFT

54004-HN2-A20

$7.70

9

BRACKET, SELECT LEVER

54201-HN2-003

$75.80

10

LEVER SUB-ASSY., SELECT

54202-HN2-A21

$59.18

11

COVER, SELECT LEVER

54207-HN2-003

$19.61

12

PLUNGER, DETENT

54208-HN2-003

$9.13

13

SPRING, DETENT

54209-HN2-003

$2.18

14

KNOB, SELECT

54213-HN2-A20

$27.82

15

BOOT, PUSH KNOB

54214-HN2-003

$3.85

16

KNOB, PUSH

54215-HN2-A21

$4.06

17

CLIP, PUSH KNOB BOOT

54216-HN2-003

$1.49

18

SPRING, PUSH KNOB

54217-HN2-A20

$1.59

19

COVER, SHIFT LEVER

54226-HN2-000

$14.60

20

BOLT, TIE ROD

90065-HN2-A20

$8.52

21

BOLT, TIE ROD

90065-MW3-A90

$4.16

22

SCREW-WASHER (3X14)

90101-HN2-000

Unavailable

23

BOLT, CHANGE PIVOT

90115-HN2-010

$9.71

24

BOLT, FLANGE (6X20)

90118-968-000

$4.24

25

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

26

WASHER, PLAIN (8MM)

90501-HN2-000

$2.92

27

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.61

28

O-RING (9.4X2.4)

91304-KK3-830

$2.31

29

BOLT-WASHER (6X20)

93401-06020-08

$1.87

30

SCREW, OVAL (5X8)

93700-05008-0G

$1.49

31

NUT, HEX. (6MM)

94002-06020-0S

$1.49

32

WASHER, PLAIN (6MM)

94103-06800

$1.49

33

PIN, SPLIT (2.0)

94201-20101

$1.49

34

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

35

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

36

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
