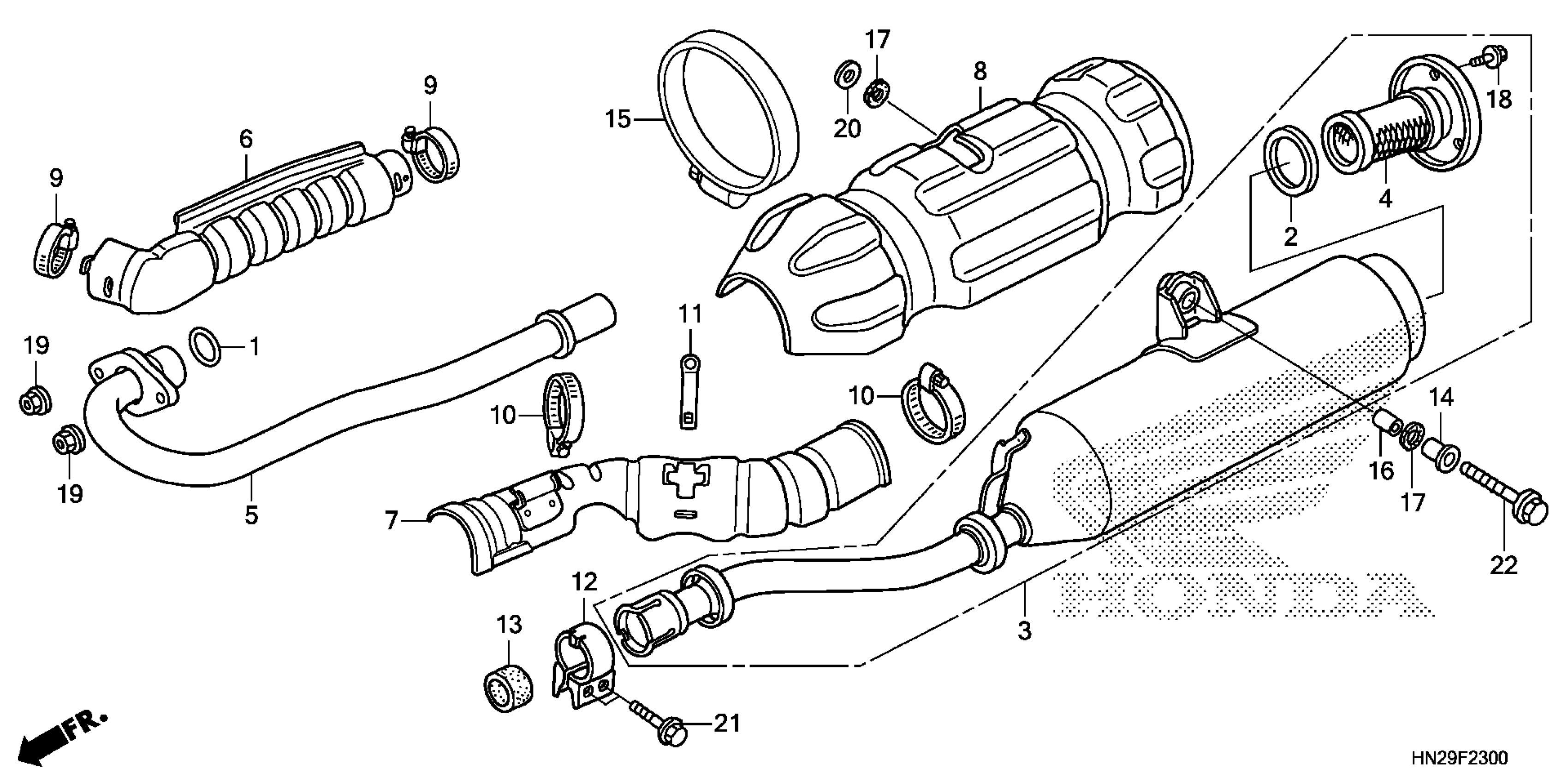

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN4-920

$4.94

GASKET, MUFFLER

18292-MV4-000

$7.79

MUFFLER ASSY.

18300-HN2-A60

Unavailable

ARRESTER, SPARK

18317-HN2-A60

Unavailable

PIPE, EX.

18320-HN2-A20

Unavailable

COVER, EX. PIPE

18321-HN2-A20

Unavailable

PROTECTOR, HEAT

18322-HN2-A20

$43.96

COVER, MUFFLER

18323-HP0-A00

$118.42

BAND, EX. PIPE COVER

18325-HN2-000

$9.86

BAND, HEAT PROTECTOR

18326-HN2-000

Unavailable

BAND, HEAT PROTECTOR (57)

18329-HP0-A00

$9.01

BAND, MUFFLER

18373-HA7-671

$18.68

GASKET, MUFFLER

18391-HM7-A00

$11.03

COLLAR, MUFFLER MOUNTING

18422-HN2-000

$34.51

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.43

RUBBER, MUFFLER MOUNTING

50608-HP0-A00

$11.69

RUBBER, MUFFLER MOUNTING SIDE

50609-HN2-000

Unavailable

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

WASHER, PLAIN (10MM)

90501-HN1-000

$2.87

BOLT, FLANGE (8X35)

95701-08035-08

$1.28

BOLT, FLANGE (10X50)

95701-10050-08

$2.29
