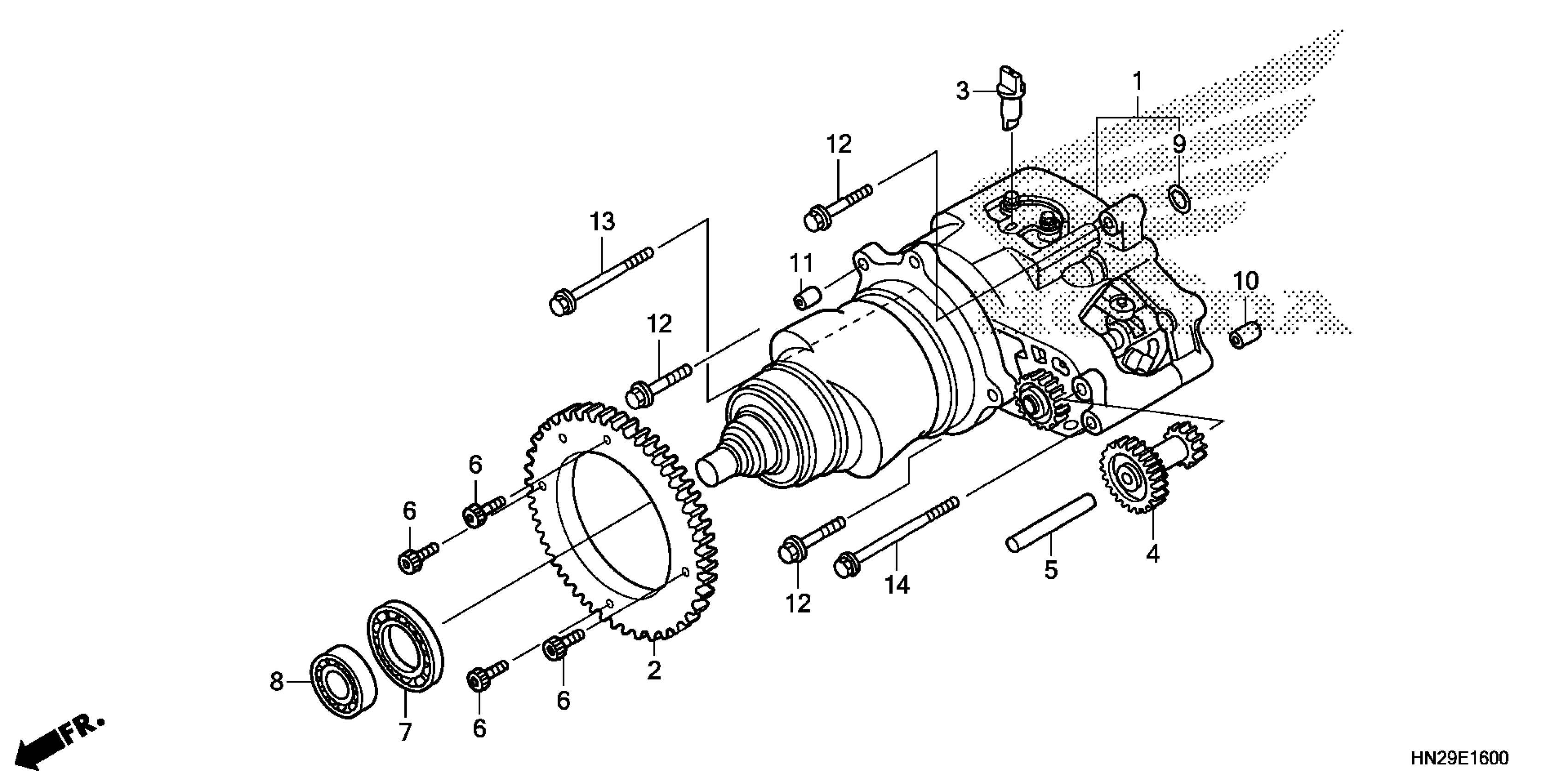

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 HONDAMATIC Diagram

HONDAMATIC UNIT

26000-HN2-A00

$2,287.82

GEAR, PRIMARY DRIVEN (70T)

26221-HN2-000

$158.87

SHAFT, ANGLE SENSOR

27431-HN2-000

$12.21

GEAR, MOTOR DRIVE (56T/17T)

27511-HN2-000

$59.03

SHAFT, MOTOR DRIVE

27526-HN2-000

$5.23

BOLT, SOCKET (6MM)

90002-HN5-670

$3.38

BEARING, RADIAL BALL (6813) (NTN)

91007-HN2-004

$75.90

BEARING, RADIAL BALL (22X52X13)

91014-HN2-003

$20.11

O-RING (18.5X1.9) (NOK)

91301-P7X-003

$3.08

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN, DOWEL (7X12)

94303-07120

$1.64

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X105)

95701-06105-00

$3.09
