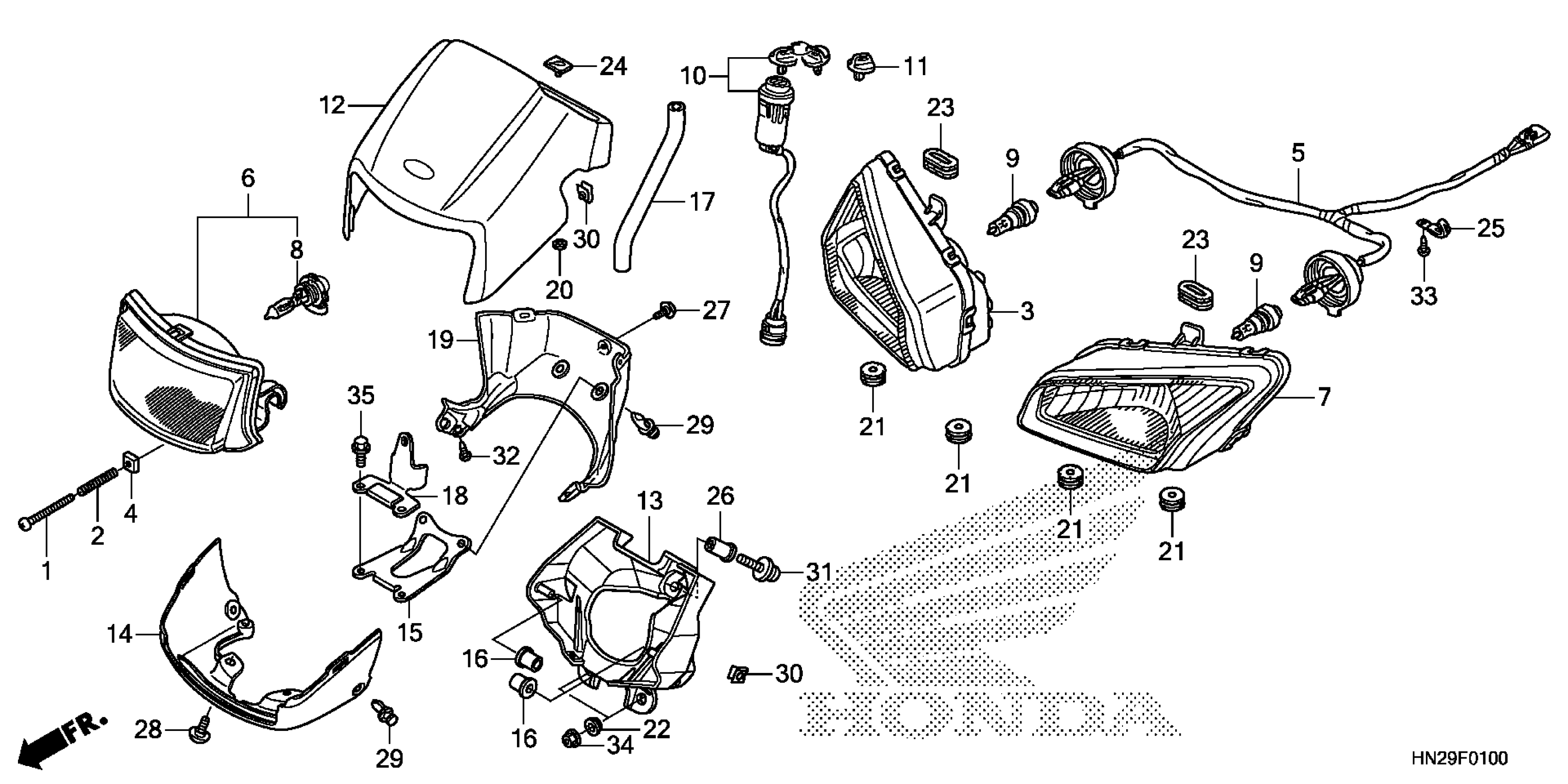

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 HEADLIGHT Diagram

#

Description
Price

1

SCREW, PAN (4X45)

33103-KAE-770

$1.49

2

SPRING, BEAM ADJUSTING

33107-KAE-771

$2.64

3

HEADLIGHT UNIT, R.

33110-HP0-A00

Unavailable

4

NUT, BEAM ADJUSTING

33117-KBR-730

$2.92

5

SOCKET, HEADLIGHT

33130-HP0-A00

Unavailable

6

HEADLIGHT ASSY., ASSIST (12V 45W)

33150-HP0-A00

Unavailable

7

HEADLIGHT UNIT, L.

33160-HP0-A00

Unavailable

8

BULB, HEADLIGHT (12V 45W) (HOBBS)

34901-HN2-000

$31.02

9

BULB, HEADLIGHT (12V 30/30W)

34901-HP0-A01

$34.57

10

SWITCH ASSY., IGNITION

35100-HP0-A71

$44.40

11

KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$9.59

11

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$9.59

12

COVER, METER (UPPER) *G152* (ADVENTURE GREEN) | Adventure green G152;

53205-HP0-A00ZA

$16.75

12

COVER, METER (UPPER) *R232* (PATRIOT RED) | Patriot red R232;

53205-HP0-A00ZB

$16.75

12

COVER, METER (UPPER) *NH196* (ROSS WHITE) | Ross white NH196;

53205-HP0-A00ZF

$16.75

13

STAY, METER COVER

53207-HP0-A50

$20.38

14

COVER, FR. METER (LOWER) *NH1* (BLACK)

53210-HP0-A00ZA

$12.55

15

STAY, METER COVER (LOWER)

53211-HP0-A00

$41.00

16

BOOT, ASSIST HEADLIGHT

53212-HP0-A00

$2.31

17

TUBE, GUIDE

53213-HP0-A00

$4.51

18

STAY, METER COVER SUPPORT

53214-HP0-A50

$116.23

19

COVER, RR. METER (LOWER) *NH1* (BLACK)

53215-HP0-A00ZA

$12.55

20

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

21

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$3.12

22

COLLAR, TOOL BOX SETTING

83505-KM4-000

$4.87

23

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

24

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$7.66

25

CLIP, TUBE

90010-GE0-710

$2.08

26

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

27

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.18

28

SCREW, PAN (5X15)

90150-GN5-901

$2.33

29

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

30

NUT, CLIP (5MM)

90677-KAN-961

$4.07

31

SCREW-WASHER (5X20)

93894-05020-08

$1.49

32

SCREW, TAPPING (5X10)

93903-25180

$1.49

33

SCREW, TAPPING (5X12)

93903-25220

$1.49

34

NUT, FLANGE (8MM)

94050-08070

$1.49

35

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
