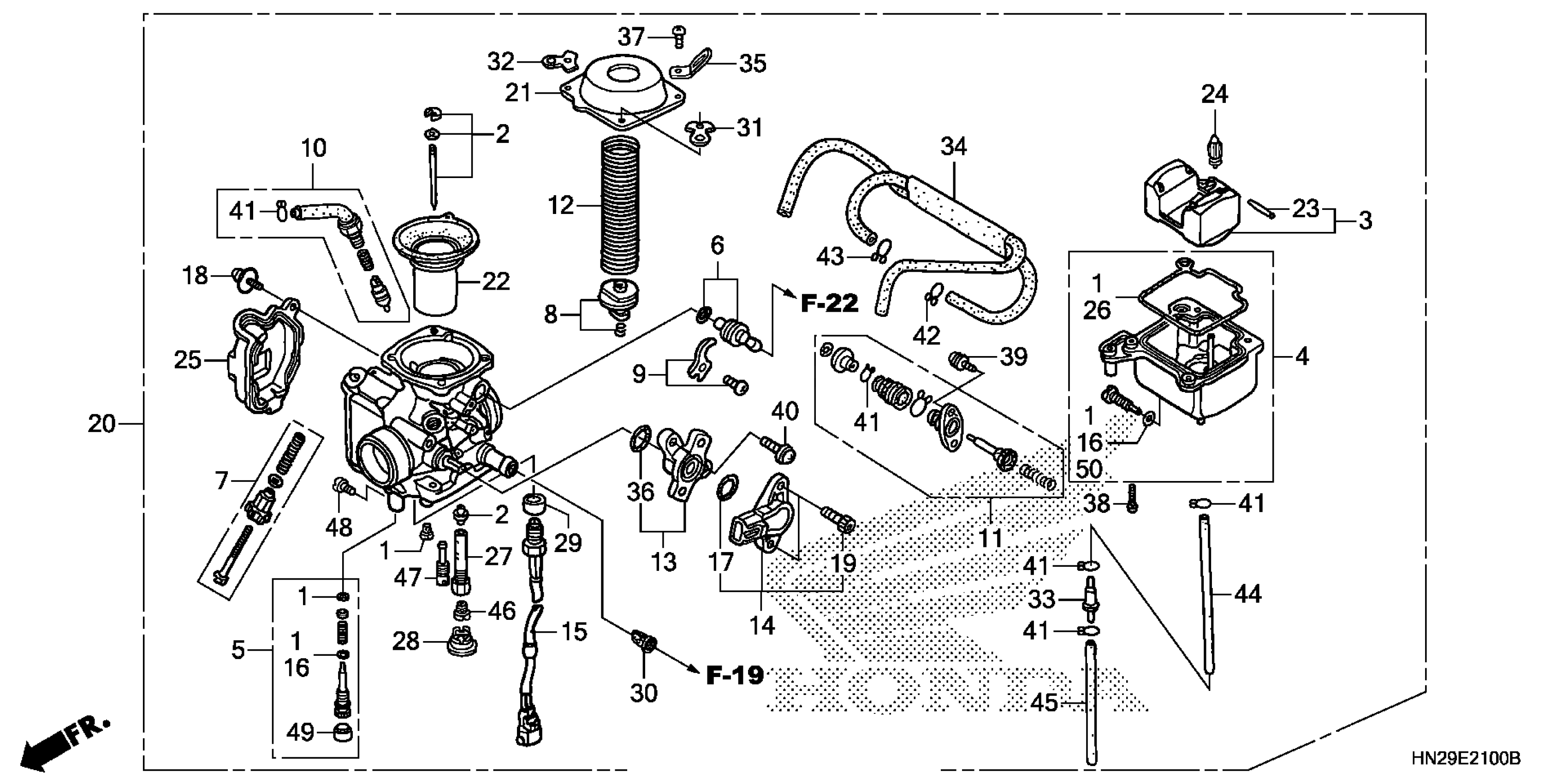

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HN2-A21

$25.36

2

NEEDLE SET, JET

16012-HN2-A21

$24.80

3

FLOAT SET

16013-HN8-003

$35.32

4

CHAMBER SET, FLOAT

16015-HP0-A01

$34.99

5

SCREW SET

16016-HN2-A22

Unavailable

6

JOINT SET

16026-MR1-004

$36.85

7

SCREW SET

16028-HP0-A01

$19.49

8

PLATE SET, VALVE

16037-HN2-003

$17.46

9

PLATE SET, STAY

16038-HN8-003

Unavailable

10

VALVE, STARTER

16046-HN2-003

$49.83

11

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$78.73

11

PUMP SET

16048-HN7-003

$78.73

12

SPRING, COMPRESSION COIL

16050-HN2-A21

$9.36

13

SPACER SET, THROTTLE SENSOR

16060-HN2-A21

$29.04

14

CARBURETOR ASSY This part replaces 16061-HP0-A01.

16061-HP0-A02

$201.59

15

HEATER ASSY.

16070-HN2-A21

$65.49

17

O-RING

16075-HN2-A21

$2.74

18

SCREW-WASHER

16080-HC0-003

$3.86

19

BOLT, BREAK HEAD

16083-HP0-A01

$5.12

20

CARBURETOR ASSY. (VE6AE C)

16100-HN2-A24

$293.92

21

TOP

16107-HN2-003

$32.49

22

PISTON, VACUUM

16111-HN2-003

$107.19

23

PIN, ARM

16152-HN8-003

$3.80

24

VALVE, FLOAT

16155-HN7-003

$25.94

25

COVER, BODY

16157-HN8-003

$24.70

26

GASKET, FLOAT CHAMBER

16163-MEA-671

$20.80

27

HOLDER, NEEDLE JET

16165-HN2-003

$26.88

28

HOLDER, JET

16168-HC4-003

$9.70

29

COLLAR, SETTING

16172-KEB-610

$3.30

30

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36

31

BINDER

16178-HP0-A01

$1.99

32

BINDER

16179-HP0-A01

$1.99

33

VALVE, ONE-WAY

16180-HC4-003

$16.19

34

TUBE, AIR VENT

16196-HP0-A01

$8.13

35

CLIP, PLATE

17191-MT2-740

$3.38

36

O-RING (14.8X1.9)

91304-PT0-000

$3.65

37

SCREW, PAN (4X8)

93500-04008-0H

$0.83

37

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

38

SCREW, PAN (4X14)

93500-04014-0H

$0.75

38

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.75

39

SCREW-WASHER (4X12)

93892-04012-08

$0.58

39

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

40

SCREW-WASHER (5X14)

93892-05014-08

$1.00

40

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.00

41

CLIP, TUBE (B7)

95002-02079

$1.09

42

CLIP, TUBE (B1 8)

95002-02089

Unavailable

43

CLIP, TUBE (B6.5)

95002-02659

$1.00

44

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-50M

$12.31

45

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-50M

$12.31

46

JET, MAIN (#158) | (Optional).

99101-HN2-1580

$10.42

46

JET, MAIN (#162)

99101-HP0-1620

$6.96

47

JET, SLOW (#45) This part replaces 99104-HN2-0450.

99104-KPF-0450

$10.64

47

JET, SLOW (#45)

99104-KPF-0450

$10.64

48

JET (#85)

99112-HN2-0850

$15.43

49

CAP, ADJUSTING SCREW

16312-KYK-911

$2.46

50

O-RING (1.3X4.3)

16075-GHB-640

$2.65
