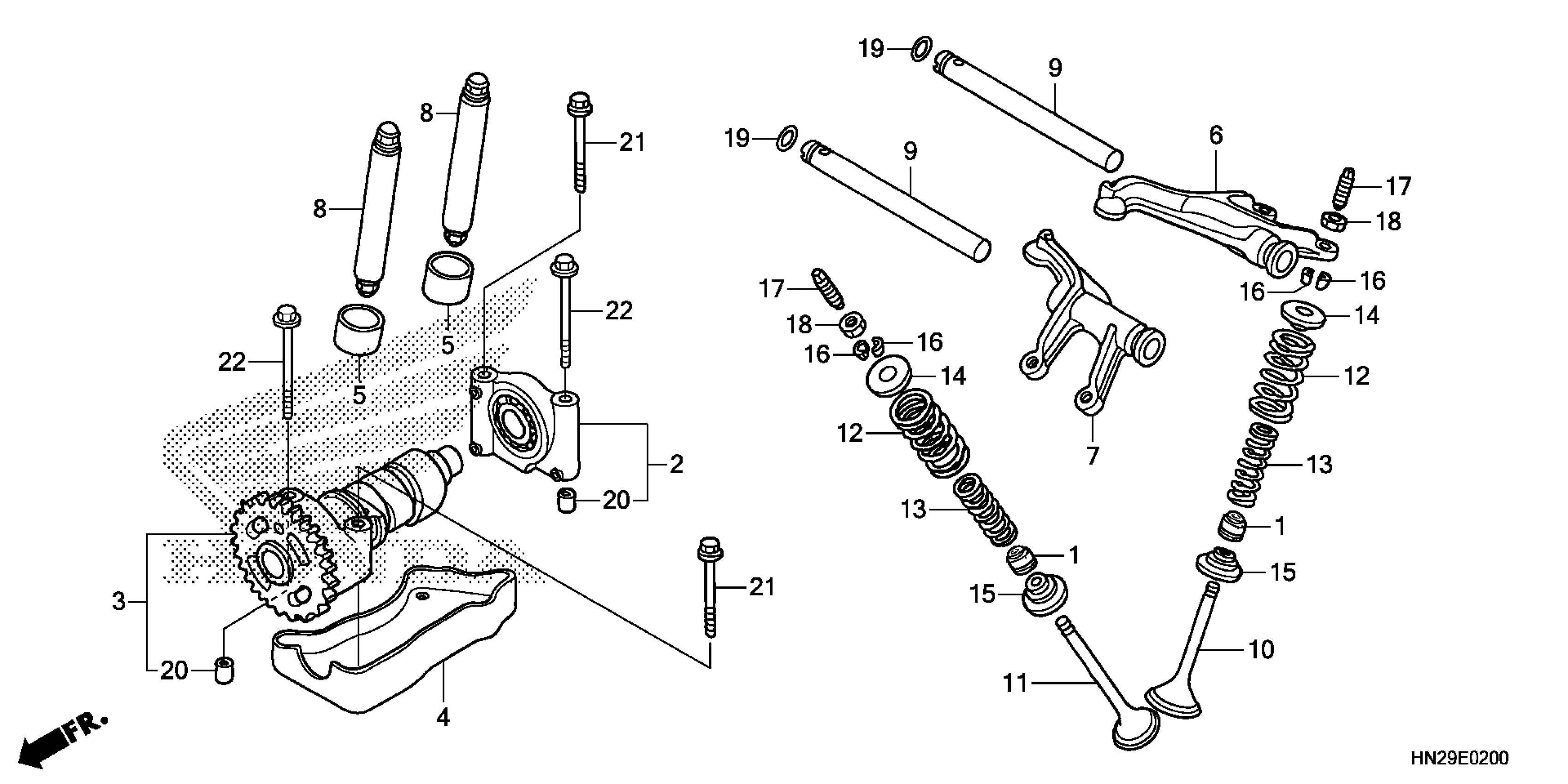

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (NOK)

12209-KL4-005

$7.28

HOLDER B, CAMSHAFT

12212-HN2-P00

$31.67

CAMSHAFT

14100-HN2-305

$204.97

PLATE, CAMSHAFT HOLDER

14104-HN2-000

$18.52

FOLLOWER, CAM

14421-HM7-000

$31.75

ARM, VALVE ROCKER IN This part replaces 14431-HN8-000.

14431-HL3-B50

$97.30

ARM, VALVE ROCKER EX This part replaces 14432-HN8-000.

14432-HL3-B50

$97.30

ROD, PUSH

14440-HN2-000

$18.50

SHAFT, ROCKER ARM

14451-HN2-000

$18.14

VALVE, IN.

14711-HN2-000

$36.72

VALVE, EX.

14721-HN2-000

$60.80

SPRING, VALVE (OUTER)

14751-HN2-000

$8.78

SPRING, VALVE (INNER)

14761-HN2-000

$7.62

RETAINER, VALVE SPRING

14771-107-020

$7.44

SEAT, VALVE SPRING

14775-HN2-000

$6.15

COTTER, VALVE

14781-HA0-770

$3.21

SCREW, TAPPET ADJUSTING

90012-426-000

$6.48

NUT, TAPPET ADJUSTING

90206-250-000

$2.80

O-RING (1.5X9.5)

91306-MG3-000

$2.12

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.12

PIN, DOWEL (8X10)

94301-08100

$2.04

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

BOLT, FLANGE (6X65)

95701-06065-08

$2.09
