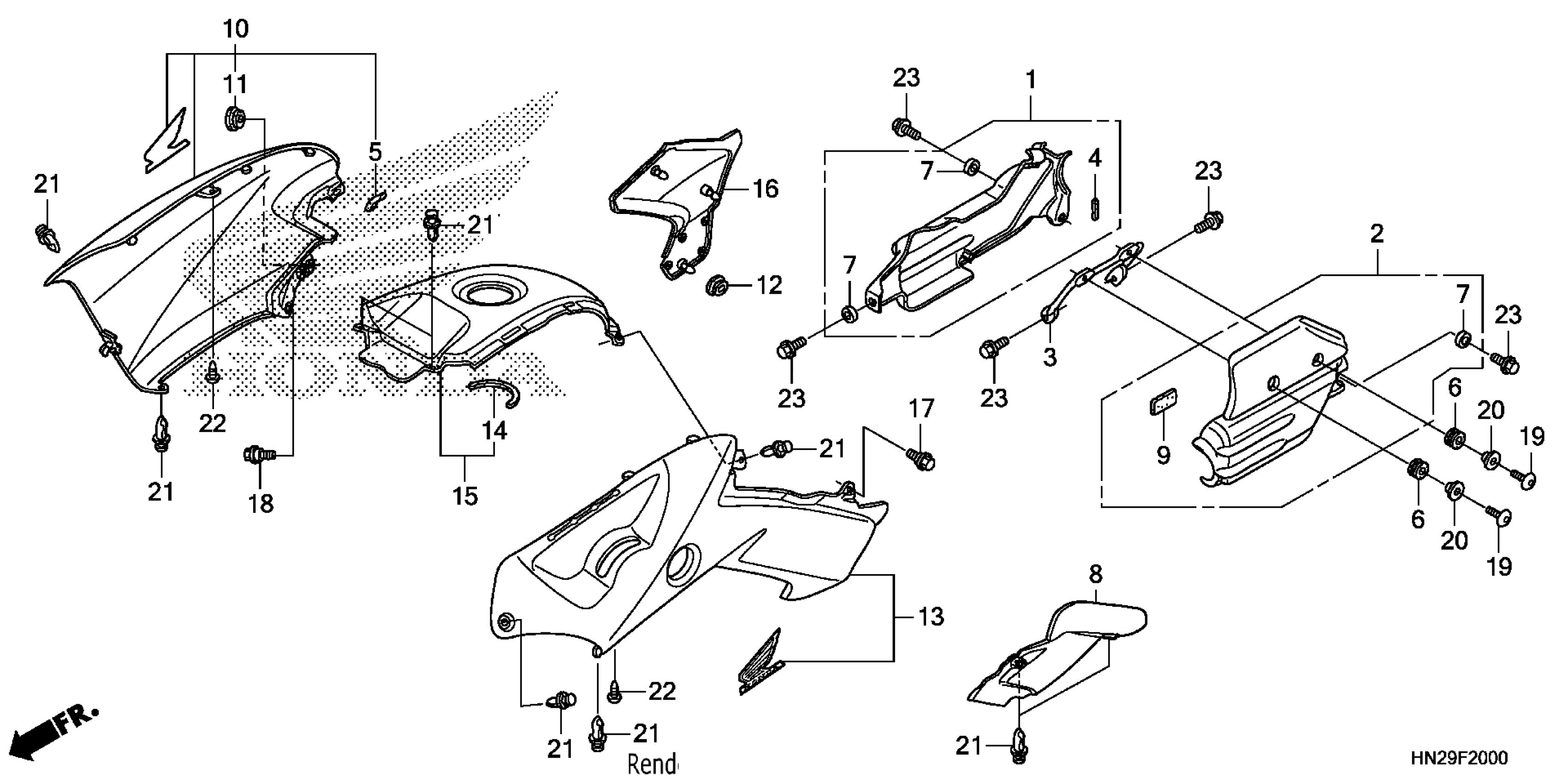

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 BODY COVER Diagram

#

Description
Price

1

COVER, R. ENGINE SIDE *NH1* (BLACK)

11310-HN2-A60ZA

$36.05

2

COVER, L. ENGINE SIDE *NH1* (BLACK)

11320-HN2-A60ZA

$41.26

3

STAY, L. ENGINE SIDE COVER

11321-HN2-A60

$31.54

4

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.38

5

SEAL A, HEAT PROTECTOR

17525-HP0-A50

$8.13

6

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.64

7

COLLAR (6X4)

52156-353-300

$5.89

8

GUIDE, L. RR. ENGINE AIR *NH1* (BLACK)

61896-HP0-A00ZA

$53.29

9

RUBBER, SPACER

80126-GAG-750

$2.16

10

COVER SET, R. TANK SIDE *G152* (WL) (ADVENTURE GREEN)

83550-HN2-B40ZA

$185.99

10

COVER SET, R. TANK SIDE *R232* (WL) (PATRIOT RED)

83550-HN2-B40ZC

$166.74

10

COVER SET, R. TANK SIDE *G152* (WL) (ADVENTURE GREEN) | Adventure green G152; This part replaces 83550-HN2-B40ZD.

83550-HN2-B40ZA

$185.99

10

COVER SET, R. TANK SIDE *R232* (WL) (PATRIOT RED) | Patriot red R232; This part replaces 83550-HN2-B40ZE.

83550-HN2-B40ZC

$166.74

10

COVER SET, R. TANK SIDE (TYPE1) (WL) | Ross white NH196;

83550-HN2-K00ZA

$402.10

11

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

12

GROMMET, SIDE COVER

83551-HM5-730

$1.12

13

COVER SET, L. TANK SIDE *R232* (WL) (PATRIOT RED)

83650-HN2-B40ZC

$114.03

13

COVER SET, L. TANK SIDE (TYPE2) (WL) | Adventure green G152;

83650-HN2-B40ZD

$122.62

13

COVER SET, L. TANK SIDE *R232* (WL) (PATRIOT RED) | Patriot red R232; This part replaces 83650-HN2-B40ZE.

83650-HN2-B40ZC

$114.03

13

COVER SET, L. TANK SIDE (TYPE1) (WL) | Ross white NH196;

83650-HN2-K00ZA

$192.68

14

SEAL, TOP COVER

83701-HP0-A50

$2.93

15

COVER *NH1* This part replaces 83750-HP0-A50ZA.

83750-HP0-305ZA

$30.16

16

COVER, R. SIDE *G152* (ADVENTURE GREEN) | Adventure green G152;

83800-HP0-A00ZA

$72.01

16

COVER, R. SIDE *R232* (PATRIOT RED) | Patriot red R232;

83800-HP0-A00ZB

$68.04

16

COVER, R. SIDE *NH196* (ROSS WHITE) | Ross white NH196;

83800-HP0-A00ZF

$116.99

17

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

18

BOLT, FLANGE (6MM)

90111-162-000

$2.62

19

SCREW, PAN (6X14)

90118-MR1-000

$2.88

20

COLLAR, REFLECTOR SETTING

90129-463-770

$2.93

21

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

22

SCREW, TAPPING (4X10)

93903-24220

$0.83

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.48
