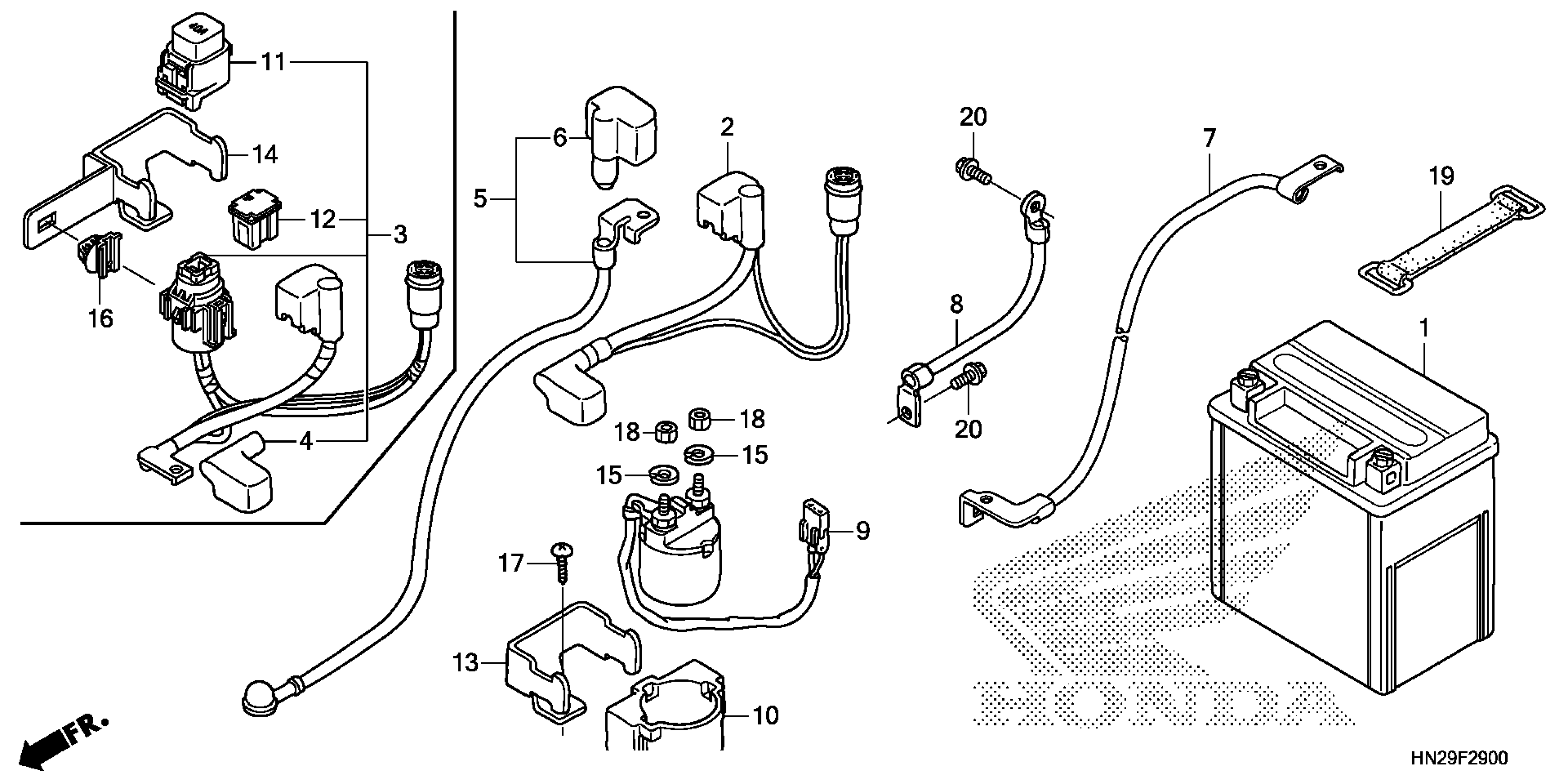

Honda TRX500FAAC (14) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE260-E4400001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

1

BATTERY (YTX14-BS) (YUASA) (MSDS)

31500-HC4-726AH

Unavailable

2

CABLE, RELAY BATTERY

32401-HP0-A10

$42.35

5

CABLE, STARTER MOTOR

32405-HP0-A70

$59.84

6

COVER, MAGNETIC SWITCH TERMINAL

32416-HN5-670

$4.53

7

CABLE, BATTERY GROUND

32601-HN2-A20

$13.74

8

CABLE, FRAME GROUND

32603-HP0-A00

$21.03

9

SWITCH ASSY., STARTER MAGNETIC

35850-HN2-A01

$53.45

10

RUBBER, MAGNETIC SHOCK

35856-425-000

$9.79

13

STAY, STARTER MAGNETIC

50326-HC4-000

$7.73

15

WASHER, SPRING (6MM)

90052-ZA0-800

$0.99

17

SCREW, TAPPING (5X12)

93903-25220

$0.83

18

NUT, HEX. (6MM)

94002-06390-0S

$0.77

19

BAND F, BATTERY (155MM)

95012-17001

$6.72

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
