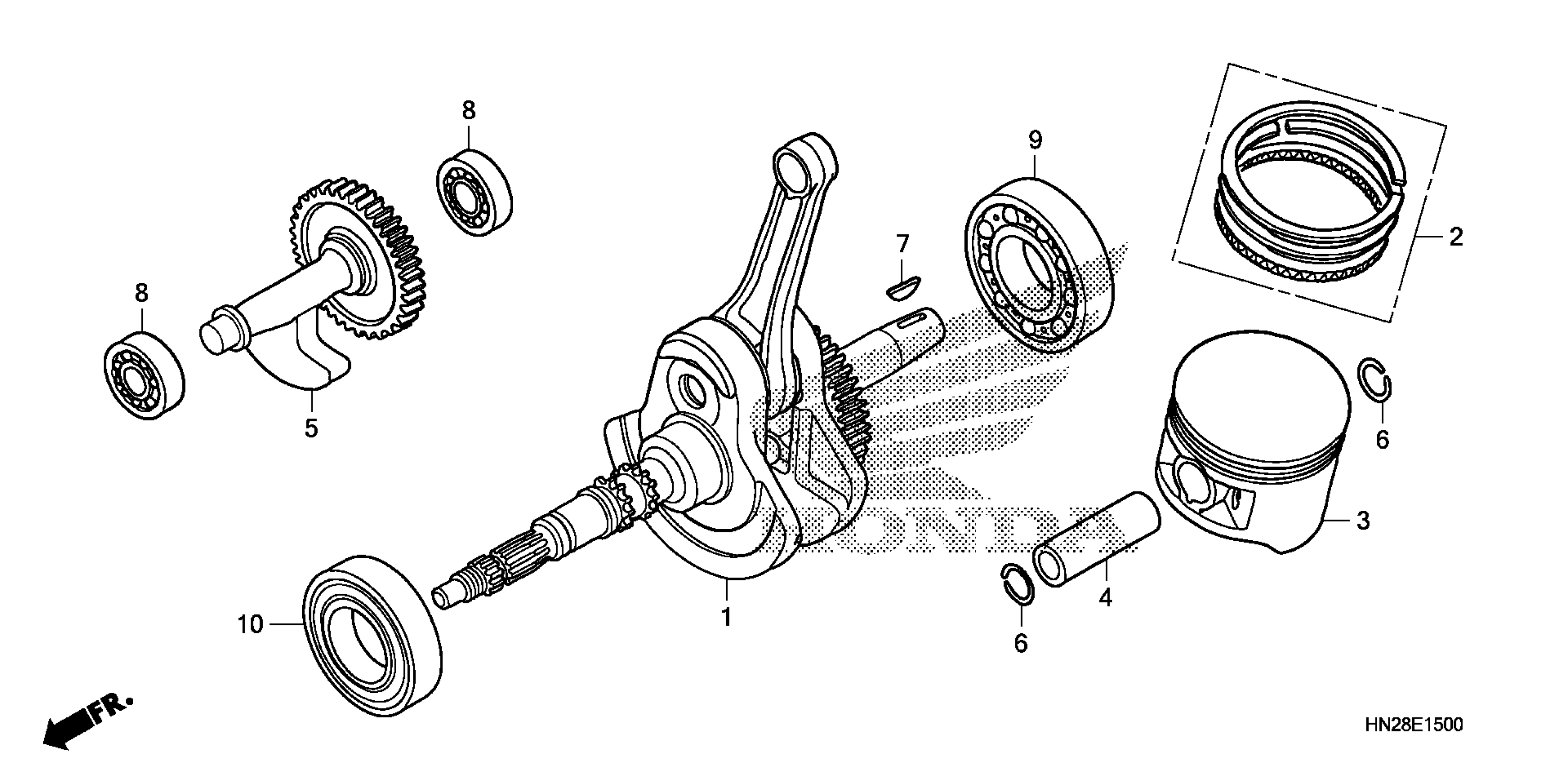

Honda TRX500FAA (09) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-94800001 TO 1HFTE260-94899999 CRANKSHAFT@PISTON Diagram

CRANKSHAFT

13000-HN2-A20

$803.41

RING SET, PISTON (STD)

13010-HN2-003

$51.80

RING SET, PISTON (0.25) | (Optional).

13011-HN2-003

$54.95

RING SET, PISTON (0.50) | (Optional).

13012-HN2-003

$54.95

PISTON (STD)

13101-HN2-010

$103.51

PISTON (0.25) | (Optional).

13102-HN2-010

$111.52

PISTON (0.50) | (Optional).

13103-HN2-010

$111.52

PIN, PISTON

13111-HN2-000

$21.21

SHAFT, BALANCER (36T)

13420-HN2-000

$268.62

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$3.08

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$26.81

BEARING, RADIAL BALL (32X80X17.5)

91004-HN2-003

$50.05

BEARING, RADIAL ROLLER (40X80X18)

91010-HN2-003

$67.46
