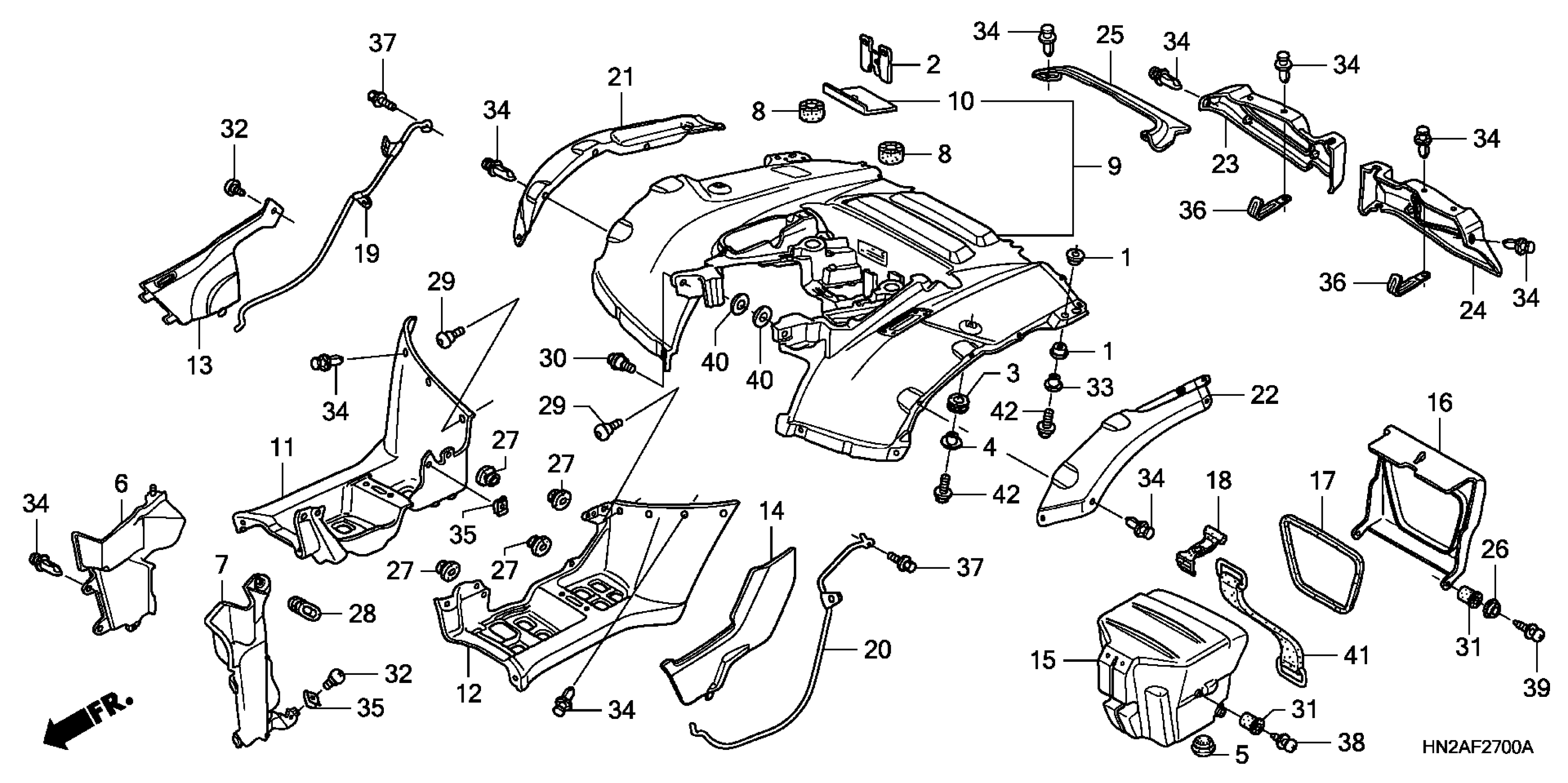

Honda TRX500FAA (06) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-64500001 TO 1HFTE260-64599999 REAR FENDER ('06) Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

Unavailable

2

STAY, FUSE CONNECTOR

50328-HN2-000

$1.41

3

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

5

PLUG, FR. FENDER

61105-KA8-000

$1.34

6

GUIDE, R. ENGINE AIR *NH1* (BLACK)

61890-HN2-A20ZA

$40.54

7

COVER, SHIFT ROD *NH1* (BLACK)

61895-HN2-A20ZA

$9.40

8

CUSHION, SEAT MOUNTING

77207-HA0-000

$6.81

9

FENDER, RR. *Y151R* (STARBURST YELLOW) | Starburst yellow Y151R;

80100-HP0-A00ZC

$177.29

9

FENDER, RR. *NH1* (BLACK) | Black NH1;

80100-HP0-A00ZE

Unavailable

9

FENDER, RR. *G152* (ADVENTURE GREEN) | Adventure green G152;

80100-HP0-A00ZA

$177.29

9

FENDER, RR. *R232* (PATRIOT RED) | Patriot red R232;

80100-HP0-A00ZB

$177.29

10

RUBBER, BATTERY MOUNTING

80102-HP0-A00

$7.63

11

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HP0-A00ZA

$102.53

12

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HP0-A00ZA

$114.44

13

SUB-COVER, R. ENGINE *NH1* (BLACK)

80123-HP0-A00ZA

$88.31

14

SUB-COVER, L. ENGINE *NH1* (BLACK)

80124-HP0-A10ZA

$104.73

15

BOX, UTILITY

80210-HP0-A00

$141.03

16

LID, UTILITY BOX *NH1* (BLACK)

80211-HP0-A00ZA

$14.50

17

SEAL, UTILITY BOX

80212-HP0-A00

$14.35

18

BAND, TOOL BOX

80214-HM5-850

$2.29

19

STAY, R. RR. FENDER

80217-HP0-A00

$123.82

20

STAY, L. RR. FENDER

80218-HP0-A00

$113.77

21

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HP0-A00ZA

$38.48

22

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HP0-A00ZA

$38.48

23

SPLASH GUARD, R. RR. *NH1* (BLACK)

80250-HP0-A00ZA

$56.24

24

SPLASH GUARD, L. RR. *NH1* (BLACK)

80251-HP0-A00ZA

$56.24

25

LID, RR. FENDER *Y151R* (STARBURST YELLOW) | Starburst yellow Y151R;

80311-HP0-A00ZC

$8.68

25

LID, RR. FENDER *NH1* (BLACK) | Black NH1;

80311-HP0-A00ZE

$9.07

25

LID, RR. FENDER *G152* (ADVENTURE GREEN) | Adventure green G152;

80311-HP0-A00ZA

$18.12

25

LID, RR. FENDER *R232* (PATRIOT RED) | Patriot red R232;

80311-HP0-A00ZB

$27.22

26

COLLAR, LOCK SETTING

83119-MG9-000

$5.64

27

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

28

GROMMET A, SIDE COVER

83601-MB0-000

$4.31

29

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.19

30

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

31

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

32

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

33

COLLAR (6.3X13.5)

90503-KE1-000

$4.28

34

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

35

NUT, CLIP (5MM)

90677-KAN-961

$3.89

36

CLIP, WIRE HARNESS

91405-MG1-000

$2.24

37

BOLT-WASHER (6X16)

93404-06016-07

$1.63

38

SCREW-WASHER (5X16)

93891-05016-08

$1.13

39

SCREW-WASHER (5X20)

93894-05020-08

$1.13

40

WASHER, PLAIN (8MM)

94103-08800

$0.87

41

BAND F, BATTERY (155MM)

95012-17001

$6.90

42

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
