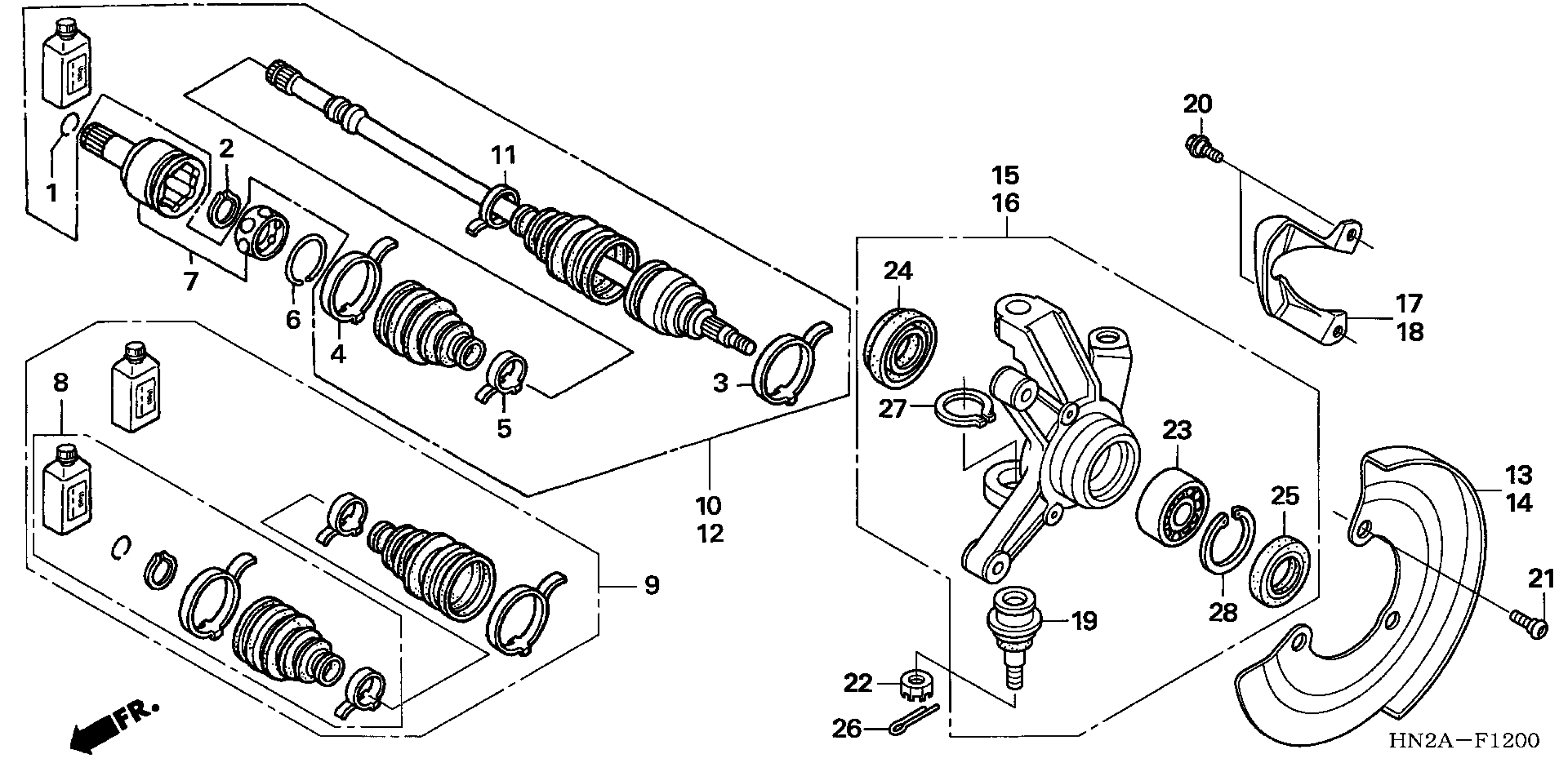

Honda TRX500FAA (06) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-64500001 TO 1HFTE260-64599999 KNUCKLE Diagram

#

Description
Price

1

RING, SNAP

42206-HA7-671

$1.10

2

CIRCLIP

42209-HC5-003

$0.84

3

BAND, OUTBOARD BOOT

42336-SN4-003

$10.61

4

BAND B, INBOARD

44205-HN8-A41

$7.78

5

BAND A, INBOARD

44206-HN8-A41

$7.78

6

RING, SNAP

44207-HN8-A41

$7.36

7

JOINT, INBOARD

44220-HN8-A41

$105.12

8

BOOT SET, INBOARD

44230-HN8-A41

$51.37

9

BOOT SET

44240-HP0-305

$67.80

10

DRIVESHAFT SET, R. FR. This part replaces 44250-HN8-A41.

44250-HN8-A43

$162.24

11

BAND, SHAFT BOOT

44318-SJ7-003

$8.29

12

DRIVESHAFT SET, L. FR. This part replaces 44350-HN8-A41.

44350-HN8-A43

$162.49

13

SPLASH GUARD, R.

45255-HP0-A00

$20.62

14

SPLASH GUARD, L.

45256-HP0-A00

$20.62

15

KNUCKLE ASSY., R. This part replaces 51200-HP0-A00.

51200-HP0-B00

$191.57

15

KNUCKLE ASSY., R.

51200-HP0-B00

$191.57

16

KNUCKLE ASSY., L. This part replaces 51250-HP0-A00.

51250-HP0-B00

Unavailable

16

KNUCKLE ASSY., L.

51250-HP0-B00

Unavailable

17

GUARD, R. FR. OUTBOARD

51325-HN2-B70

$4.65

17

GUARD, R. FR. OUTBOARD This part replaces 51325-HP0-A00.

51325-HN2-B70

$4.65

18

GUARD, L. FR. OUTBOARD

51326-HN2-B70

$4.65

18

GUARD, L. FR. OUTBOARD This part replaces 51326-HP0-A00.

51326-HN2-B70

$4.65

19

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$18.30

19

JOINT A, ARM BALL

51375-HP5-601

$18.30

20

BOLT, FLANGE (6MM)

90111-KT1-780

$13.35

21

BOLT, SOCKET (6X15)

90114-HP0-A00

$1.96

22

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

23

BEARING, ANGULAR BALL (30X54X24)

91051-HA7-651

$49.26

24

DUST SEAL (40X58X7)

91209-HN2-003

$10.86

25

DUST SEAL (38X55X6)

91256-HP0-A01

$7.54

26

PIN, SPLIT (3.0X18)

94201-30180

$0.96

27

CIRCLIP (OUTER) (34MM)

94514-34000

$2.09

28

CIRCLIP, INNER (55MM)

94520-55000

$3.43
