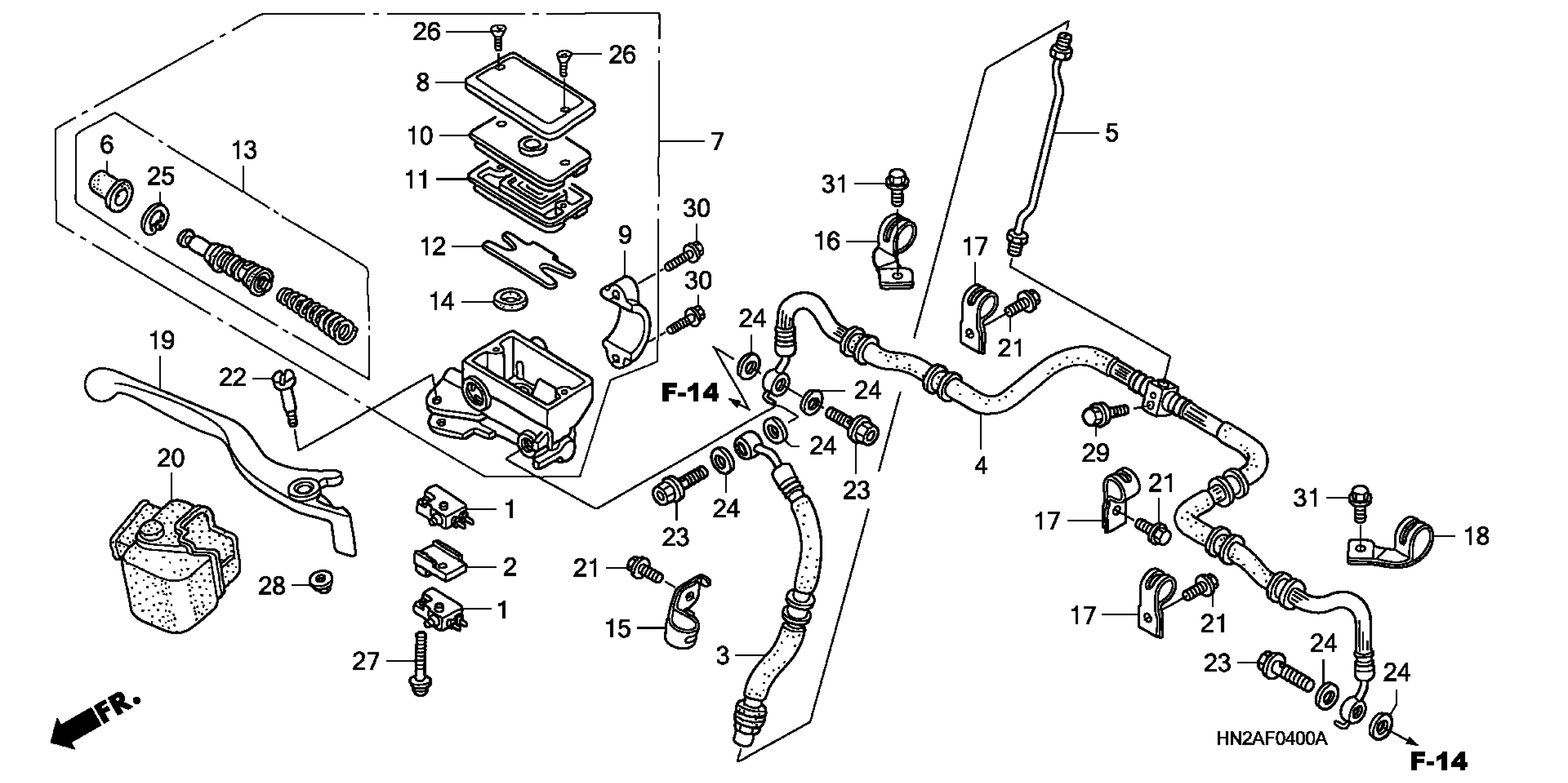

Honda TRX500FAA (06) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-64500001 TO 1HFTE260-64599999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

1

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

2

SPACER, FR. STOP SWITCH

35343-HN2-740

$3.40

3

HOSE A, FR. BRAKE

45126-HN2-B71

$16.50

3

HOSE A, FR. BRAKE This part replaces 45126-HP0-A01.

45126-HN2-B71

$16.50

4

HOSE B, FR. BRAKE

45127-HP0-A01

$144.28

5

PIPE, FR. BRAKE

45128-HN8-000

$3.85

6

BOOT

45504-410-003

$11.17

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-HP0-A01

$66.98

8

CAP, MASTER CYLINDER

45513-MB4-673

$44.25

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$28.72

10

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

11

DIAPHRAGM

45520-MA5-672

$16.64

12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC5-971

$6.21

13

MASTER CYLINDER SET

45530-HN8-006

$12.67

14

SEPARATOR

46666-961-013

$7.46

15

CLAMP B, FR. BRAKE HOSE

51206-HP0-A00

$0.79

16

CLAMP A, R. FR. BRAKE HOSE

51207-HP0-A00

$0.85

17

CLAMP C, FR. BRAKE HOSE

51208-HP0-A00

$0.75

18

CLAMP A, L. FR. BRAKE HOSE

51209-HP0-A00

$0.85

19

LEVER, R. HANDLE

53175-HP0-A00

$20.43

20

COVER, R. HANDLE

53176-HN8-000

$7.01

21

BOLT, FLANGE (6X10)

90107-HC5-000

$2.15

22

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

23

BOLT, OIL (10X22)

90145-MS9-612

$6.99

24

WASHER, OIL BOLT

90545-300-000

$6.56

25

CIRCLIP

90651-MA5-671

$2.38

26

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

26

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

27

SCREW-WASHER (4X30)

93893-04030-07

$0.78

28

NUT, FLANGE (6MM)

94050-06000

$0.60

29

BOLT, FLANGE (6X25)

95701-06025-07

$1.66

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

31

BOLT, FLANGE (6X10)

90107-HC5-000

$2.15
