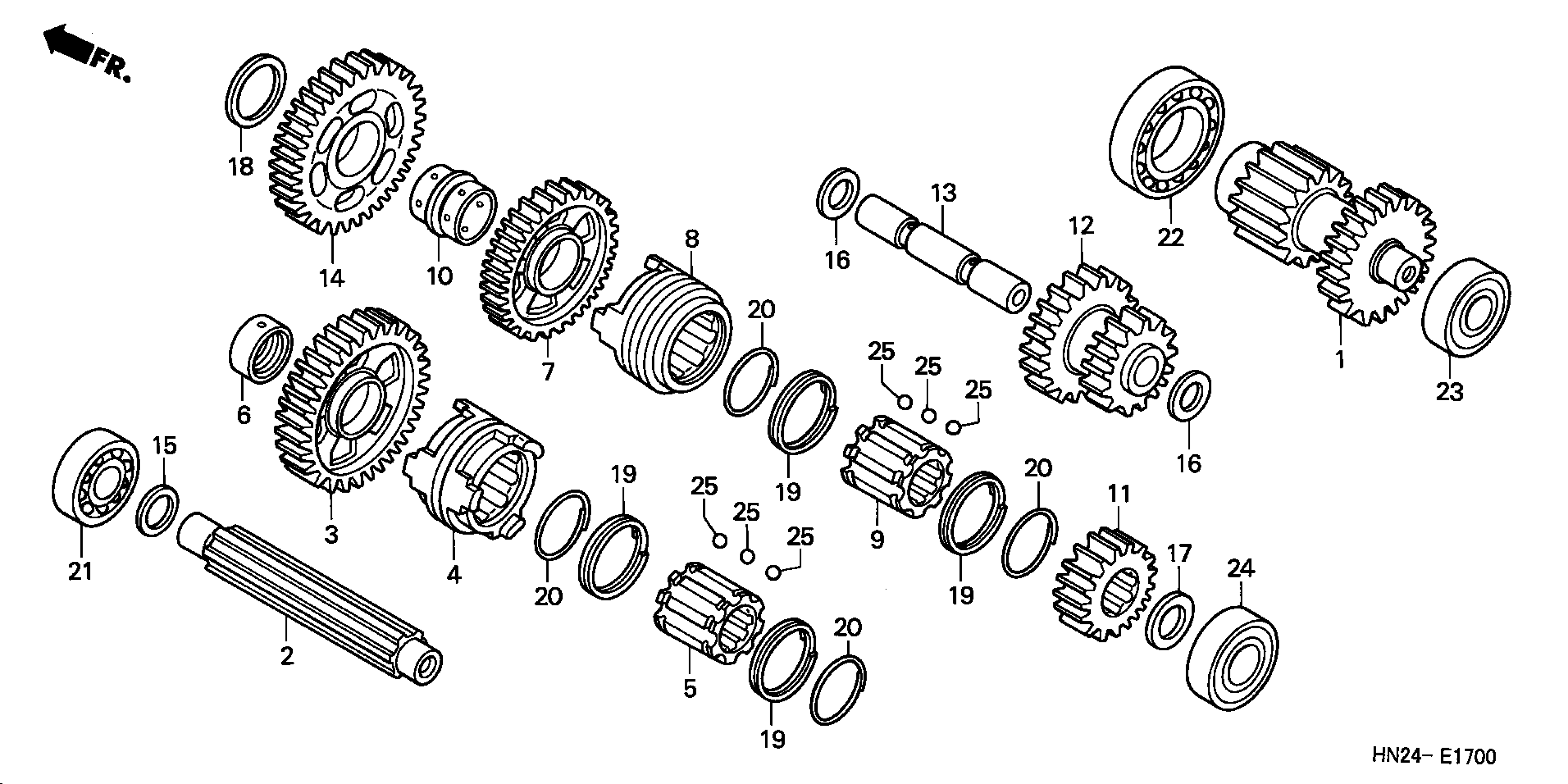

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (18T/24T)

23211-HN2-000

$119.41

2

COUNTERSHAFT

23221-HN2-000

$159.83

3

GEAR, LOW (45T)

23411-HN2-000

Unavailable

4

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HN2-000

Unavailable

5

COLLAR, REVERSE SHIFT (LOW)

23413-HN2-000

$26.99

6

BUSH, SPLINE (25MM)

23414-HA0-000

$22.00

7

GEAR, HIGH (38T)

23431-HN2-000

Unavailable

8

SHIFTER, GEAR (HIGH)

23432-HN2-000

Unavailable

9

COLLAR, SHIFTER (HIGH)

23433-HN2-000

$25.67

10

BUSH, REVERSE GEAR (HIGH)

23454-HN2-000

$17.45

11

GEAR, FINAL DRIVE (20T)

23621-HM7-000

$44.95

12

GEAR, REVERSE IDLE (14T/29T)

23721-HN2-000

$102.62

13

SHAFT, REVERSE IDLE

23731-HN2-000

$13.09

14

GEAR, COUNTERSHAFT REVERSE (28T)

23751-HN2-000

$115.70

15

WASHER, SPECIAL (20MM)

90451-HM7-000

$3.80

16

WASHER (14.2MM)

90451-115-000

$2.80

17

WASHER, THRUST (20MM)

90454-751-000

$4.80

18

WASHER C, THRUST (25MM)

90459-357-000

$3.35

19

RING, DOUBLE COIL (INNER)

90613-969-003

$12.97

20

CLIP (32.5MM)

90616-969-000

$1.99

21

BEARING, SPECIAL RADIAL BALL (6204) (NTN)

91001-GM4-033

$24.91

22

BEARING, RADIAL BALL (6006) (NTN)

91003-HN2-004

$17.81

23

BEARING, RADIAL BALL (6203U SPL.)

91006-HN2-003

$11.41

24

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

91011-HN2-004

$15.55

25

BALL, STEEL (#7) (7/32)

96211-07000

$1.16
