Description

Price

2

JOINT, YOKE

40210-HN7-010

$52.88

3

SPRING, PROPELLER SHAFT

40215-HN0-671

$2.87

4

HITCH, TRAILER

50810-HP0-A00

$35.49

5

SWINGARM ASSY., RR.

52100-HP0-A00

$311.43

6

BOOT, JOINT

52101-HM7-000

$12.28

7

PIPE, R. HOUSING

52210-HP0-A00

$521.09

8

PIPE ASSY., L. HOUSING

52300-HN2-000

$766.57

9

BOLT, R. SWINGARM PIVOT

90121-HN2-000

$13.97

10

BOLT, L. SWINGARM PIVOT

90122-HN2-000

$17.57

11

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

12

CAP, LOCK NUT

90312-HM5-670

$10.21

13

NUT, SWINGARM PIVOT LOCK

90355-469-000

$15.75

14

BEARING, RADIAL BALL (32X58X13UU)

91055-HN5-681

$17.64

15

BEARING SET, TAPER ROLLER (17X40X13.25) (KOYO) This part replaces 06912-HN2-000.

06912-HN2-010

$19.76

16

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$18.27

17

SEAL A, RUBBER

91302-HM7-003

$7.36

18

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.70

19

BAND, AIR CLEANER CONNECTING TUBE (74)

95018-74250

$6.32

20

BAND, AIR CLEANER CONNECTING TUBE (90)

95018-90250

$5.07

21

BOLT, FLANGE (10X20)

95701-10020-00

Unavailable

22

BOLT, FLANGE (10X60)

95701-10060-00

$1.80

23

GREASE (SHELL 6459) This part replaces 52102-HN2-P00.

52102-HN2-P01

$6.38

24

SHAFT ASSY., PROPELLER

40200-HP0-A00

$57.83

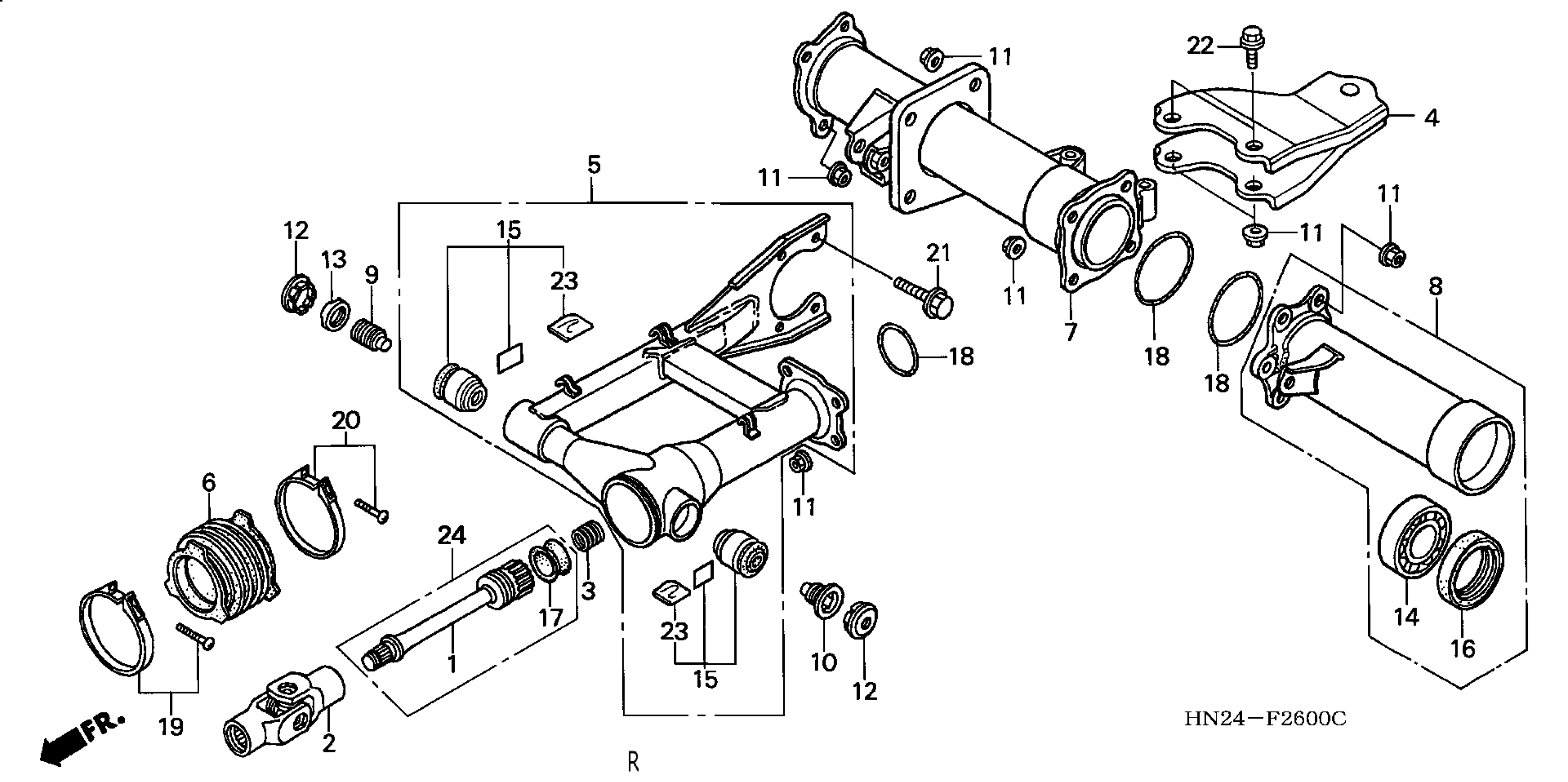

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 SWINGARM Diagram
