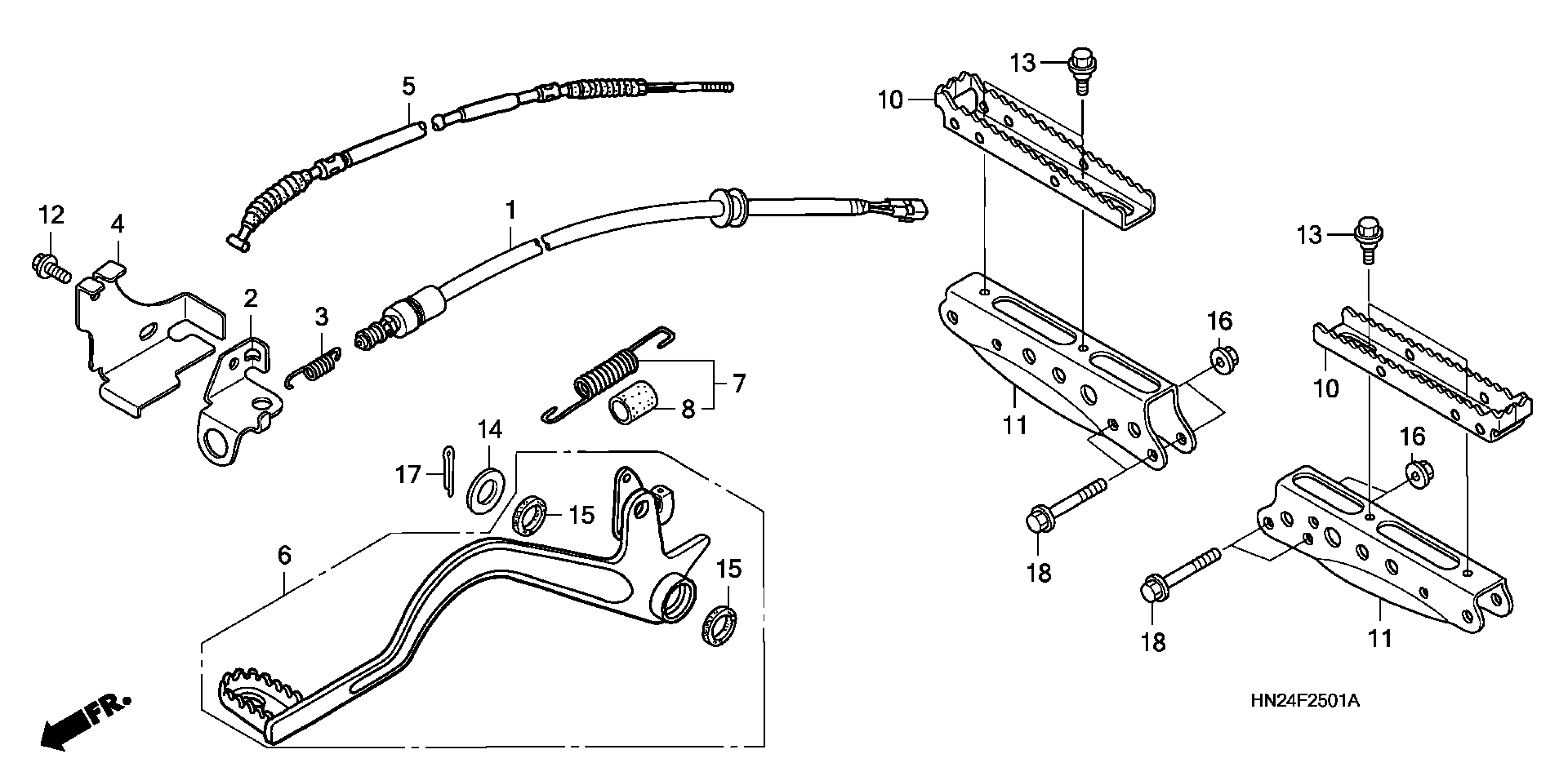

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 STEP (TRX500FA/FGA'05) Diagram

SWITCH ASSY., RR. STOP

35350-HP0-A00

$54.38

STAY, STOP SWITCH

35351-HP0-A00

$7.20

SPRING, STOP SWITCH

35357-HP0-A00

$2.33

GUARD, RR. STOP SWITCH

35359-HP0-A00

$82.29

CABLE, FOOT BRAKE

43470-HP0-A00

$10.41

PEDAL, BRAKE

46500-HP0-A00

$43.93

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$13.76

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$1.88

STEP

50610-HN2-000

$32.67

BRACKET, STEP

50611-HP0-A00

$42.75

BOLT, FLANGE (6X14)

90105-MCE-750

$1.30

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

WASHER (17.5MM)

90512-303-000

$1.61

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

NUT, FLANGE (8MM)

94050-08000

$0.86

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

BOLT, FLANGE (8X45)

95801-08045-00

$1.59
