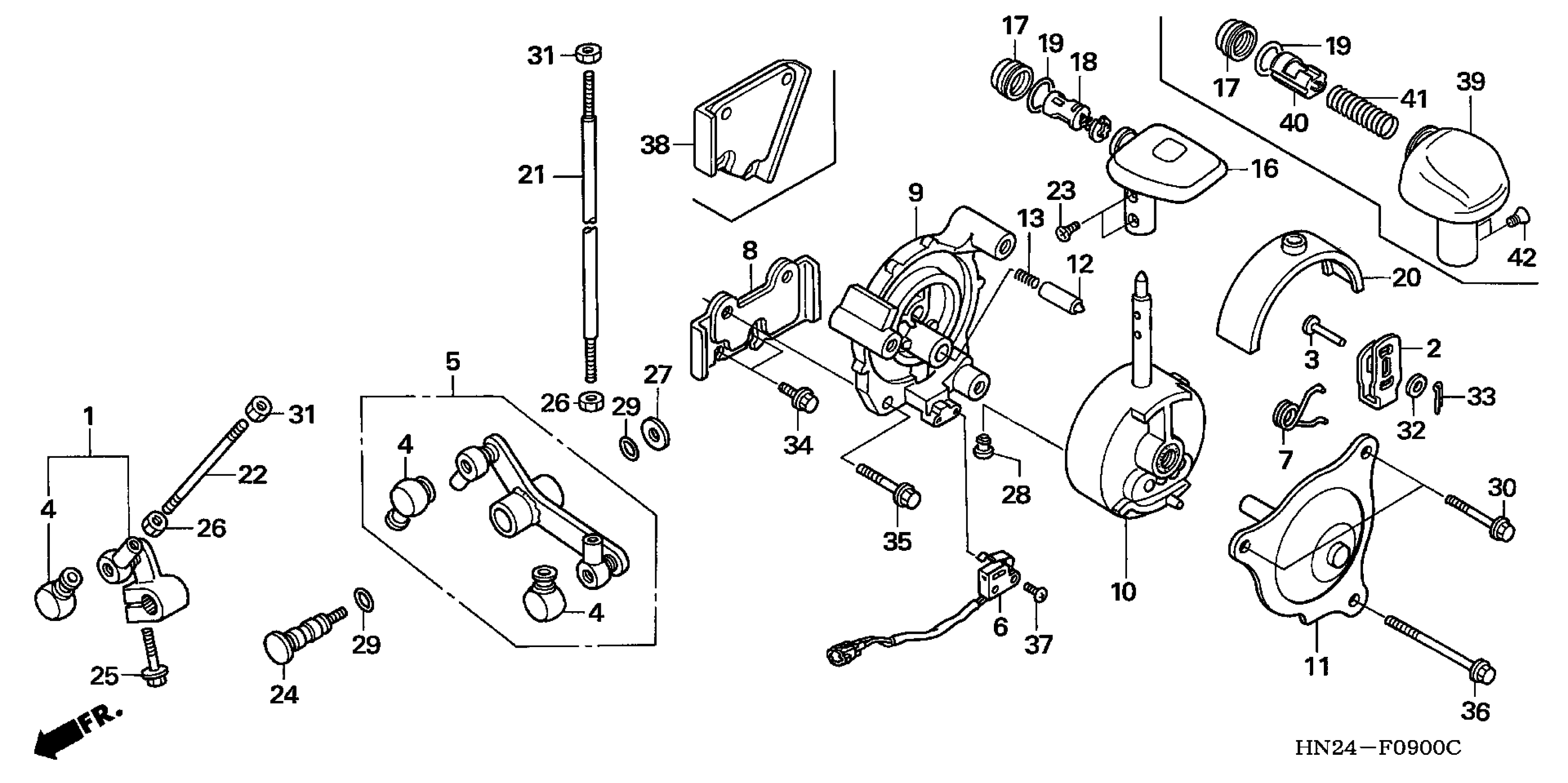

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 SELECT LEVER Diagram

#

Description
Price

1

ARM, GEARSHIFT

24712-HN2-000

$20.20

2

GUIDE, SHIFT SPRING

24722-HN2-000

$9.26

3

SHAFT, SLIDE

24723-HN2-000

Unavailable

4

COVER, DUST

24724-422-000

$6.21

5

ARM, CHANGE MIDDLE

24732-HN2-000

$33.49

6

SWITCH ASSY., REVERSE

35370-HN2-A21

$41.88

7

SPRING, SHIFT RETURN

50617-HN2-000

$5.14

9

BRACKET, SELECT LEVER

54201-HN2-003

Unavailable

10

LEVER SUB-ASSY., SELECT

54202-HN2-A21

$55.49

11

COVER, SELECT LEVER

54207-HN2-003

$17.33

12

PLUNGER, DETENT

54208-HN2-003

$8.07

13

SPRING, DETENT

54209-HN2-003

$1.93

17

BOOT, PUSH KNOB

54214-HN2-003

$3.48

19

CLIP, PUSH KNOB BOOT

54216-HN2-003

$1.10

20

COVER, SHIFT LEVER

54226-HN2-000

Unavailable

21

BOLT, TIE ROD

90065-HN2-A20

$7.77

22

BOLT, TIE ROD

90065-MW3-A90

$3.80

24

BOLT, CHANGE PIVOT

90115-HN2-010

$8.71

25

BOLT, FLANGE (6X20)

90118-968-000

$3.93

26

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.70

27

WASHER, PLAIN (8MM)

90501-HN2-000

$2.81

28

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.45

29

O-RING (9.4X2.4)

91304-KK3-830

$2.20

30

BOLT-WASHER (6X20)

93401-06020-08

$1.70

31

NUT, HEX. (6MM)

94002-06020-0S

$1.00

32

WASHER, PLAIN (6MM)

94103-06800

$0.71

33

PIN, SPLIT (2.0)

94201-20101

$0.67

34

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

35

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

36

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

37

SCREW-WASHER (3X14)

90101-HN2-000

Unavailable

38

STAY, SHIFT

54004-HN2-A20

$7.01

39

KNOB, SELECT

54213-HN2-A20

$24.25

40

KNOB, PUSH This part replaces 54215-HN2-A20.

54215-HN2-A21

$3.67

40

KNOB, PUSH

54215-HN2-A21

$3.67

41

SPRING, PUSH KNOB

54217-HN2-A20

$1.41

42

SCREW, OVAL (5X8)

93700-05008-0G

$0.83
