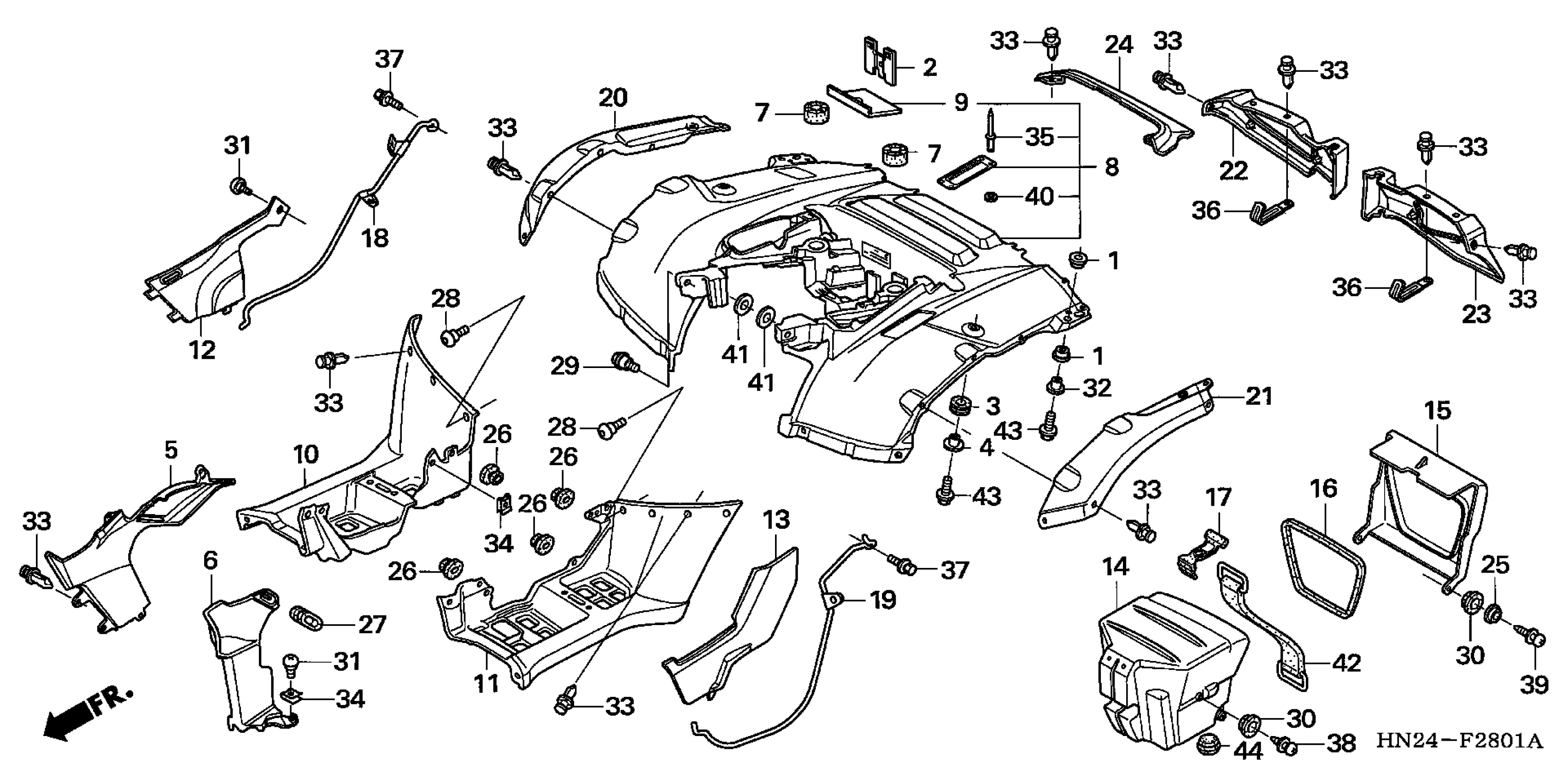

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 REAR FENDER (TRX500FA/FGA'05) Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

Unavailable

2

STAY, FUSE CONNECTOR

50328-HN2-000

$1.41

3

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.37

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

5

GUIDE, R. ENGINE AIR *NH1* (BLACK)

61890-HN2-A20ZA

$40.54

6

COVER, SHIFT ROD *NH1* (BLACK)

61895-HN2-A20ZA

$9.40

7

CUSHION, SEAT MOUNTING

77207-HA0-000

$6.81

8

FENDER, RR. *G152* (ADVENTURE GREEN)

80100-HP0-A00ZA

$177.29

8

FENDER, RR. *R232* (PATRIOT RED)

80100-HP0-A00ZB

$177.29

8

FENDER, RR. *Y151R* (STARBURST YELLOW)

80100-HP0-A00ZC

$177.29

9

RUBBER, BATTERY MOUNTING

80102-HP0-A00

$7.63

10

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HP0-A00ZA

$102.53

11

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HP0-A00ZA

$114.44

12

SUB-COVER, R. ENGINE *NH1* (BLACK)

80123-HP0-A00ZA

$88.31

13

SUB-COVER, L. ENGINE *NH1* (BLACK)

80124-HP0-A10ZA

$104.73

14

BOX, UTILITY

80210-HP0-A00

$141.03

15

LID, UTILITY BOX *NH1* (BLACK)

80211-HP0-A00ZA

$14.50

16

SEAL, UTILITY BOX

80212-HP0-A00

$14.35

17

BAND, TOOL BOX

80214-HM5-850

$2.29

18

STAY, R. RR. FENDER

80217-HP0-A00

$123.82

19

STAY, L. RR. FENDER

80218-HP0-A00

$113.77

20

SPLASH GUARD, R. RR. SIDE *NH1* (BLACK)

80220-HP0-A00ZA

$38.48

21

SPLASH GUARD, L. RR. SIDE *NH1* (BLACK)

80221-HP0-A00ZA

$38.48

22

SPLASH GUARD, R. RR. *NH1* (BLACK)

80250-HP0-A00ZA

$56.24

23

SPLASH GUARD, L. RR. *NH1* (BLACK)

80251-HP0-A00ZA

$56.24

24

LID, RR. FENDER *G152* (ADVENTURE GREEN)

80311-HP0-A00ZA

$18.12

24

LID, RR. FENDER *R232* (PATRIOT RED)

80311-HP0-A00ZB

$27.22

24

LID, RR. FENDER *Y151R* (STARBURST YELLOW)

80311-HP0-A00ZC

$8.68

25

COLLAR, LOCK SETTING

83119-MG9-000

$5.64

26

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

27

GROMMET A, SIDE COVER

83601-MB0-000

$4.31

28

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.19

29

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

30

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

31

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

32

COLLAR (6.3X13.5)

90503-KE1-000

$4.28

33

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

34

NUT, CLIP (5MM)

90677-KAN-961

$3.89

35

RIVET, POP (3.2)

90841-HF1-910

$0.12

36

CLIP, WIRE HARNESS

91405-MG1-000

$2.24

37

BOLT-WASHER (6X16)

93404-06016-07

$1.63

38

SCREW-WASHER (5X16)

93891-05016-08

$1.13

39

SCREW-WASHER (5X20)

93894-05020-08

$1.13

40

WASHER, PLAIN (3MM)

94103-03800

$0.79

41

WASHER, PLAIN (8MM)

94103-08800

$0.87

42

BAND F, BATTERY (155MM)

95012-17001

$6.90

43

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

44

PLUG, FR. FENDER

61105-KA8-000

$1.34
