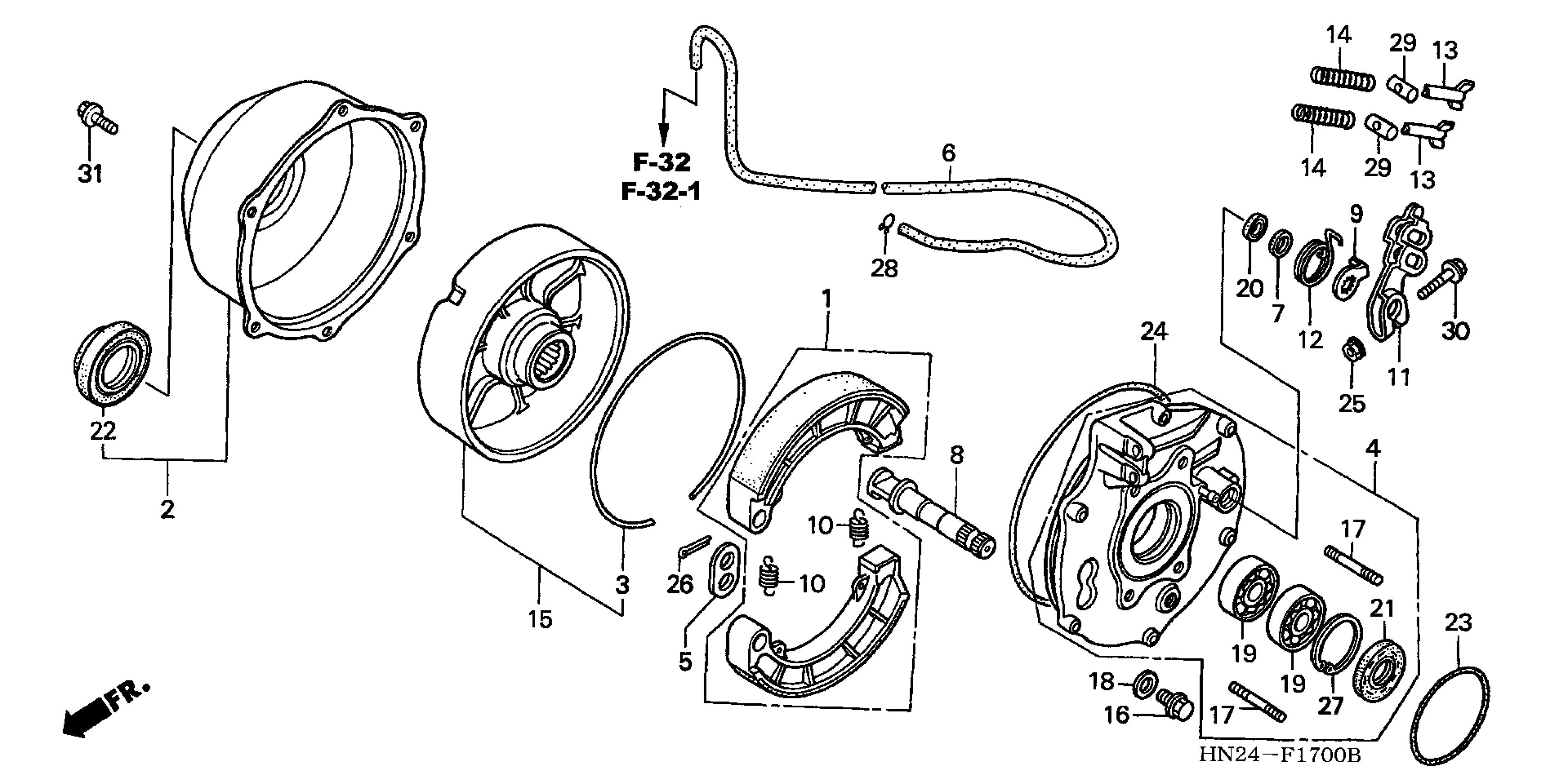

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 REAR BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK)

06430-HN2-000

$68.20

1

SHOE SET, BRAKE (JB)

06430-MCL-700

$53.56

2

COVER ASSY., DRUM

40520-HP0-A00

$43.54

3

RING, DAMPER

42624-HN2-000

$10.99

4

PANEL SET, RR. BRAKE

43010-HN2-000

$316.79

5

WASHER, ANCHOR PIN

43102-319-000

$5.91

6

TUBE, BREATHER (3.5X1700)

43132-HP0-A00

$17.46

7

DUST SEAL, BRAKE CAM

43134-300-000

$2.03

8

CAM, RR. BRAKE

43141-HA7-670

$32.60

9

INDICATOR, BRAKE

43145-HA7-670

$5.39

10

SPRING, RR. BRAKE SHOE

43151-346-000

$5.64

11

ARM, RR. BRAKE

43410-HN2-000

$20.63

12

SPRING, RR. BRAKE ARM

43415-HM7-000

$6.86

13

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.75

14

SPRING, RR. BRAKE ROD (NA USE ALT:95014-73100)

43467-HA0-000

Unavailable

15

DRUM ASSY., RR. BRAKE

43620-HN2-000

$340.49

16

BOLT, SEALING (8MM)

90109-371-000

$2.50

17

BOLT, STUD (10X25)

90151-HA7-670

$5.95

18

GASKET (8MM)

90471-580-000

$2.80

19

BEARING, RADIAL BALL (28X58X16)

91057-HA0-681

Unavailable

19

BEARING, RADIAL BALL (28X58X16) This part replaces 91057-HA8-004.

91057-HA0-681

Unavailable

20

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

21

OIL SEAL (34X58X6) (ARAI)

91252-HM7-003

$13.62

22

DUST SEAL (41X76X19) (ARAI)

91253-HM7-003

$16.47

23

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.74

24

O-RING (199X3.1)

91355-HN2-003

$12.13

25

NUT, FLANGE (8MM)

94050-08000

$0.87

26

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.96

26

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.96

26

PIN, SPLIT (2.5X30)

94201-25300

$0.96

27

CIRCLIP (INNER) (58MM)

94520-58000

$3.71

28

CLIP, TUBE (C6.5)

95002-35000

$0.69

29

JOINT B, BRAKE ARM

95015-32001

$0.87

30

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

31

BOLT, FLANGE (6X16)

96001-06016-07

$0.97
