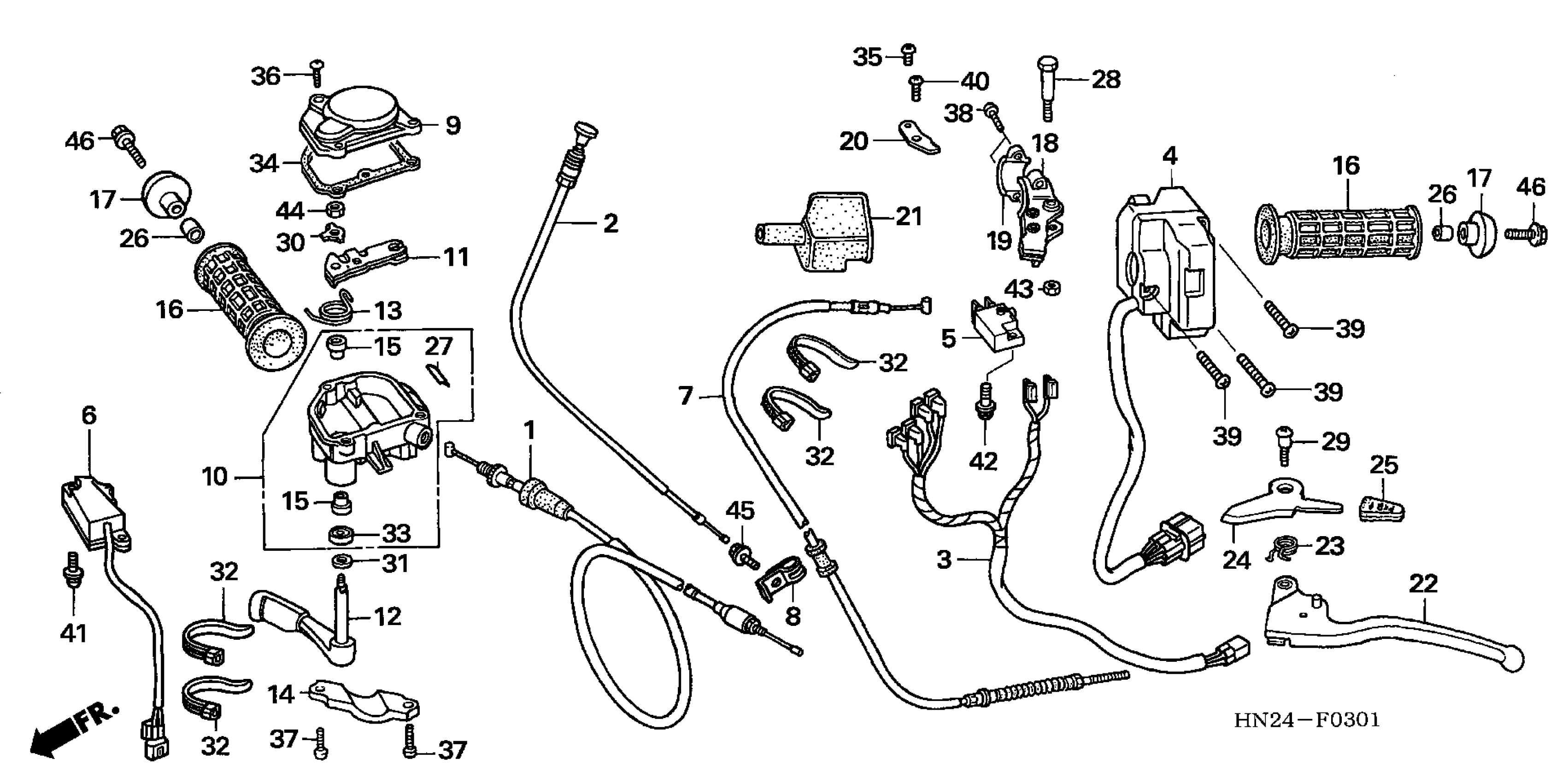

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 HANDLE LEVERS + SWITCHES + CABLES (TRX500FA/FGA'05) Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP0-A00

$32.48

2

CABLE, CHOKE

17950-HP0-A00

$8.47

3

SUB-WIRE, FR. STOP SWITCH

32105-HN2-A20

$24.24

4

SWITCH, L. HANDLE This part replaces 35200-HP0-A10.

35200-HP0-A11

$96.84

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

6

SWITCH ASSY., SELECT (2WD/4WD)

35400-HP0-A00

$42.69

7

CABLE, HAND BRAKE

43460-HP0-A00

$16.08

8

CLAMP, BRAKE CABLE

50352-HN2-000

$0.90

9

COVER, THROTTLE CASE

53141-HP1-000

$33.58

10

CASE ASSY., THROTTLE LEVER

53143-HN0-305

$43.94

11

ARM, THROTTLE

53144-HA0-010

$7.36

12

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

12

LEVER, THROTTLE

53145-HA0-770

$21.43

13

SPRING, THROTTLE RETURN

53146-HM8-000

$2.95

14

HOLDER, THROTTLE CASE

53147-HN0-670

$12.82

15

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.64

16

GRIP, HANDLE

53165-958-010

$12.28

17

GUARD, HANDLE END

53167-958-680

$6.11

18

BRACKET, BRAKE LEVER

53172-HN8-000

$26.39

19

HOLDER, LEVER BRACKET

53173-376-000

$10.04

20

STAY, PARKING BRAKE STOPPER

53174-HN8-000

$5.23

21

COVER, L. HANDLE LEVER

53177-HN8-000

$3.16

22

LEVER, L. HANDLEBAR This part replaces 53178-HN8-000.

53178-HN8-010

$17.70

22

LEVER, L. HANDLEBAR

53178-HN8-010

$17.70

23

SPRING, PARKING BRAKE LEVER

53191-HN8-000

$2.38

24

LEVER, PARKING BRAKE LOCK

53192-HN8-000

$6.81

25

CAP, PARKING LEVER

53193-HA0-770

$5.87

26

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.80

27

MARK, SELECT (2WD/4WD)

87516-HN0-670

$13.76

28

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.50

29

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$3.90

30

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

31

WASHER (9X20)

90504-HA0-000

$2.10

32

BAND, WIRE HARNESS

90651-MA6-720

$3.63

33

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.74

33

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.74

34

GASKET, THROTTLE CASE

91532-HA0-020

$5.87

35

SCREW, PAN (4X8)

93500-04008-0G

$0.84

36

SCREW, PAN (4X16)

93500-04016-0G

$0.76

37

SCREW, PAN (5X14)

93500-05014-0G

$3.40

38

SCREW, PAN (5X18)

93500-05018-0G

$0.43

39

SCREW, PAN (5X28)

93500-05028-0G

$0.63

40

SCREW, PAN (6X16)

93500-06016-0G

$1.19

41

SCREW-WASHER (4X12)

93891-04012-07

$1.06

42

SCREW-WASHER (4X16)

93893-04016-07

$1.24

43

NUT, HEX. (6MM)

94001-06070-0S

$1.21

44

NUT, HEX. (6MM)

94002-06000-0S

$1.21

45

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

46

BOLT, FLANGE (6X25)

95701-06025-07

$1.66
