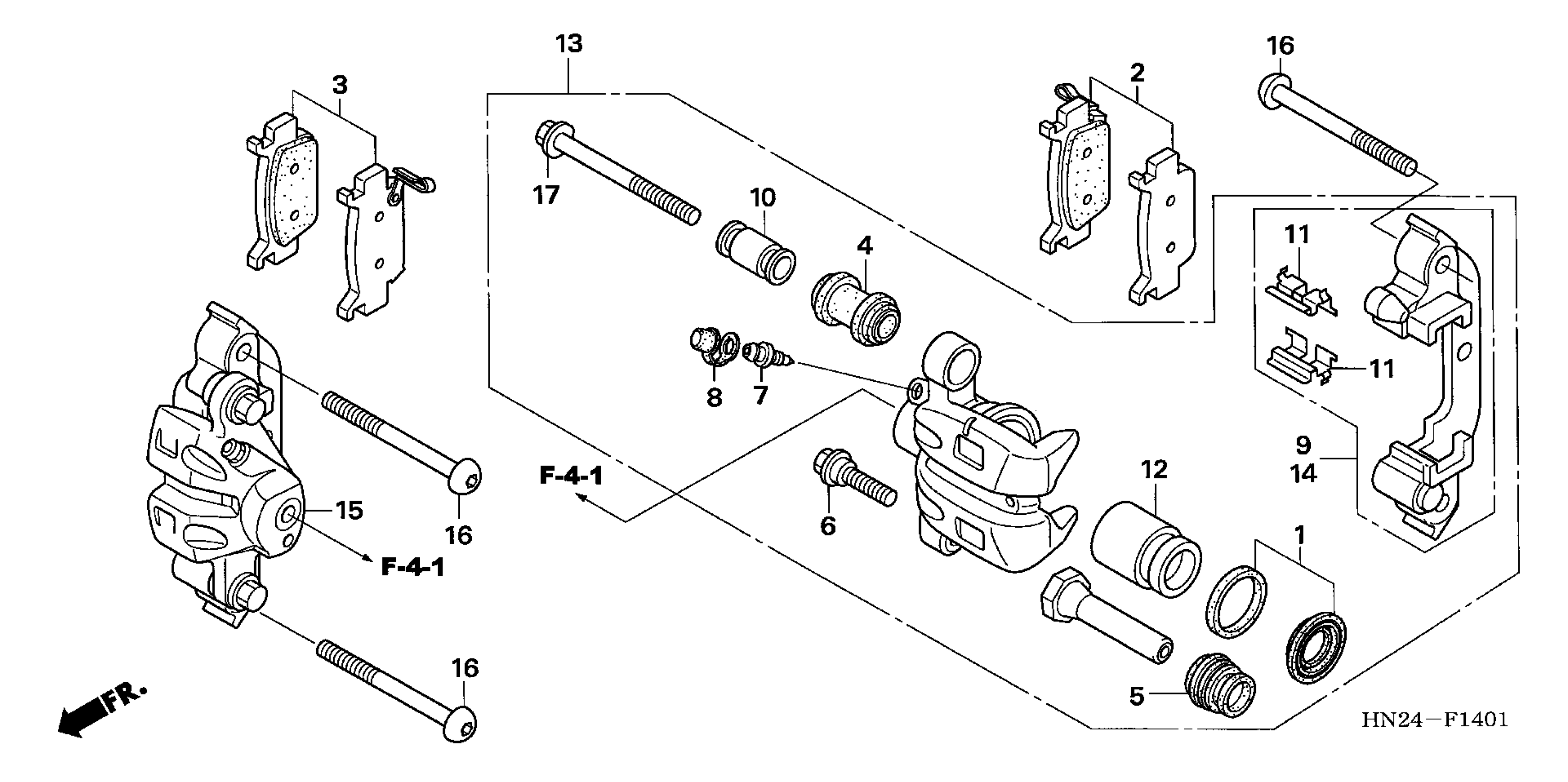

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 FRONT CALIPER Diagram

SEAL SET, PISTON

06450-HP0-A01

$9.13

PAD SET, L. FR. This part replaces 06451-HP0-A01.

06451-HP0-A02

$48.76

PAD SET, L. FR.

06451-HP0-A02

$48.76

PAD SET, R. FR. This part replaces 06452-HP0-A01.

06452-HP0-A02

$47.52

PAD SET, R. FR.

06452-HP0-A02

$47.52

BOOT, SLEEVE

43132-KT7-761

$8.52

COVER, DUST

43234-S04-003

$5.62

BOLT, FLANGE (8X26)

43240-S6M-J51

$4.84

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

BRACKET, L. FR.

45110-HP0-A01

Unavailable

SLEEVE

45111-MA3-006

$13.38

RETAINER, FR. BRACKET

45112-HP0-A01

$6.31

PISTON (34)

45117-HP0-A01

$37.23

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-HP0-A01

$249.92

BRACKET, R. FR.

45210-HP0-A01

Unavailable

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-HP0-A01

Unavailable

BOLT, SOCKET (10X50)

90102-HP0-A00

$4.17

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
