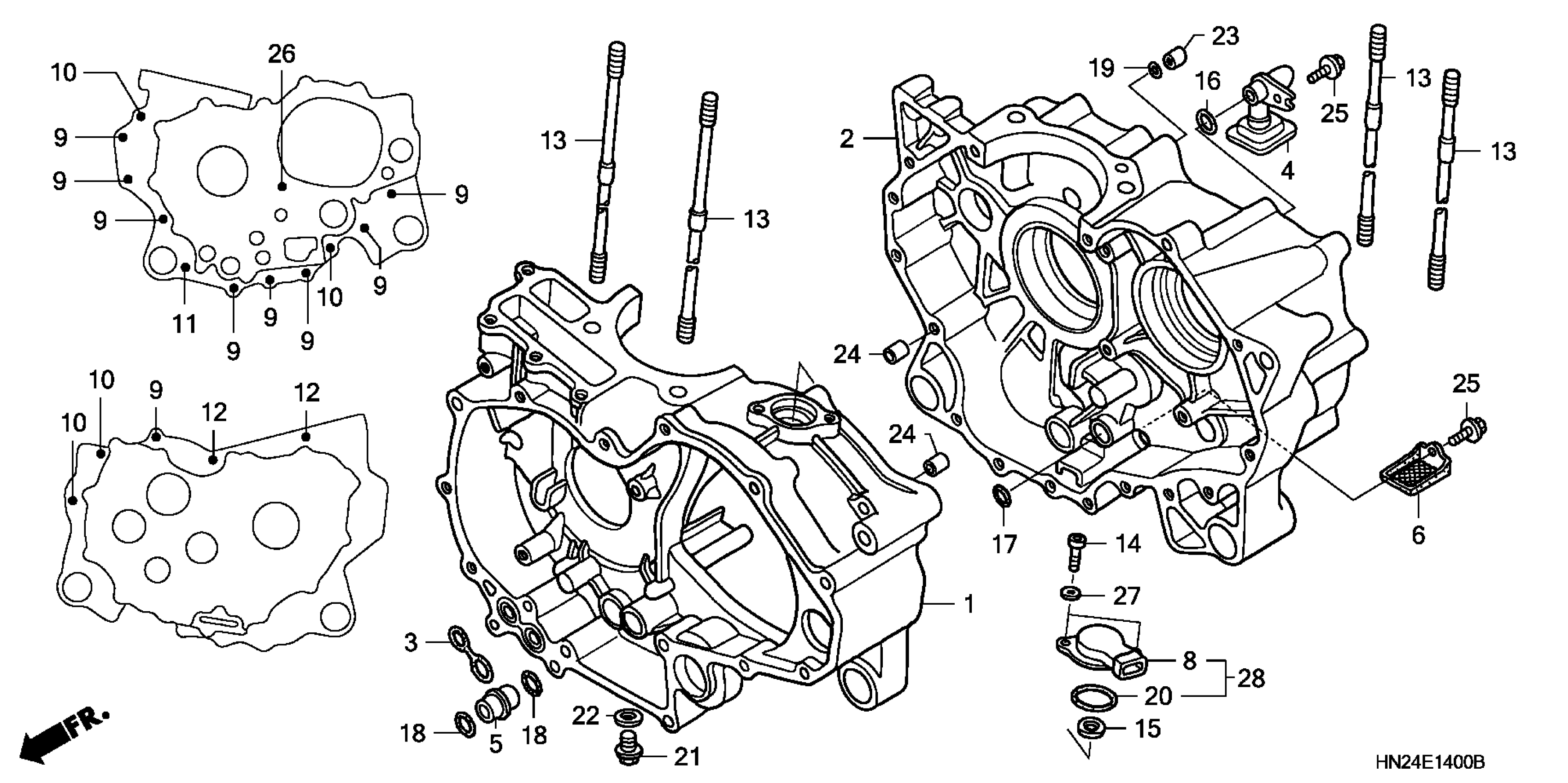

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, FR.

11100-HN2-000

$579.43

2

CRANKCASE, RR.

11200-HN2-000

$649.28

3

SEAL, RUBBER

15152-HN2-000

$4.85

4

STRAINER, OIL

15153-HN2-000

$35.87

5

JOINT, SPECIAL

15235-HN2-000

$5.75

6

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$11.02

8

SENSOR KIT, ANGLE

06380-HN2-305

$121.49

8

SENSOR KIT, ANGLE This part replaces 38800-HN2-015.

06380-HN2-305

$121.49

9

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

10

BOLT, FLANGE (6X55) (NSHF)

90004-GHB-740

$5.36

11

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

12

BOLT, FLANGE (6X80) (NSHF)

90004-GHB-790

$5.54

13

BOLT, STUD (10X252.5)

90032-HN2-A00

$11.95

14

BOLT, SOCKET (5X14)

90049-KBH-000

$1.51

15

OIL SEAL (6X13X5) (ARAI)

91202-GF9-003

$3.41

16

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.45

16

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.45

16

O-RING (9.8X1.9)

91305-PE2-003

$2.45

17

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

18

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

18

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

19

O-RING (5.5X1.4)

91319-ME5-003

$1.85

20

O-RING (25X2.4) (NOK)

91321-P0X-003

$3.83

21

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

PIN, DOWEL (6X10)

94301-06100

$2.25

24

PIN, DOWEL (8X14)

94301-08140

$2.25

25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

26

BOLT, FLANGE (6X80)

95701-06080-08

$2.34

27

WASHER, PLAIN (5MM)

94101-05000

$1.49

28

SENSOR KIT, ANGLE

06380-HN2-305

$121.49
