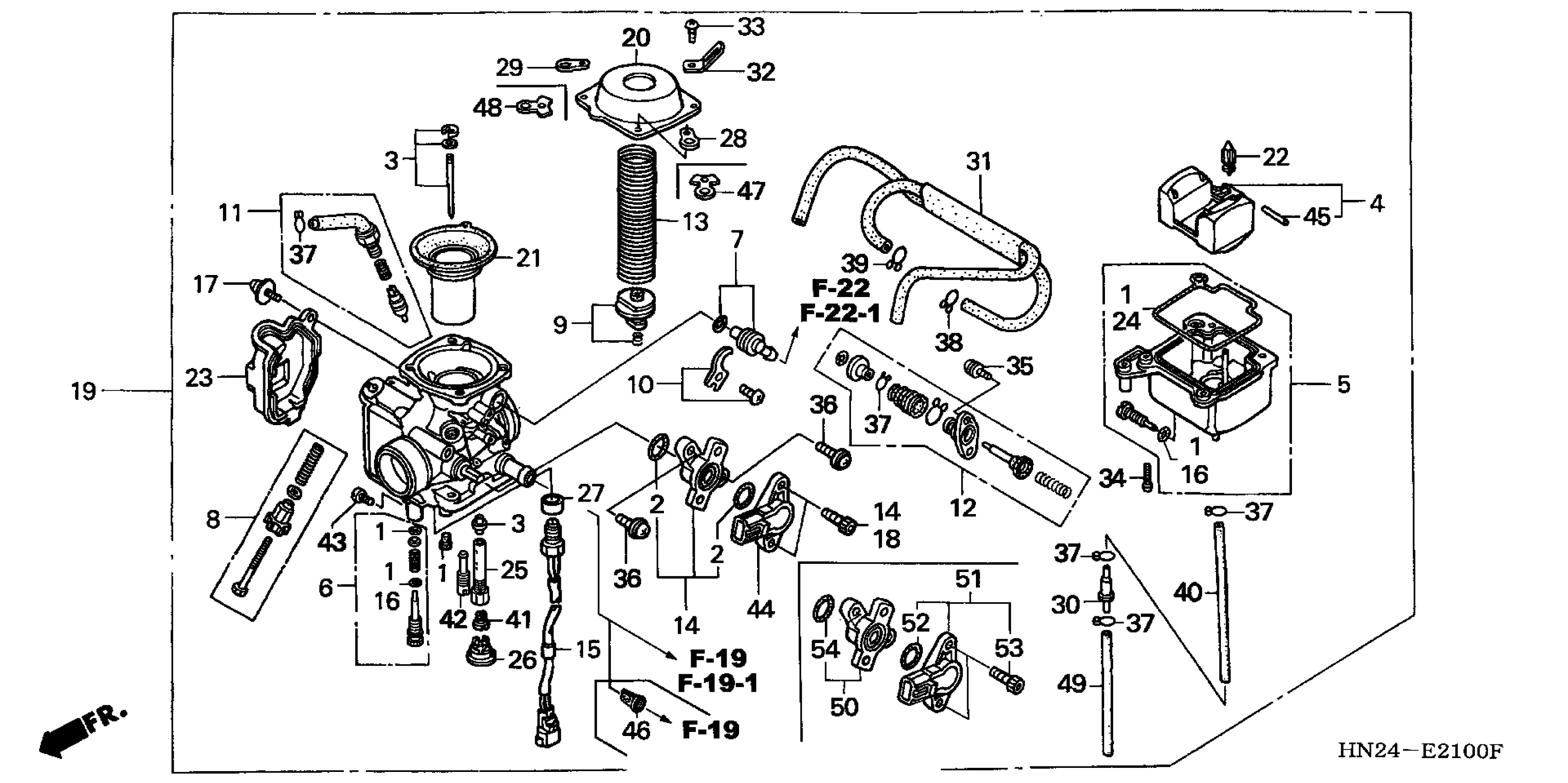

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HN7-003

$17.46

2

GASKET SET | Use up to Engine SN VE6AE A

16010-HN2-003

$6.19

3

NEEDLE SET, JET | Use up to Engine SN VE6AE A

16012-HN2-A21

$28.05

4

FLOAT SET

16013-HN8-003

$39.34

5

CHAMBER SET, FLOAT

16015-HP0-A01

$40.14

6

SCREW SET

16016-HN2-A21

$20.64

7

JOINT SET

16026-MR1-004

$41.04

8

SCREW SET

16028-HP0-A01

$22.05

9

PLATE SET, VALVE

16037-HN2-003

$19.18

10

PLATE SET, STAY

16038-HN8-003

$7.00

11

VALVE, STARTER

16046-HN2-003

$55.48

12

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$87.67

13

SPRING, COMPRESSION COIL

16050-HN2-A21

$10.59

14

SPACER SET, THROTTLE SENSOR | Use up to Engine SN VE6AE A

16060-HN2-003

$24.48

15

HEATER ASSY.

16070-HN2-A21

$71.93

16

O-RING (1.3X4.3)

16075-GHB-640

$2.92

17

SCREW-WASHER

16080-HC0-003

$4.15

19

CARBURETOR ASSY This part replaces 16100-HN2-A21.

16100-HN2-A25

$337.15

19

CARBURETOR ASSY This part replaces 16100-HN2-A22.

16100-HN2-A25

$337.15

20

TOP

16107-HN2-003

$35.69

21

PISTON, VACUUM

16111-HN2-003

$119.37

22

VALVE, FLOAT

16155-HN7-003

$28.87

23

COVER, BODY

16157-HN8-003

$27.51

24

GASKET, FLOAT CHAMBER

16163-MEA-671

$23.17

25

HOLDER, NEEDLE JET

16165-HN2-003

$32.22

26

HOLDER, JET

16168-HC4-003

$12.24

27

COLLAR, SETTING

16172-KEB-610

$3.62

30

VALVE, ONE-WAY

16180-HC4-003

$18.02

31

TUBE, AIR VENT

16196-HP0-A01

$8.67

32

CLIP, PLATE

17191-MT2-740

$3.70

33

SCREW, PAN (4X8)

93500-04008-0H

$1.49

33

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

34

SCREW, PAN (4X14)

93500-04014-0H

$1.49

34

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

35

SCREW-WASHER (4X12)

93892-04012-08

$1.49

35

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

36

SCREW-WASHER (5X14)

93892-05014-08

$1.49

36

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

37

CLIP, TUBE (B7)

95002-02079

$1.49

38

CLIP, TUBE (B8)

95002-02089

$1.49

39

CLIP, TUBE (B6.5)

95002-02659

$1.49

40

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-50M

$13.72

41

JET, MAIN (#158) | (Optional).

99101-HN2-1580

$11.44

41

JET, MAIN (#162)

99101-HP0-1620

$7.71

42

JET, SLOW (#45) This part replaces 99104-HN2-0450.

99104-KPF-0450

$11.86

43

JET (#85)

99112-HN2-0850

$16.95

44

SENSOR ASSY,THROT | Use up to Engine SN VE6AE A This part replaces 37890-HN2-006.

37890-H09-J02

$141.11

45

PIN, ARM

16152-HN8-003

$4.08

46

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.82

47

BINDER

16178-HP0-A01

$2.25

48

BINDER

16179-HP0-A01

$2.25

49

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-50M

$13.72

50

SPACER SET, THROTTLE SENSOR | Use from Engine SN VE6AE B

16060-HN2-A21

$32.85

51

CARBURETOR ASSY | Use from Engine SN VE6AE B This part replaces 16061-HP0-A01.

16061-HP0-A02

$210.08

52

O-RING | Use from Engine SN VE6AE B

16075-HN2-A21

$3.10

53

BOLT, BREAK HEAD | Use from Engine SN VE6AE B

16083-HP0-A01

$5.26

54

O-RING (14.8X1.9) | Use from Engine SN VE6AE B

91304-PT0-000

$3.83
