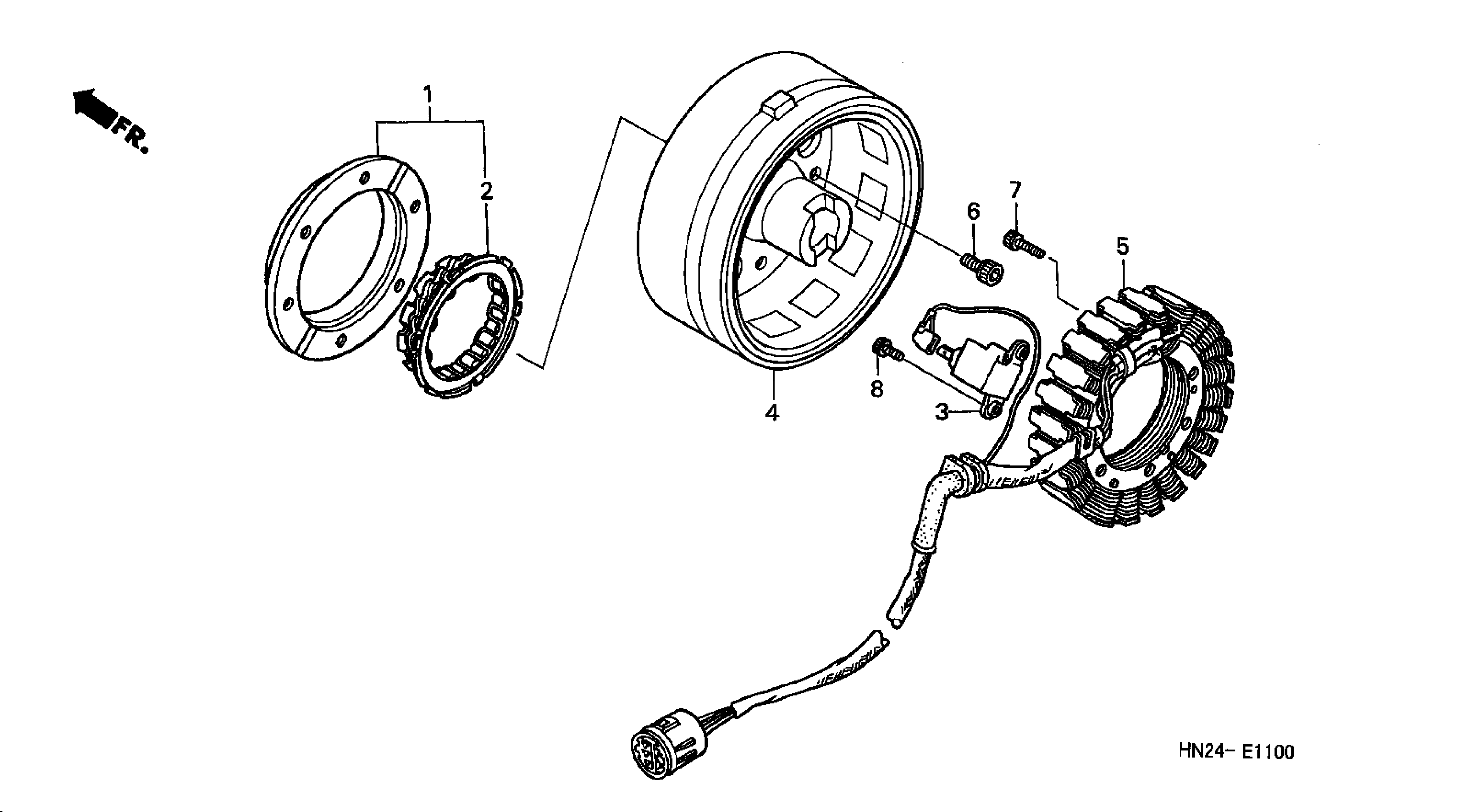

Honda TRX500FAA (05) FOURTRAX FOREMAN RUBICON, USA, VIN# 1HFTE260-54400001 ALTERNATOR Diagram

#

Description

Price

1

CLUTCH OUTER, STARTING

28125-HN2-003

$244.59

2

CLUTCH, ONE-WAY

28126-HN0-A01

$71.11

3

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$36.58

4

FLYWHEEL

31110-HN2-A21

$343.17

5

STATOR

31120-HN2-A21

$244.22

6

BOLT, SOCKET (8X12)

90010-HN2-000

$2.29

7

BOLT, SOCKET (6X34)

90012-KR8-000

$3.07

8

BOLT, SOCKET (5X12)

90089-KR0-000

$2.80
