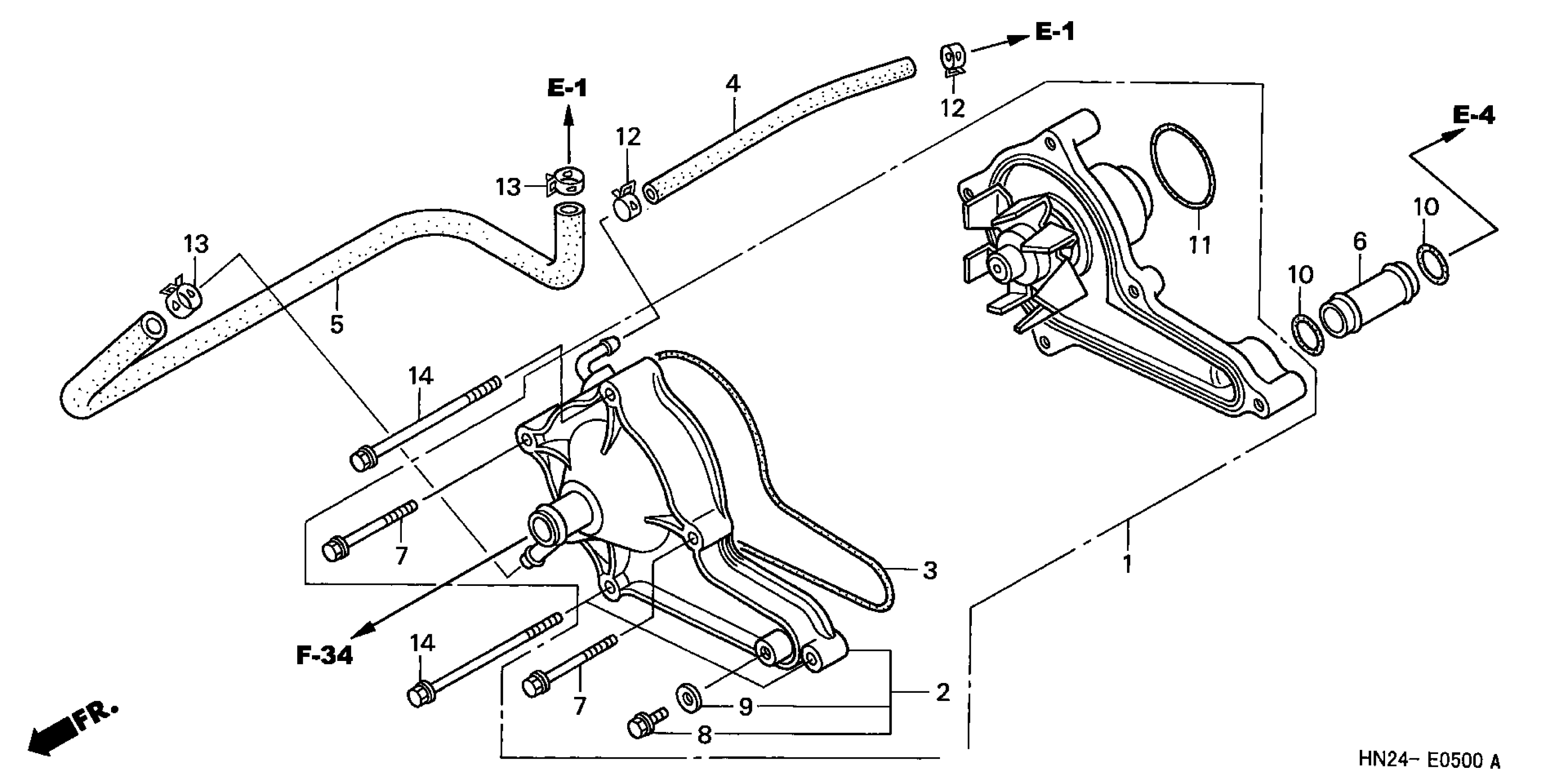

Honda TRX500FAA (04) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-44300001 TO 478TE260-44399999 WATER PUMP Diagram

WATER PUMP

19200-HN2-010

$263.87

COVER, WATER PUMP

19220-HN2-000

$88.46

GASKET, WATER PUMP COVER

19226-HN2-000

$13.62

HOSE, WATER PUMP

19322-HN2-000

$5.99

HOSE, WATER BYPASS

19323-HN2-000

Unavailable

JOINT, WATER

19523-HN2-000

$6.67

BOLT, FLANGE (6X30) (CT200)

90003-HN2-000

$1.49

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (18.5X2.2)

91303-KV3-780

$1.95

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

CLAMP, TUBE (D10)

95002-41000-08

$2.41

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
