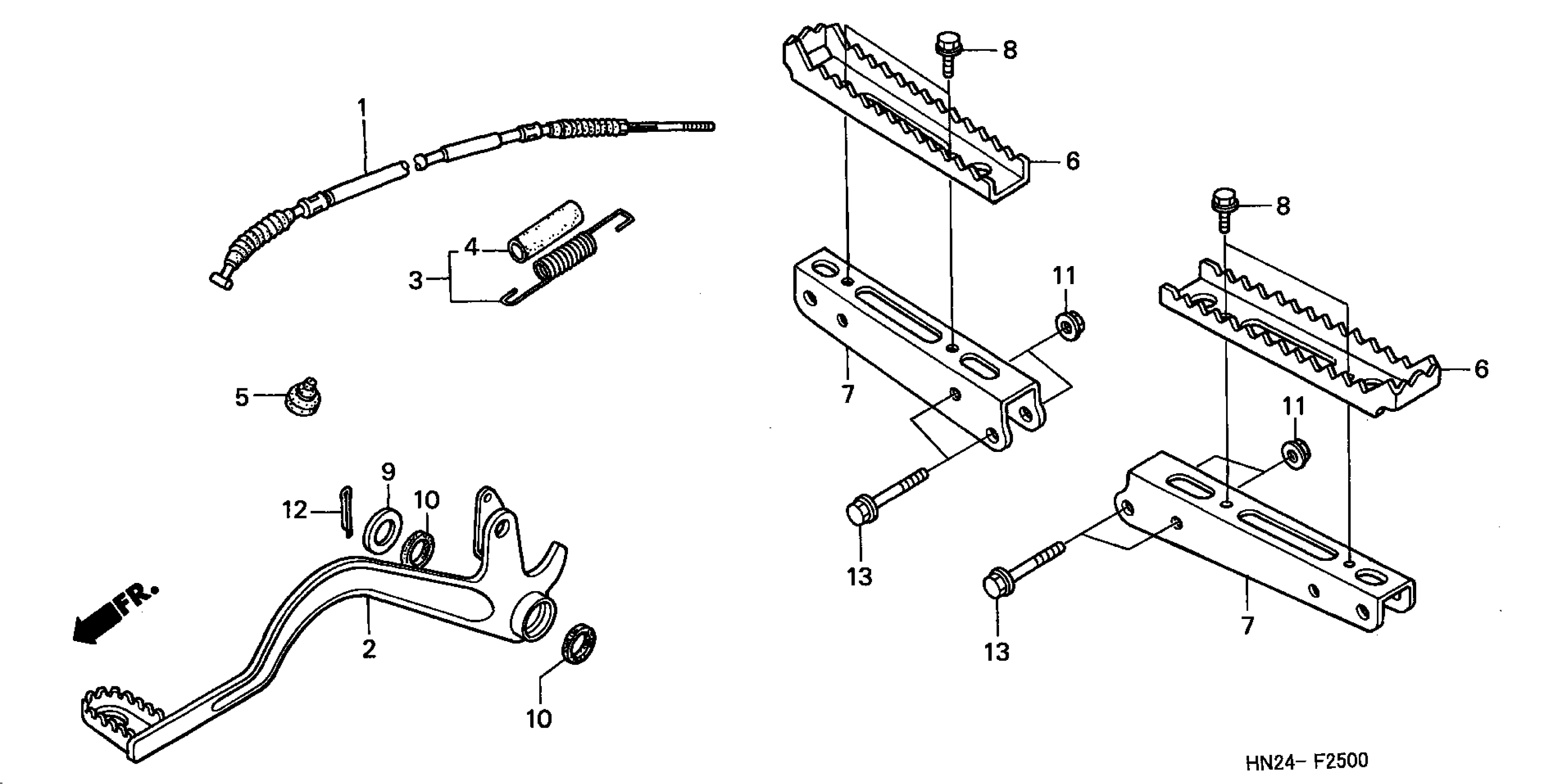

Honda TRX500FAA (04) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-44300001 TO 478TE260-44399999 STEP (TRX500FA'01-'04/FGA'04) Diagram

CABLE, FOOT BRAKE

43470-HN2-000

$34.04

PEDAL, BRAKE

46500-HN2-000

Unavailable

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$14.06

TUBE, BRAKE PEDAL SPRING

46515-HM7-000

$1.91

RUBBER, STAND STOPPER

50505-GA7-730

$2.06

STEP

50610-HN2-000

$33.40

BRACKET, STEP

50611-HN8-000

$26.69

BOLT, FLANGE (6MM)

90111-197-890

$3.40

WASHER (17.5MM)

90512-303-000

$1.63

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

NUT, FLANGE (8MM)

94050-08000

$0.87

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

PIN, SPLIT (3.0X45)

94201-30450

$1.01

BOLT, FLANGE (8X45)

95801-08045-00

$1.62
