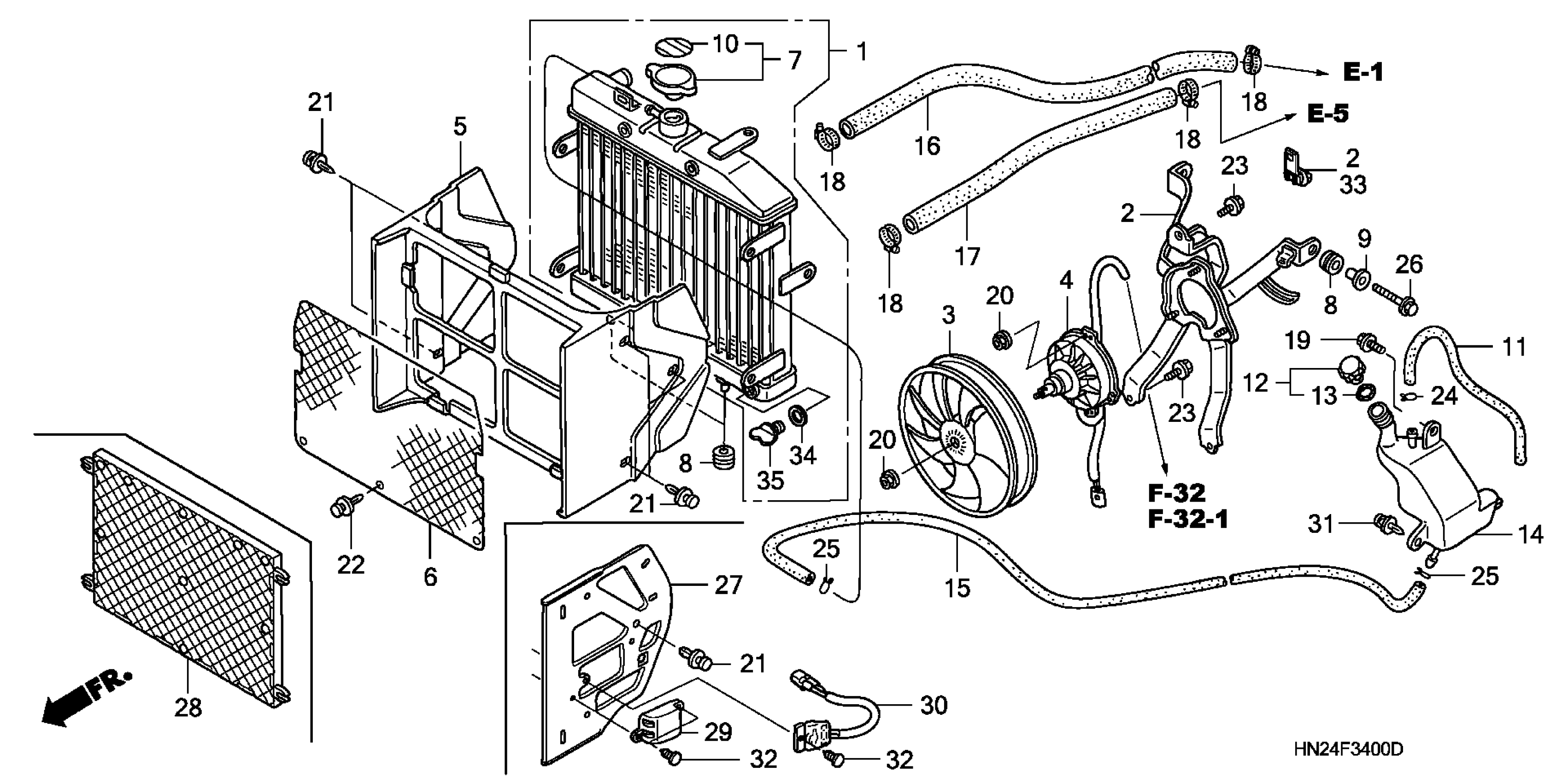

Honda TRX500FAA (04) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-44300001 TO 478TE260-44399999 RADIATOR Diagram

RADIATOR This part replaces 19010-HN2-003.

19010-HN2-505

Unavailable

RADIATOR

19010-HN2-505

Unavailable

STAY, COOLING FAN

19015-HN2-013

$42.74

FAN, COOLING

19020-HN2-003

$68.83

MOTOR ASSY., FAN

19030-HN2-013

$106.96

COVER, RADIATOR GRILLE

19033-HN2-000

$43.86

PLATE, RADIATOR GRILL

19034-HN2-000

Unavailable

CAP, RADIATOR This part replaces 19037-HN2-003.

19037-GEE-710

$30.28

CAP, RADIATOR

19037-GEE-710

$30.28

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-HN2-003.

19055-MV9-881

$9.22

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

TUBE, BREATHER

19104-HN2-000

$5.39

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

GASKET, RESERVE TANK

19107-MG8-000

$5.05

TANK, RADIATOR RESERVE

19110-HN2-000

$23.46

TUBE, RADIATOR RESERVE

19111-HN2-000

$16.21

HOSE, WATER (UPPER)

19501-HN2-000

$20.59

HOSE, WATER (LOWER)

19502-HN2-000

$20.37

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLIP, DRIVE CHAIN CASE

90684-MBG-003

$2.92

BOLT-WASHER (6X12)

93401-06012-08

$1.55

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

SEAL, GASKET

19109-HN2-003

$1.80

PETCOCK, DRAIN

90103-HN2-003

$1.82
