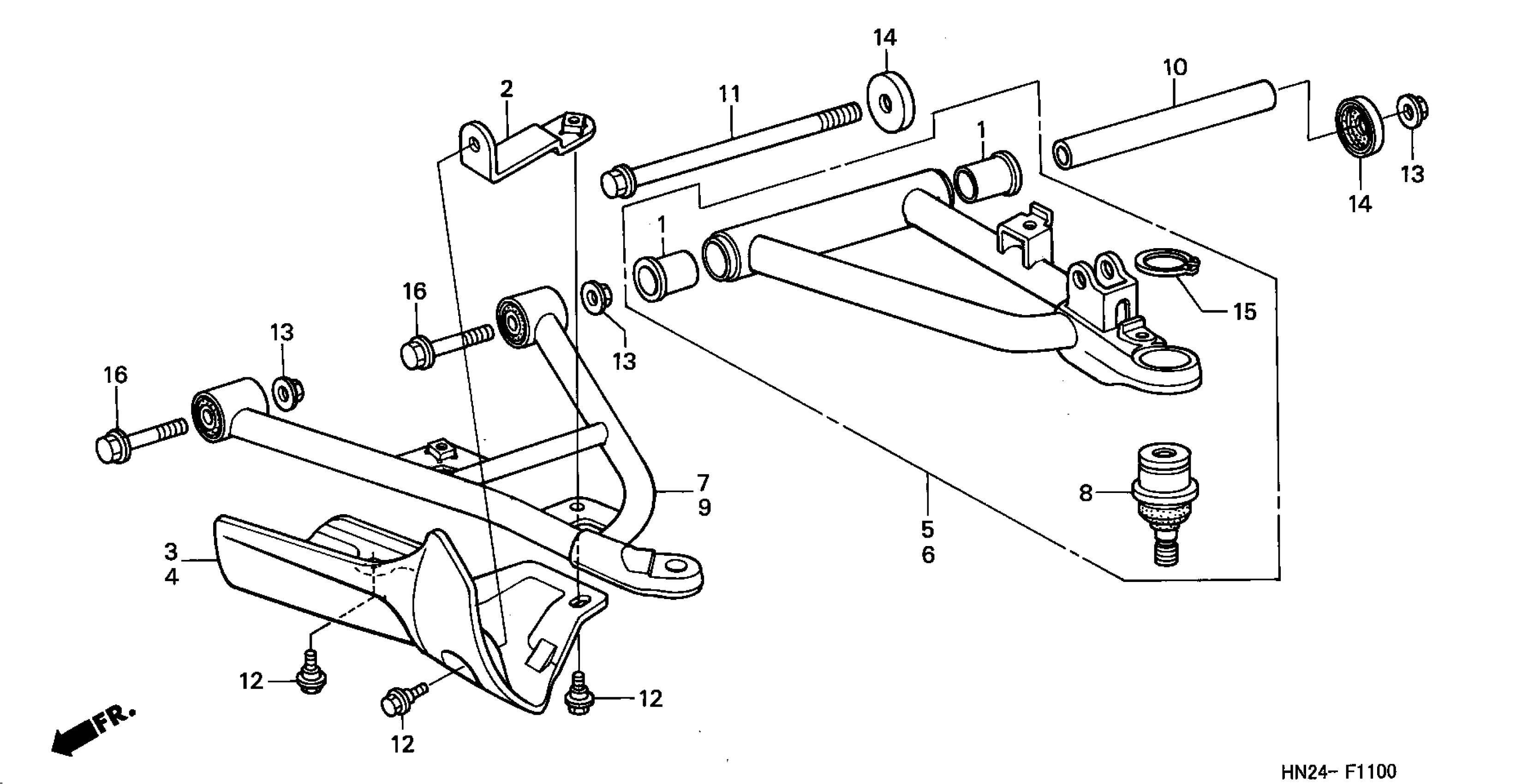

Honda TRX500FAA (04) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-44300001 TO 478TE260-44399999 FRONT ARM (TRX500FA'01-'04/FGA'04) Diagram

BUSH, ARM (UPPER)

51108-HN2-000

$10.00

STAY, FR. GUARD

51311-HM7-000

$50.77

GUARD, R. FR.

51315-HN2-000

$12.61

GUARD, L. FR.

51316-HN2-000

$13.38

ARM SET, R. (UPPER)

51330-HN2-000

$253.25

ARM SET, L. (UPPER)

51340-HN2-000

$259.59

ARM ASSY., R. (LOWER)

51350-HN2-000

$267.20

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

JOINT A, ARM BALL

51375-HP5-601

$20.53

ARM ASSY., L. (LOWER)

51360-HN2-000

Unavailable

COLLAR, ARM (UPPER)

51464-HN2-000

$11.64

BOLT, ENGINE HANGER

90103-162-000

$12.16

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$11.15

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
