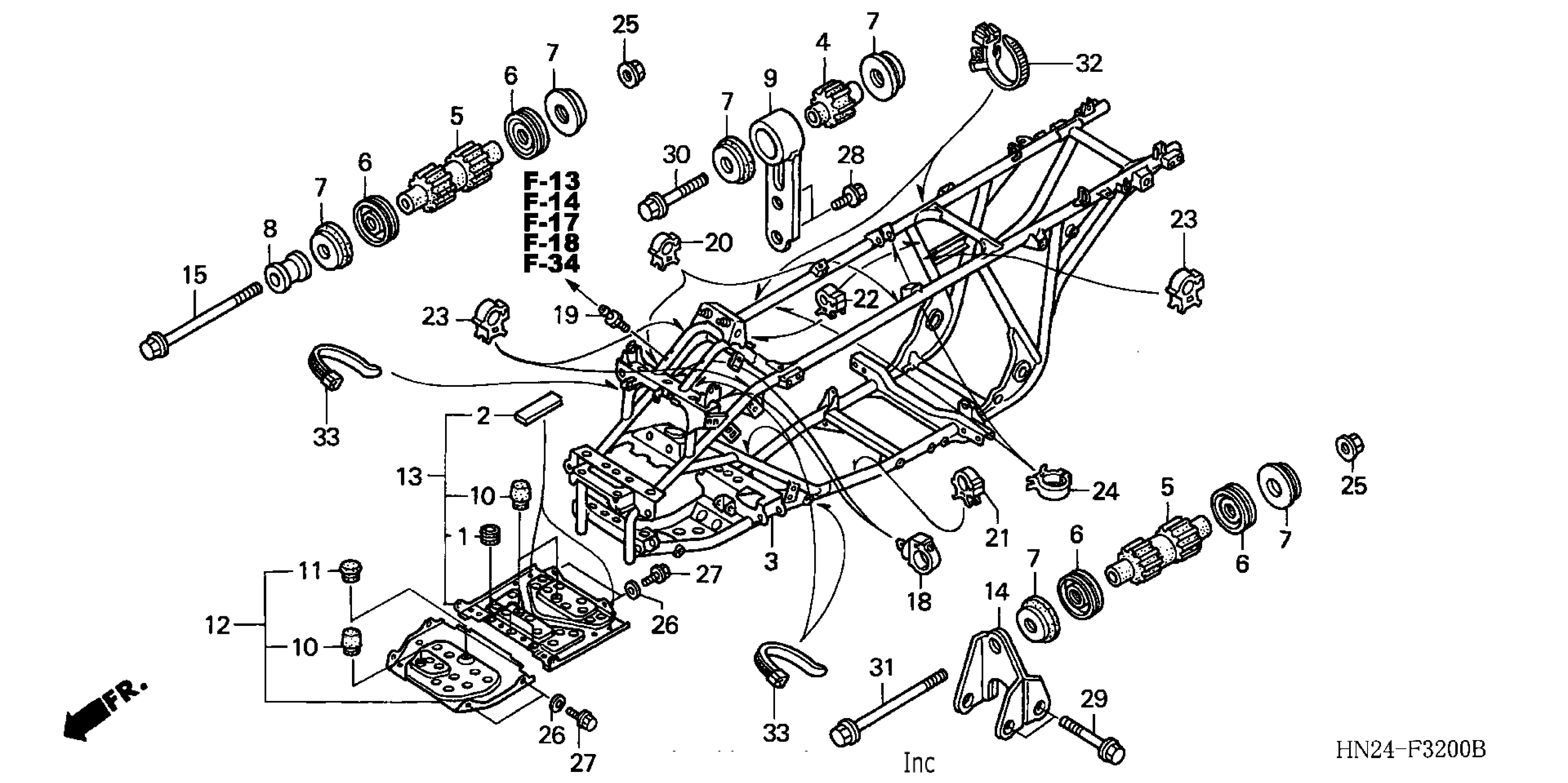

Honda TRX500FAA (04) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-44300001 TO 478TE260-44399999 FRAME (TRX500FA'01-'04/FGA'04) Diagram

GROMMET A, RR. COVER (8X16X6.6)

11344-MB0-000

$2.66

RUBBER, TANK SPACER

17511-HM5-670

$10.31

FRAME

50100-HN2-000

Unavailable

RUBBER, ENGINE HEAD MOUNTING

50201-HN2-000

$12.64

RUBBER SET, ENGINE MOUNTING (LOWER) (RIGHT AND LEFT SET)

50202-HN2-305

$32.15

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

Unavailable

RUBBER C, MOUNTING

50204-HM7-003

$19.53

COLLAR, ENGINE HANGER

50205-HN2-000

Unavailable

PLATE, HEAD HANGER

50351-HN2-000

$108.38

RUBBER A, STOPPER

50352-HM5-730

$19.95

RUBBER B, STOPPER

50354-HM5-730

$13.02

GUARD, ENGINE (FR)

50360-HN2-000

$20.82

GUARD, ENGINE (RR)

50361-HN2-000

$26.62

HANGER, ENGINE (LOWER)

50363-HN2-000

$70.07

BOLT, ENGINE HANGER

90103-147-000

$11.35

CLAMP, HARNESS

90652-HC4-003

$5.68

JOINT, BREATHER TUBE

90652-HF7-003

$8.76

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

NUT, FLANGE (10MM)

94050-10000

$1.66

WASHER (8.5MM)

90521-259-000

$1.78

BOLT, FLANGE (8X16)

95701-08016-07

$1.99

BOLT, FLANGE (8X22)

95701-08022-00

$1.94

BOLT, FLANGE (8X60)

95701-08060-00

$1.40

BOLT, FLANGE (10X60)

95701-10060-00

$1.82

BOLT, FLANGE (10X125)

95801-10125-00

Unavailable

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$6.33

BAND, WIRE (BLACK)

90652-KT1-771

$4.28
