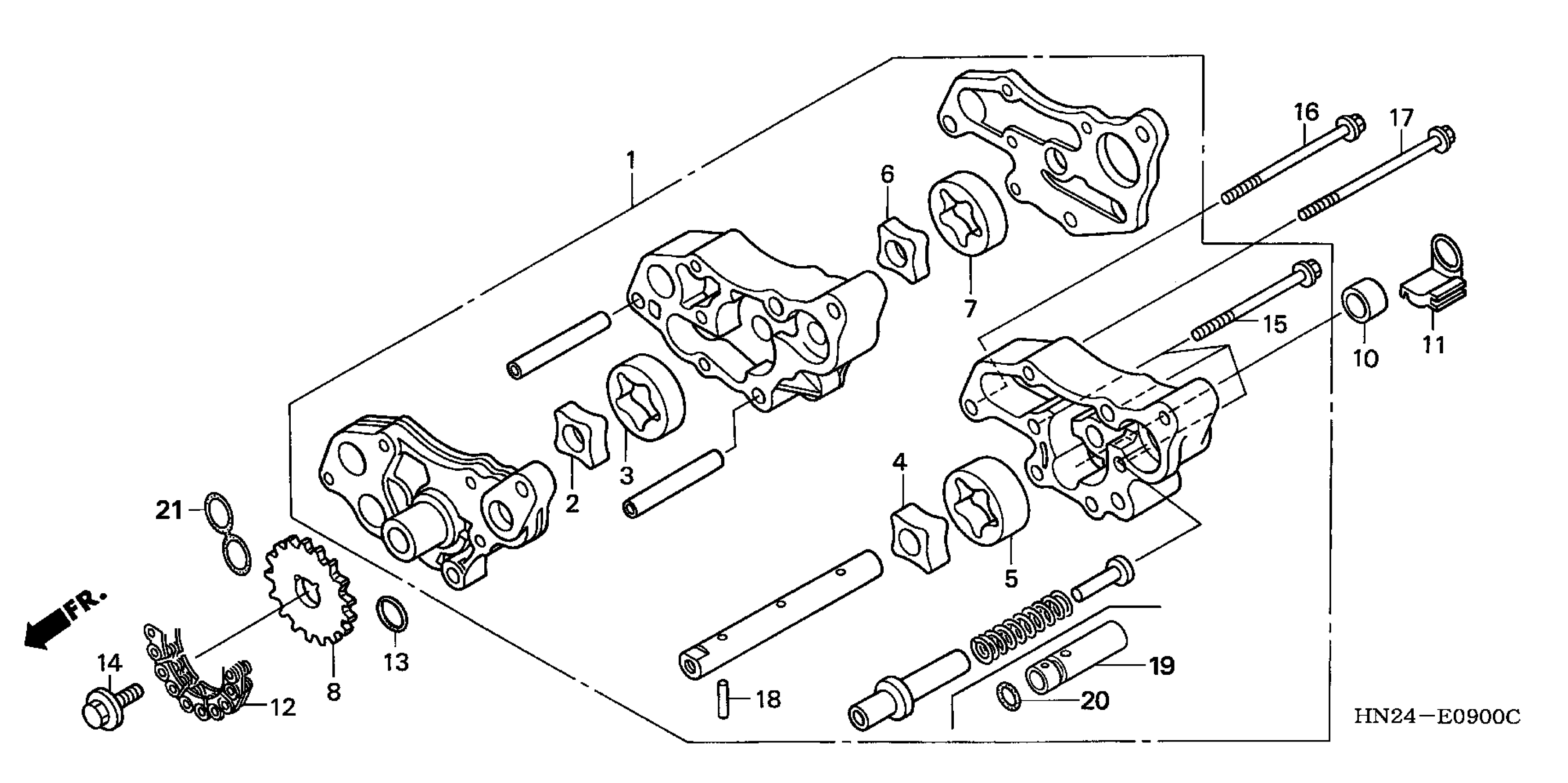

Honda TRX500FAA (03) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-34200001 TO 478TE260-34299999 OIL PUMP Diagram

PUMP ASSY., OIL This part replaces 15100-HN2-000.

15100-HN2-010

$262.88

ROTOR A, OIL PUMP (INNER)

15122-HN2-003

$18.27

ROTOR A, OIL PUMP (OUTER)

15123-HN2-003

$20.12

ROTOR SET B This part replaces 15124-HN2-003.

15022-HR6-B01

$49.58

ROTOR SET B This part replaces 15125-HN2-003.

15022-HR6-B01

$49.58

ROTOR B, OIL PUMP (INNER)

15126-HN2-003

$18.38

ROTOR B, OIL PUMP (OUTER)

15127-HN2-003

Unavailable

SPROCKET, OIL PUMP DRIVEN (19T)

15133-HN2-000

$46.65

COLLAR, SPECIAL

15234-HN2-000

$2.51

RUBBER, OIL PUMP SEAL

15236-HN2-000

$7.29

CHAIN, OIL PUMP DRIVE (50L) (DAIDO)

15401-HN2-003

$21.11

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

BOLT, FLANGE (6X75)

95701-06075-00

$2.80

BOLT, FLANGE (6X80)

95701-06080-08

$3.34

BOLT, FLANGE (6X90)

95701-06090-08

$1.81

ROLLER (4X15.8)

96220-40158

$0.41

SEAL, RUBBER

15152-HN2-000

$4.63
