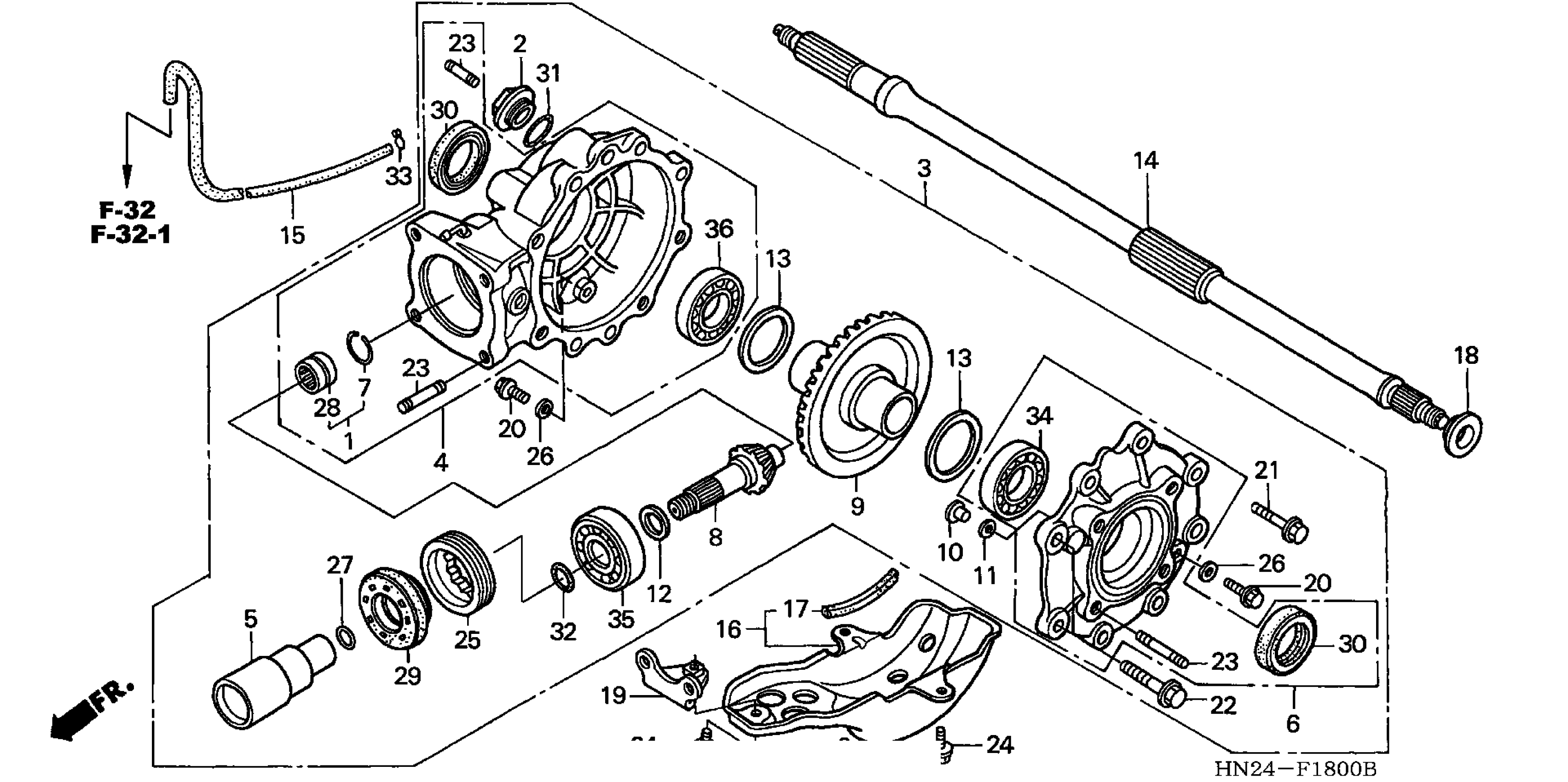

Honda TRX500FAA (03) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-34200001 TO 478TE260-34299999 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-HM7-610

$15.13

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., RR. FINAL

41300-HN2-000

$382.87

4

CASE SUB-ASSY., RR. FINAL GEAR

41311-HN2-000

Unavailable

5

JOINT, RR. PINION

41315-HN2-000

$58.45

6

COVER SUB-ASSY., RR. FINAL GEAR

41320-HN2-000

$126.52

7

RING, STOPPER

41405-HA7-670

$2.97

8

GEAR, RR. PINION (13T)

41421-HN2-000

$148.90

9

GEAR, RR. RING (41T) This part replaces 41431-HN2-000.

41431-HP0-A00

$215.33

9

GEAR, RR. RING (41T)

41431-HP0-A00

$215.33

10

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

11

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

11

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

12

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

12

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

12

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

12

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

12

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

12

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

12

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

12

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

12

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

12

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

13

SPACER A, RING GEAR (1.82)

41540-HA0-000

$11.84

13

SPACER B, RING GEAR (1.88)

41541-HA0-000

$12.56

13

SPACER C, RING GEAR (1.94)

41542-HA0-000

$12.56

13

SPACER D, RING GEAR (2.00)

41543-HA0-000

$11.84

13

SPACER E, RING GEAR (2.06)

41544-HA0-000

$12.56

13

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.84

13

SPACER G, RING GEAR (2.18)

41546-HA0-000

$11.84

13

SPACER H, RING GEAR (2.24)

41547-HA0-000

$11.84

13

SPACER I, RING GEAR (2.30)

41548-HA0-000

$11.84

14

SHAFT, RR. AXLE This part replaces 42311-HN2-010.

42311-HN2-020

$196.80

14

SHAFT, RR. AXLE

42311-HN2-020

$196.80

15

TUBE, BREATHER (3.5X1480)

43133-HN2-000

$8.44

16

PLATE, SKID

50355-HN5-670

$54.87

17

RUBBER, STOPPER

50356-HM7-300

$1.61

18

STOPPER, L. BEARING

52112-HA0-000

$16.79

19

STAY, SKID PLATE

52190-HN5-670

$4.00

20

BOLT, SEALING (8MM)

90109-371-000

$2.58

21

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

22

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

23

BOLT, STUD (10X22)

90135-HA7-770

$8.63

24

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

25

NUT, LOCK (64MM)

90242-MB0-000

$32.52

26

GASKET (8MM)

90471-580-000

$2.92

27

CLIP (25MM)

90602-MR1-000

$2.92

28

BEARING, NEEDLE (14X24.5X15) (NTN) This part replaces 91061-HA7-672.

91061-HC4-003

$42.85

28

BEARING, NEEDLE (14X24.5X15) (NTN)

91061-HC4-003

$42.85

29

OIL SEAL (39X70X11)

91251-HN2-003

$17.02

30

OIL SEAL (35X49X6) (NOK)

91252-HA0-004

$13.41

31

O-RING (30.8MM)

91302-001-020

$3.75

32

O-RING (24X3)

91312-KM9-003

$3.67

33

CLIP, TUBE (C6.5)

95002-35000

$1.49

34

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05

35

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53

36

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05
