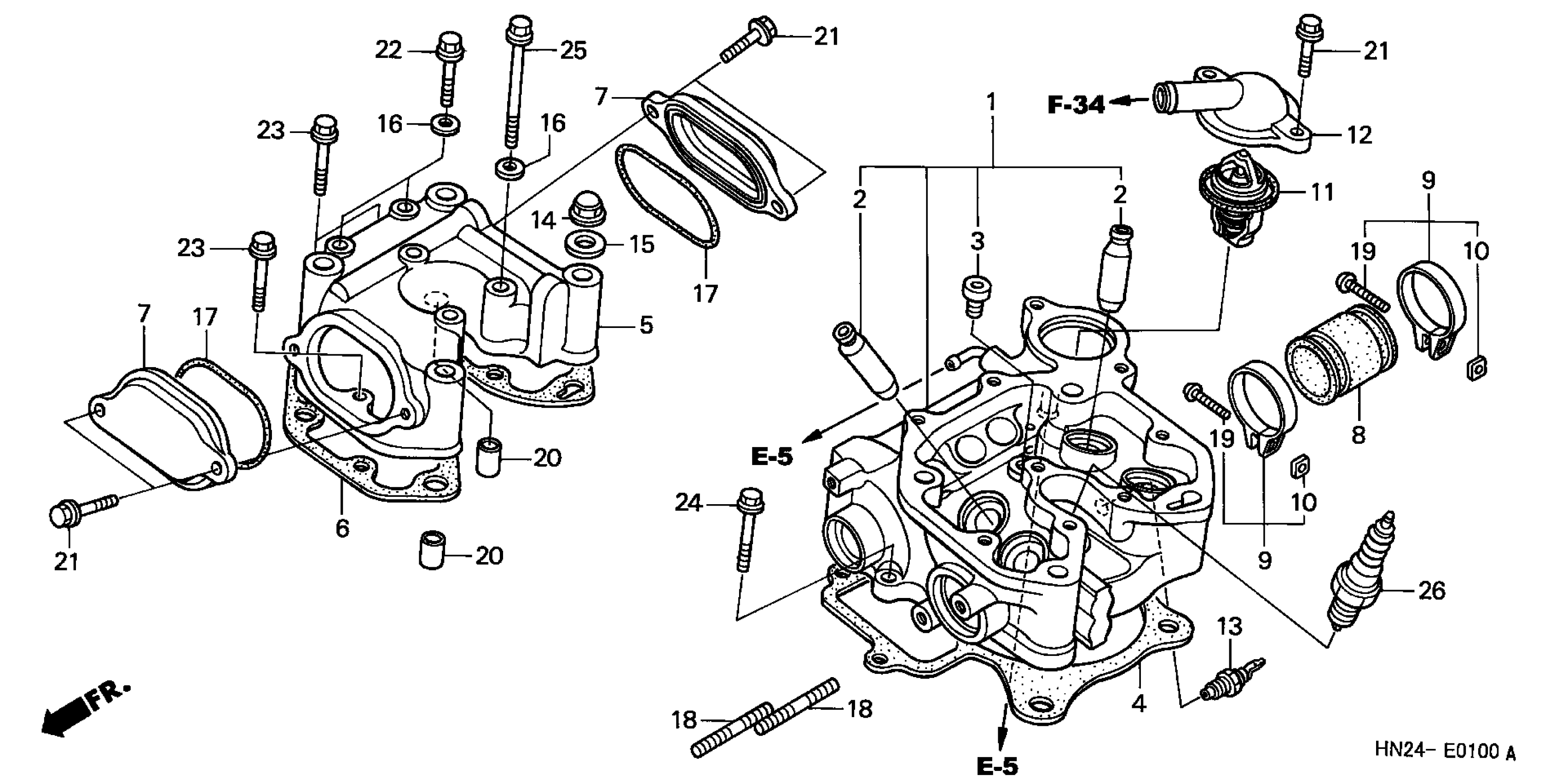

Honda TRX500FAA (03) FOURTRAX FOREMAN RUBICON, USA, VIN# 478TE260-34200001 TO 478TE260-34299999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HN2-000

$314.12

2

GUIDE, VALVE (OVER SIZE)

12204-HN2-305

$17.60

3

BOLT, SEALING (18MM)

12206-ML8-300

$8.70

3

BOLT, SEALING (18MM) This part replaces 12206-371-300.

12206-ML8-300

$8.70

3

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$8.70

3

BOLT, SEALING (18MM) This part replaces 12206-611-300.

12206-ML8-300

$8.70

4

GASKET, CYLINDER HEAD

12251-HN2-003

$35.47

4

GASKET, CYLINDER HEAD (OVER SIZE) | (Optional).

12252-HN2-305

$39.51

5

COVER, CYLINDER HEAD

12310-HN2-000

$203.67

6

GASKET, HEAD COVER

12315-HN2-003

$15.11

7

COVER, TAPPET ADJUSTING HOLE This part replaces 12351-HN2-000.

12351-HN2-010

$12.13

8

INSULATOR, CARBURETOR

16211-HN2-000

$26.19

9

BAND B, INSULATOR

16218-MW4-000

$14.92

10

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

11

THERMOSTAT ASSY.

19300-HN2-003

$38.99

12

COVER, THERMOSTAT

19321-HN2-000

$28.55

13

THERMO UNIT (DENSO)

37750-MAZ-003

$34.99

14

NUT, CAP (10MM)

90201-HA0-000

$5.99

14

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

15

WASHER, PLAIN (10MM)

90401-437-000

$2.55

16

WASHER, SEALING (6MM)

90441-706-000

$1.06

17

O-RING (57X2.5)

91308-500-000

$6.54

18

BOLT, STUD (8X25)

92900-08025-0B

$2.00

19

SCREW, PAN (5X25)

93500-05025-0G

$0.68

20

PIN A, DOWEL (12X16)

94301-12160

Unavailable

21

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

22

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

24

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

25

BOLT, FLANGE (6X70)

95701-06070-00

$2.09

26

SPARK PLUG (IJR6A9) (NGK) | (Optional).

98069-5691U

$15.46

26

SPARK PLUG (VX20BC) (DENSO) | (Optional).

98069-5692U

$22.15

26

SPARK PLUG (IJR7A9) (NGK)

98069-5791U

$15.29

26

SPARK PLUG (VX22BC) (DENSO)

98069-5792U

$22.15
