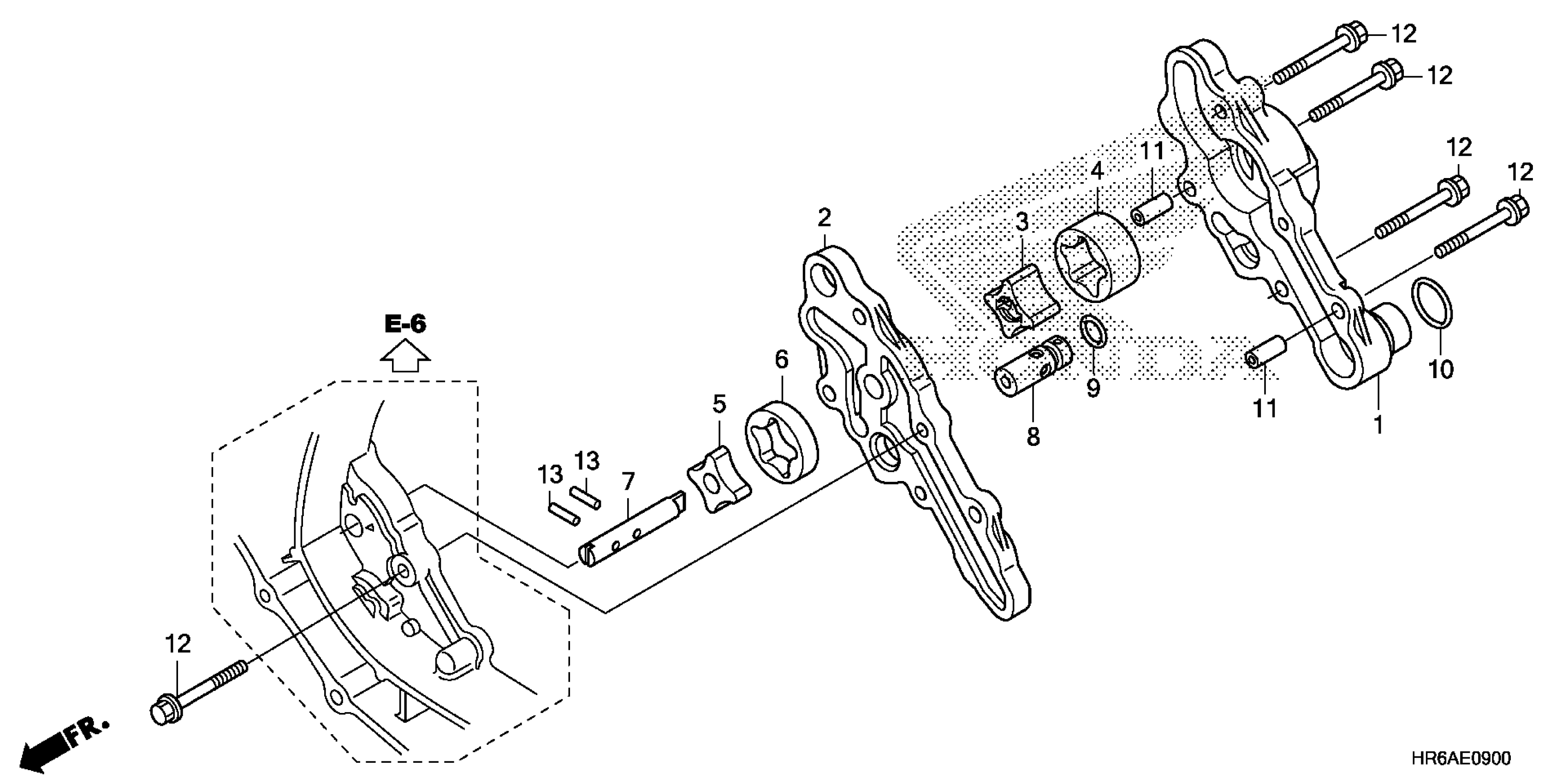

Honda TRX500FA72AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE52C-K4400001 OIL PUMP Diagram

#

Description

Price

1

BODY A, OIL PUMP

15101-HR6-A60

$26.02

2

BODY B, OIL PUMP

15102-HR6-A60

$11.97

3

ROTOR A, OIL PUMP (INNER)

15128-HR6-A61

$10.62

4

ROTOR A, OIL PUMP (OUTER)

15129-HR6-A61

$13.85

5

ROTOR B, OIL PUMP (INNER)

15130-HR6-A61

$10.56

6

ROTOR B, OIL PUMP (OUTER)

15131-HR6-A61

$14.09

7

SHAFT, OIL PUMP

15132-HR6-A60

$10.62

8

VALVE ASSY., RELIEF

15220-HP7-A00

$18.13

9

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

9

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

10

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$3.13

11

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

12

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

13

ROLLER (4X15.8)

96220-40158

$1.49
