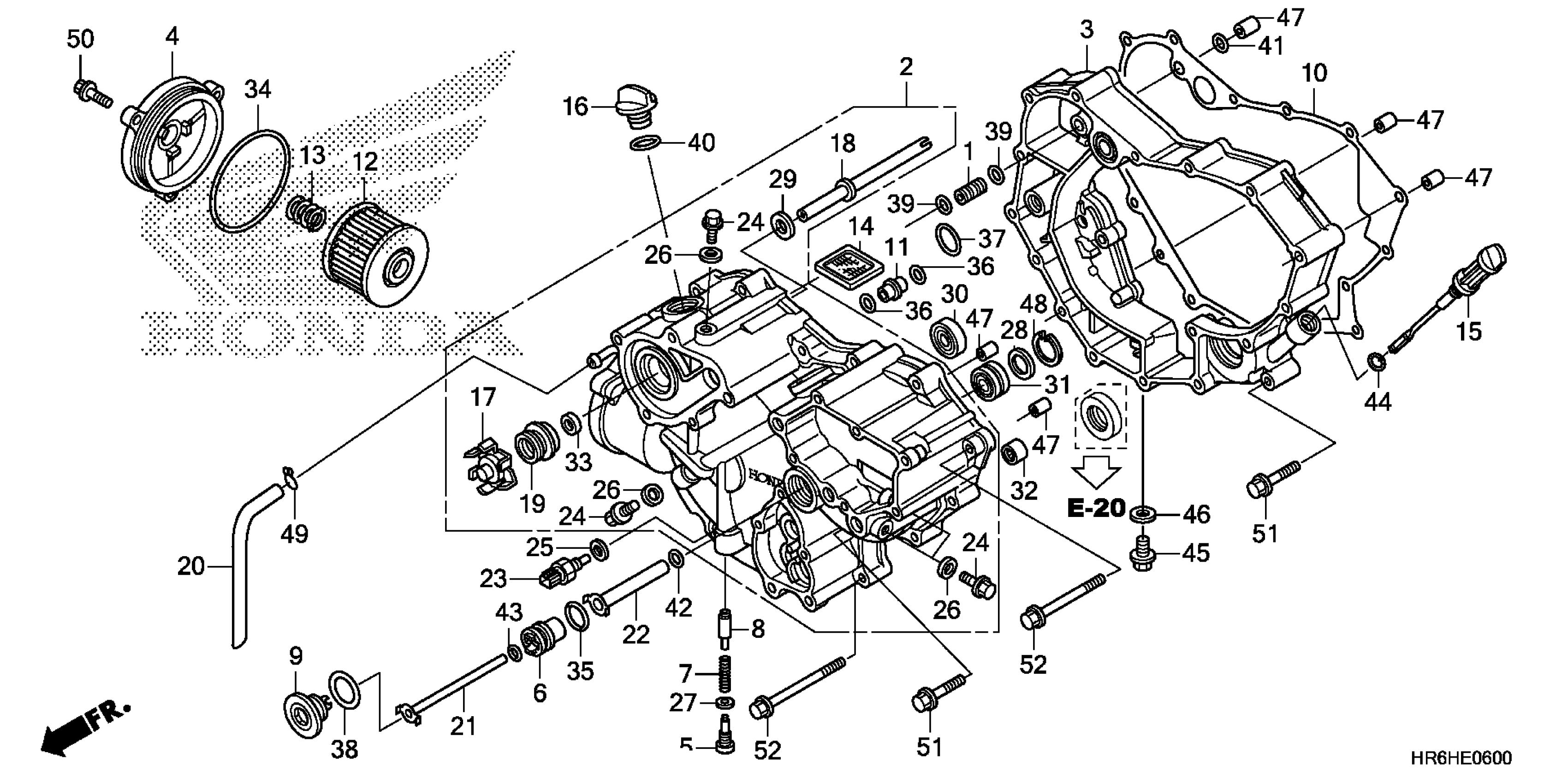

Honda TRX500FA72A (18) TRX500FA7, USA, VIN# 1HFTE46H-J4300001 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

PIN, OIL GUIDE (8MM)

11145-HR6-A60

$9.12

2

COVER ASSY., FR. CRANKCASE

11300-HR6-A60

$890.04

3

SPACER, FR. COVER

11321-HR6-A60

$274.71

4

COVER, OIL FILTER

11333-HP7-A00

$37.33

5

BOLT, VALVE SETTING

11334-HN2-000

$5.29

6

COLLAR, OIL FEED PIPE SETTING

11335-HN8-000

$4.18

7

SPRING, ORIFICE VALVE (PINK)

11336-HN2-000

$1.84

8

VALVE, RELIEF

11337-HN2-000

$6.77

9

BOLT, OIL FEED PIPE SETTING

11337-HN8-000

$5.16

10

GASKET, FR. CRANKCASE SPACER

11392-HP7-A00

$15.97

11

JOINT, SPECIAL

15235-HN2-000

$5.37

12

ELEMENT, OIL FILTER

15412-HP7-A01

$11.21

13

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$3.95

14

SCREEN, OIL FILTER

15421-HR3-A60

$7.45

15

DIPSTICK, OIL

15650-HR6-A60

Unavailable

16

CAP, OIL FILLER

15655-HN5-670

$8.84

17

IMPELLER, WATER PUMP

19215-MEG-300

$23.06

18

SHAFT, WATER PUMP

19216-HP7-A00

$35.45

19

SEAL, MECHANICAL

19217-MAL-300

$47.62

20

HOSE, DRAIN

19507-HP7-A00

$2.72

21

PIPE A, FEED

22710-HP7-A00

$14.30

22

PIPE B, FEED

22715-HP7-A00

$13.01

23

SENSOR ASSY., THERMOSTAT OIL (PANASONIC)

37750-KPH-701

$45.22

24

BOLT, SEALING (8MM)

90024-612-000

$4.43

25

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

26

GASKET (8MM)

90471-580-000

$2.80

27

WASHER, OIL BOLT

90545-MC0-000

$3.15

28

WASHER, THRUST (19MM)

90554-KA5-680

$4.07

29

WASHER, THRUST (12X23X2)

90599-767-C10

$2.51

30

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$20.12

31

BEARING, NEEDLE (16X28X13)

91022-HP7-A01

$17.29

32

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.79

32

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.79

33

OIL SEAL (12X26X7) (ARAI)

91201-MV4-003

$4.78

34

O-RING (75X2.5)

91301-107-000

$4.54

35

O-RING (18.5X1.9) (NOK)

91301-P7X-003

$2.87

36

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

37

O-RING (20.6X1.9)

91304-HP5-601

$2.80

38

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

39

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

40

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

41

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$1.99

42

O-RING (8.5X1.9) (NOK) This part replaces 91314-PC9-003.

91314-PC9-004

$3.00

42

O-RING (8.5X1.9) (NOK)

91314-PC9-004

$3.00

43

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.61

44

O-RING (8.4X2.4)

91316-MJ8-003

$2.38

45

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

46

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

47

PIN, DOWEL (8X14)

94301-08140

$2.04

48

CIRCLIP (INNER) (28MM)

94520-28000

$1.16

49

CLIP, TUBE (B12.5)

95002-02130

$1.04

50

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

51

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

52

BOLT, FLANGE (6X90)

95701-06090-00

$1.84
