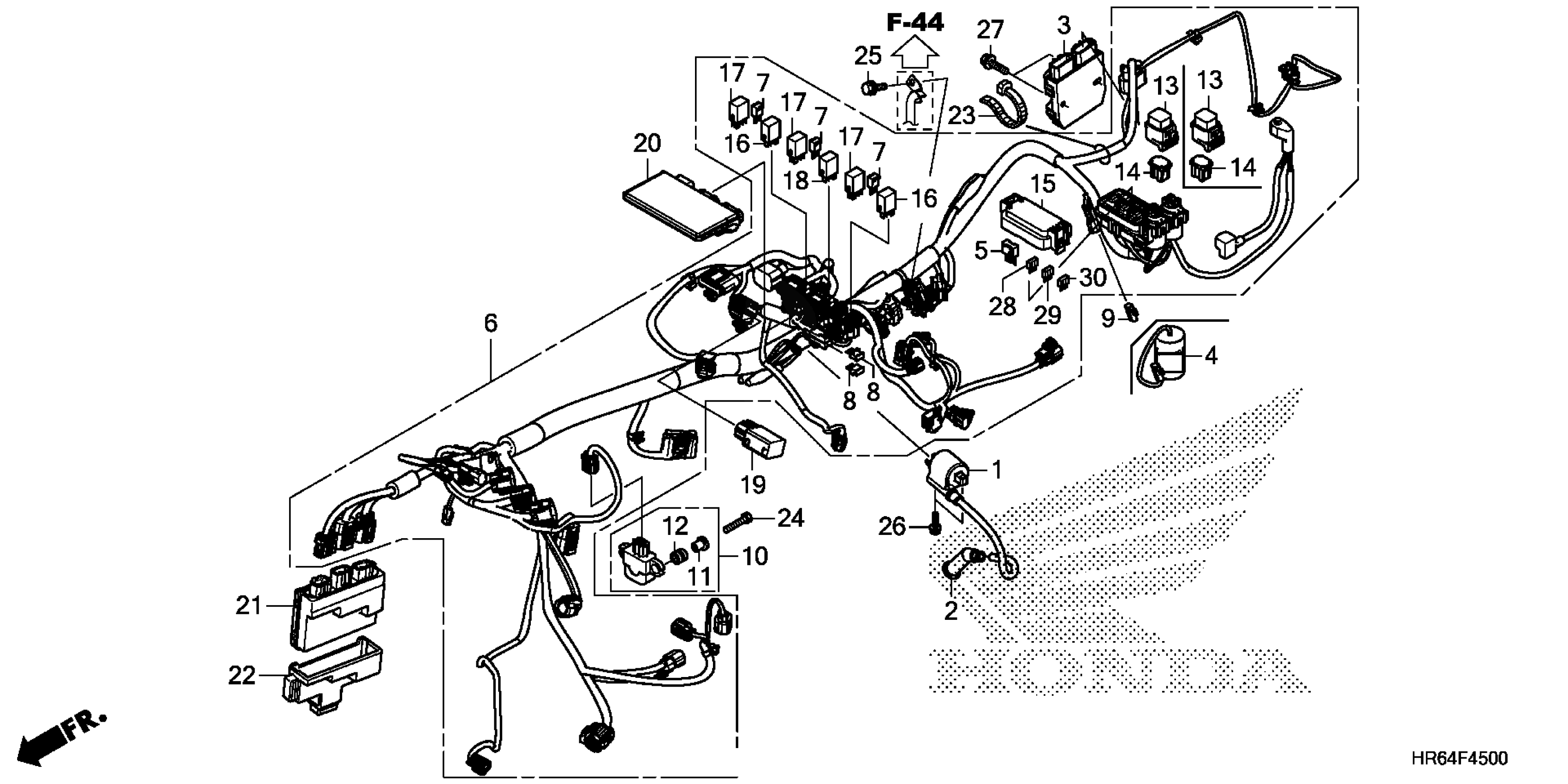

Honda TRX500FA6AC (16) TRX500FA6, USA, VIN# 1HFTE462-G4100001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-HR3-A21

$70.43

2

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$24.97

3

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$168.25

5

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

6

WIRE HARNESS

32100-HR6-A70

$2,677.03

7

CONNECTOR, DIODE (2P)

32146-SH3-003

$16.51

8

DIODE (3P)

32146-SJ4-003

$15.87

9

CONNECTOR, DUMMY (2P 090 F) (BLACK)

32605-HR6-A60

$1.01

10

SENSOR ASSY., BANK ANGLE

35160-HR0-F01

$82.71

11

COLLAR

35162-MGC-003

$4.09

12

GROMMET

35163-MGC-003

$2.04

13

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.22

14

FUSE, BLOCK (40A)

38211-SNA-A21

$4.03

15

COVER SET, FUSE

38230-HR4-A40

$2.46

16

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.66

17

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.31

18

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$13.11

19

RELAY, DIFFLOCK PULLBACK

38580-HR4-A21

$43.65

20

PGM-FI UNIT

38770-HR6-A63

$253.91

20

PGM-FI UNIT

38770-HR6-G62

$258.86

21

EPS UNIT This part replaces 39980-HR6-A61.

39980-HR6-A62

$375.42

21

EPS UNIT

39980-HR6-A62

$375.42

22

CUSHION, EPS UNIT

39981-HN2-B70

$5.42

23

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

24

BOLT, HEX. (6X25) BOLT-WASHER (6X25)

92101-06025-0A

$1.48

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

27

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

28

FUSE, MINI (10A)

98200-41000

$1.20

29

FUSE, MINI (20A)

98200-42000

$1.10

30

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59
