Description

Price

1

RADIATOR (TOYO)

19010-HR3-A21

$220.97

2

STAY, COOLING FAN

19015-HR3-A20

$26.03

3

FAN, COOLING

19020-HN2-003

$68.83

4

MOTOR ASSY., FAN

19030-HR3-A21

$89.85

5

COVER, RADIATOR GRILLE

19033-HR3-A20

$5.04

6

COVER, RADIATOR GRILLE CENTER

19034-HR3-A20

$39.72

7

CAP, RADIATOR

19037-GEE-710

$30.28

8

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

11

CAP, RESERVE TANK

19104-MB0-700

$12.16

12

TANK, RADIATOR RESERVE

19110-HR3-A20

$46.90

13

TUBE, RADIATOR RESERVE

19111-HR3-A20

$13.81

14

HOSE, WATER (UPPER)

19501-HR3-A20

$10.43

15

BAND, WATER HOSE (27MM)

19503-HN2-A60

$4.80

16

HOSE, WATER (LOWER)

19503-HR3-A70

$16.85

17

HOLDER, EPS ECU

35620-HR3-A70

$7.11

18

BOLT-WASHER (6X15)

90107-HN8-003

$1.98

19

BOLT, FLANGE (6MM)

90111-162-000

$2.89

20

BOLT, FLANGE (5X10)

90196-MBB-003

$2.66

21

NUT, CLIP (6MM)

90201-KPR-901

$1.87

22

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

23

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

24

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

25

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

26

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

27

CLIP, TUBE (B10)

95002-02100

$1.90

28

TUBE, VINYL (5X8X230)

95003-10023-10

$16.30

29

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

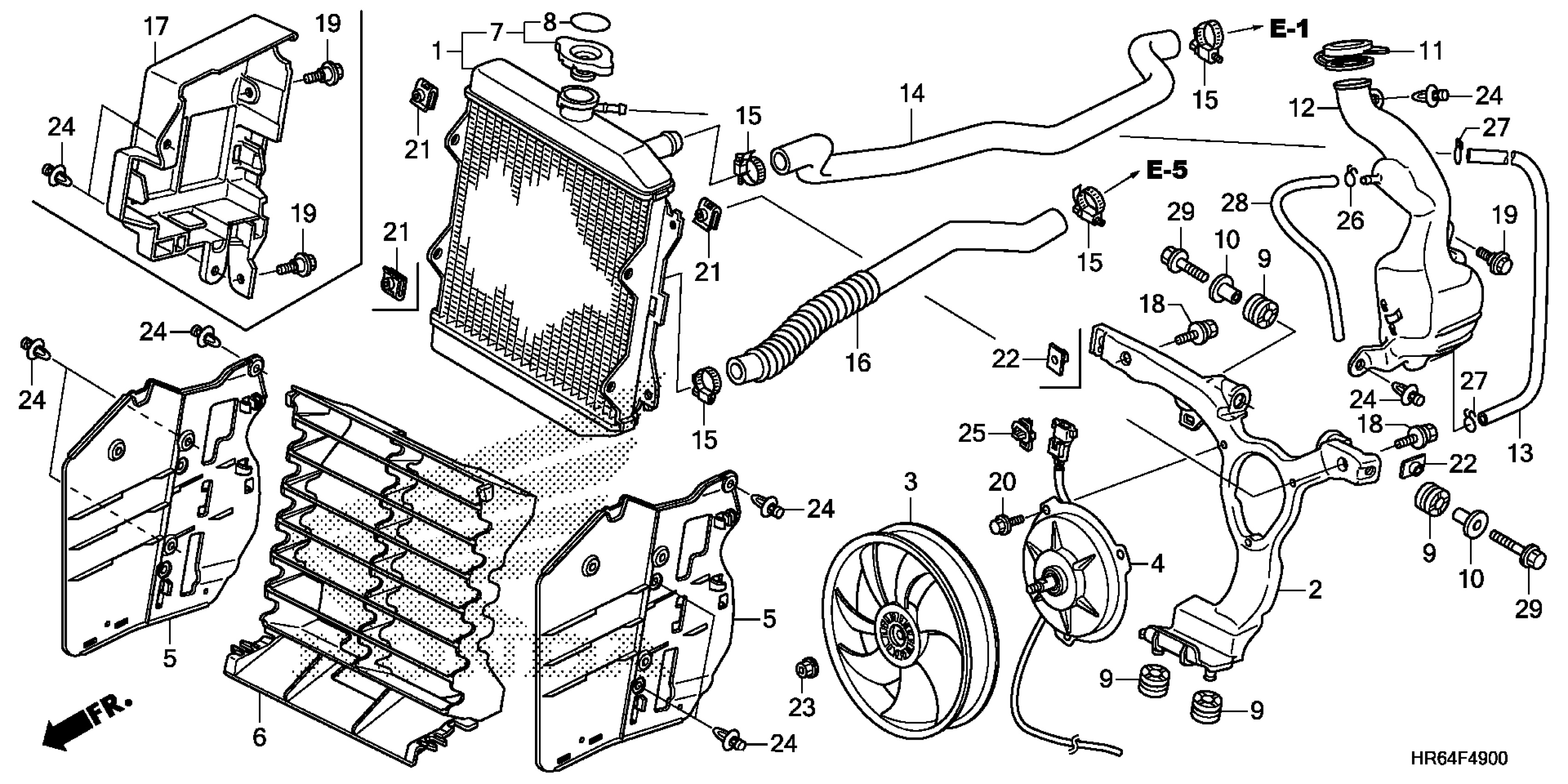

Honda TRX500FA62AC (16) TRX500FA6, USA, VIN# 1HFTE461-G4100001 RADIATOR Diagram
