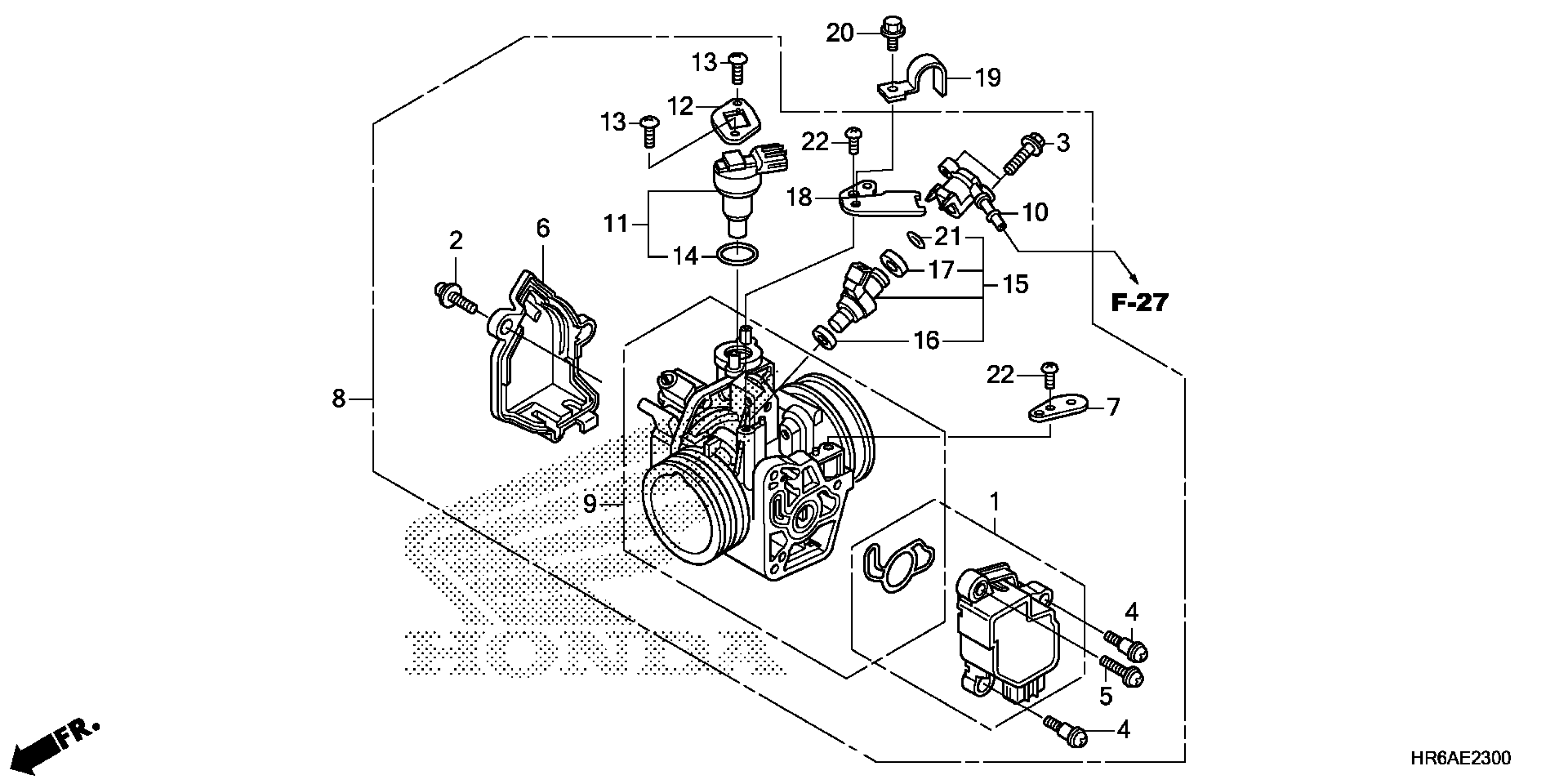

Honda TRX500FA5AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE463-K4400001 THROTTLE BODY Diagram

SENSOR SET

16060-HP6-A01

$139.42

SCREW-WASHER

16080-HP5-601

$2.13

BOLT, FLANGE (5X20)

16080-KPH-701

$4.63

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.82

SCREW, TORX (5X17)

16082-KYJ-901

$2.23

COVER, BODY

16157-HN8-A61

$2.92

STAY, HARNESS CLAMP

16196-HP6-A01

$9.41

THROTTLEBODY ASSY. This part replaces 16400-HR4-A42.

16400-HR4-A43

$152.49

BODY SET

16410-HR4-A41

$76.71

JOINT, INJECTOR

16422-HR3-A41

$18.79

VALVE SET, IDLE AIR CONTROL

16430-HP6-A01

$65.14

PLATE, IDLE AIR CONTROL VALVE

16432-HP5-601

$3.62

SCREW, TORX

16433-HN8-A61

$1.49

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

INJECTOR ASSY., FUEL This part replaces 16450-HR3-A42.

16450-HR3-A43

$84.69

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

DUST SEAL RING

16473-HR3-A42

$6.34

BASE, CLAMP

17567-KWT-901

$6.92

CLAMP, FUEL HOSE

17568-HP5-600

$1.49

BOLT, FLANGE (5X10)

90002-892-000

$1.49

O-RING (6.3X2.2)

91301-KZL-931

$10.23

SCREW, PAN (5X10)

93500-05010-0H

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

$1.49
