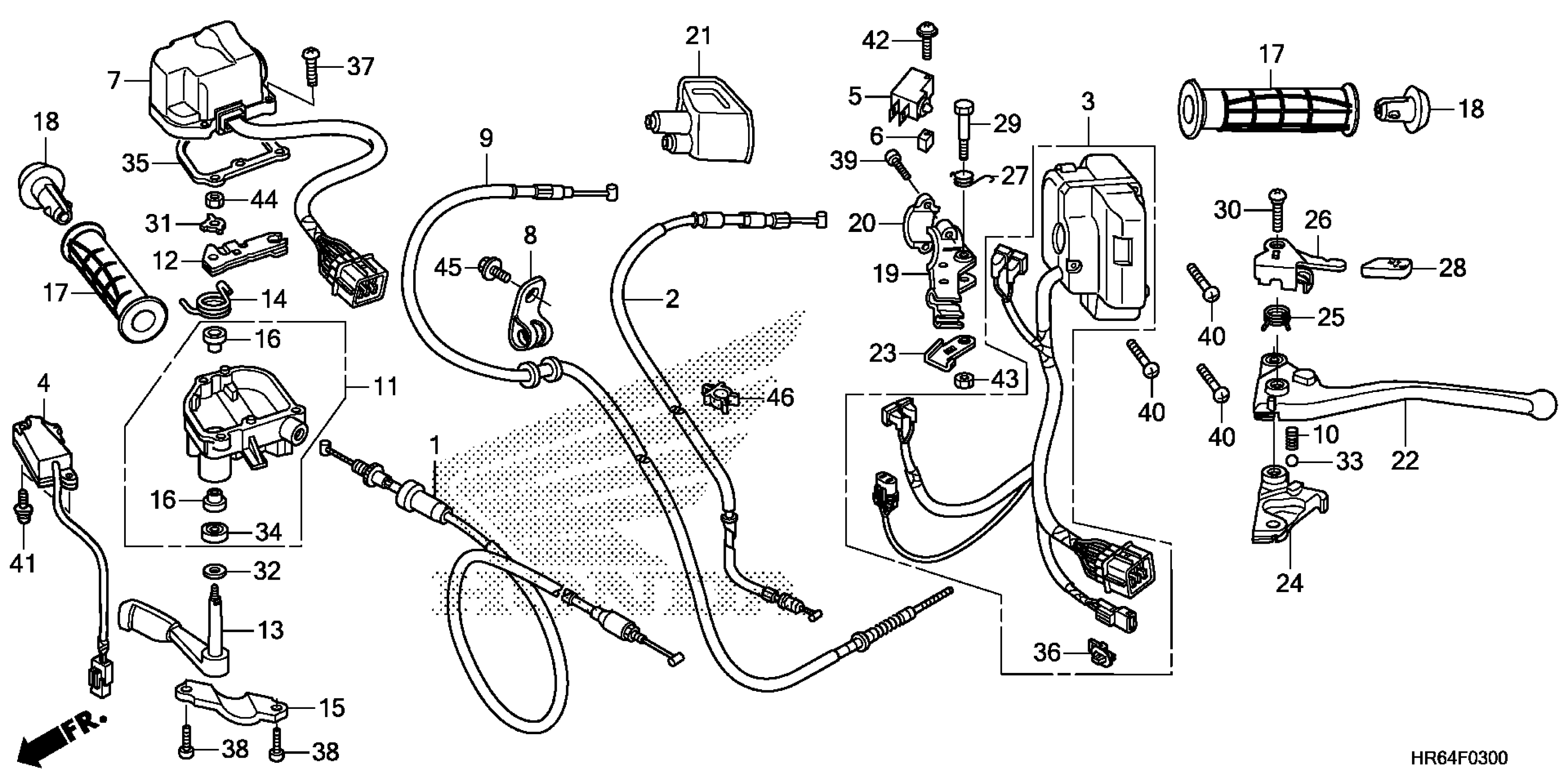

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 SWITCH@CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HR6-A60

$11.82

2

CABLE, REVERSE ASSIST

22880-HR6-A60

$11.98

3

SW, ELECTRIC SHIFT This part replaces 35140-HR6-A62.

35140-HR6-A63

$86.73

4

SWITCH ASSY., MODE SELECT

35300-HR3-A61

$19.46

5

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

5

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

6

COLLAR, STOP SWITCH

35345-HF1-830

$6.01

7

SWITCH ASSY., DIFFERENTIAL LOCK

35400-HR6-A61

$116.78

8

CLAMP, BRAKE CABLE

43452-HR3-A20

$2.70

9

CABLE, HAND BRAKE

43460-HR6-A61

$10.84

10

SPRING, PLUNGER

47155-MGE-D00

$3.62

11

CASE ASSY., THROTTLE LEVER (FOR CASE WITH SWITCH PLEASE USE 53143-HN0-305)

53143-HM7-305

$50.26

11

CASE ASSY., THROTTLE LEVER (WL)

53143-HR3-305

$44.52

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

15

HOLDER, THROTTLE CASE

53147-HN0-670

$14.30

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-HR6-A60

$4.34

18

GUARD, HANDLE END

53167-HP5-600

$2.33

19

BRACKET, BRAKE LEVER

53172-HN5-M50

$18.11

20

HOLDER, LEVER BRACKET

53173-376-000

$10.95

21

COVER, L. HANDLE

53177-HN5-M40

$6.45

22

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HR6-A60.

53178-HR6-305

$22.04

22

LEVER, L. HANDLEBAR (COO)

53178-HR6-305

$22.04

23

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$2.02

24

ARM, REVERSE ASSISTANT

53179-HR6-A60

$5.25

25

SPRING, PARKING LEVER (A)

53191-HR6-A60

$2.30

26

LEVER, PARKING BRAKE LOCK

53192-HR6-A60

$8.76

27

SPRING, PARKING LEVER RETURN

53193-HN5-C20

$3.10

28

CAP, PARKING LEVER

53193-HR6-A60

$2.89

29

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$9.20

30

SCREW, PARKING LEVER PIVOT

90115-HR6-A60

$1.49

31

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

32

WASHER (9X20)

90504-HA0-000

$2.28

33

BALL, STEEL (#6) (3/16)

91101-MAM-A80

$1.49

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

35

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

36

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

37

SCREW, PAN (4X16)

93500-04016-0G

$1.49

38

SCREW, PAN (5X14)

93500-05014-0G

$3.67

39

SCREW, PAN (5X18)

93500-05018-0G

$1.49

40

SCREW, PAN (5X28)

93500-05028-0G

$1.49

41

SCREW-WASHER (4X12)

93891-04012-07

$1.49

42

SCREW-WASHER (4X20)

93893-04020-07

$1.49

43

NUT, HEX. (6MM)

94001-06070-0S

$1.49

44

NUT, HEX. (6MM)

94002-06000-0S

$1.49

45

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

46

CLIP, TUBE (3.5)

91531-SZ5-003

$4.41
