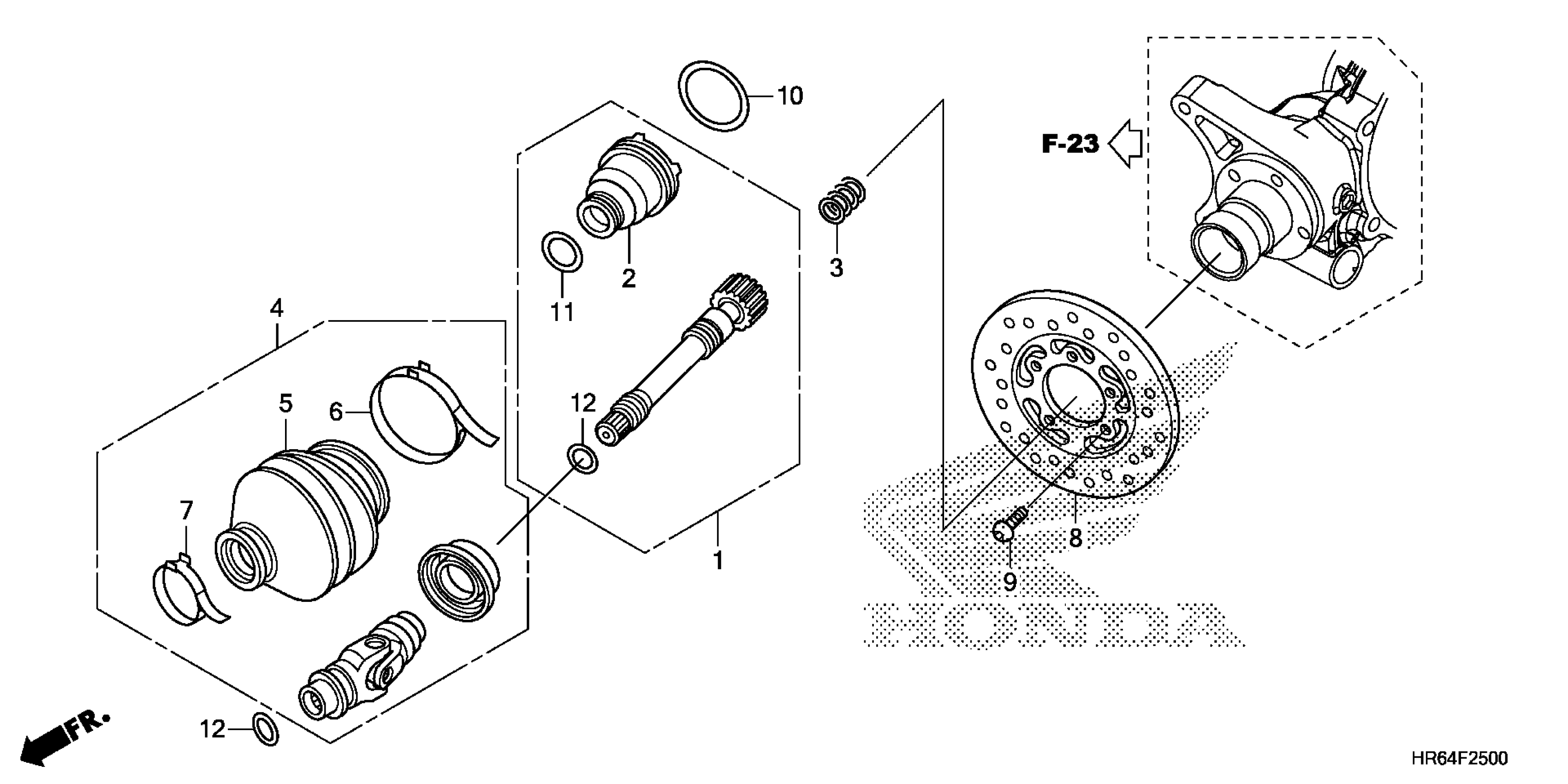

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 PROPELLER SHAFT Diagram

SHAFT ASSY., RR. PROPELLER

40200-HR6-A60

$50.11

BOOT, PROPELLER SHAFT COVER

40203-HP7-A00

$3.77

SPRING, PROPELLER SHAFT

40215-HN0-671

$3.22

JOINT ASSY., YOKE

40300-HR3-A20

$75.62

BOOT, YOKE JOINT

40321-HR0-F00

$5.52

BAND A, YOKE JOINT BOOT

40322-HN8-000

$6.19

BAND B, YOKE JOINT BOOT

40323-HN8-000

$5.07

DISK, RR. BRAKE This part replaces 43251-HN8-B01.

43251-HR6-MF1

$420.87

BOLT, DISK (6X17)

90105-HN8-000

$3.51

BAND, BOOT (D32)

91301-HM7-A00

$6.34

BAND, BOOT (D20)

91303-HM7-A00

$7.93

O-RING (21.8X2.4) (Honda Code 3793031)

91355-759-003

$1.74
