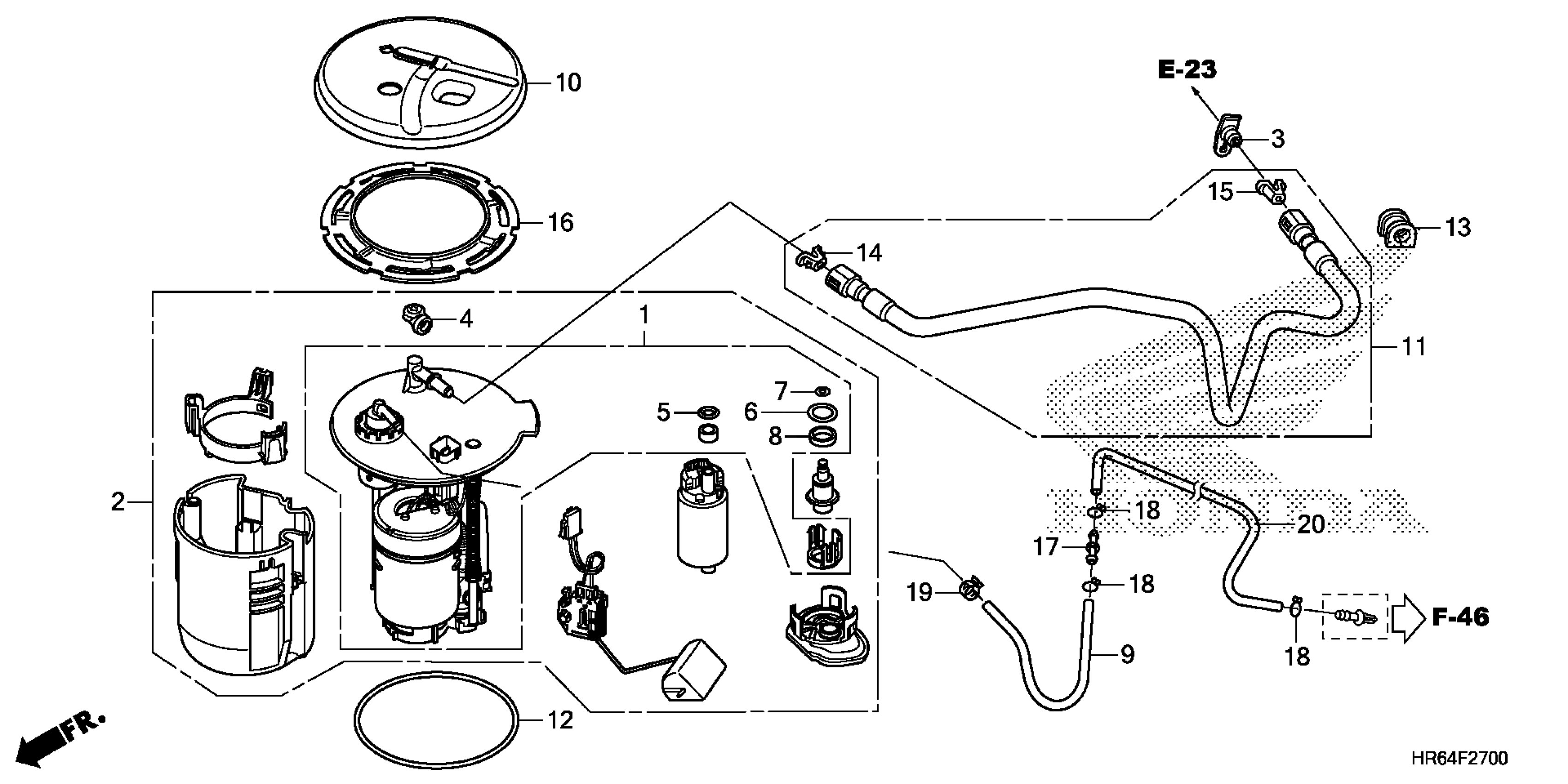

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 FUEL PUMP Diagram

FILTER SET, FUEL

16010-HR3-A21

$42.05

PUMP ASSY., FUEL (MSDS)

16700-HR3-A21

$184.82

DAMPER, CONNECTOR

16718-HR0-F00

$1.49

DAMPER, CONNECTOR (Honda Code 7003056)

16719-HW1-670

$23.76

O-RING

17041-S5A-930

$13.85

O-RING

17047-SAA-003

$73.44

O-RING

17048-SAA-003

$3.85

RING, BACK-UP

17049-SAA-003

$4.08

TUBE, TANK BREATHER (A)

17521-HR3-A20

$5.96

COVER, FUEL PUMP

17523-HR3-A20

$59.34

HOSE, FUEL FEED

17570-HR3-A21

$26.05

GASKET, FUEL PUMP

17574-HR3-A21

$4.56

RUBBER, FUEL FEED HOSE

17579-HP5-600

$1.93

RETAINER (ORANGE) (TOKAI) (Honda Code 5928296)

17711-S0X-003

$2.92

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.40

RING, FUEL PUMP LOCKING

17719-HR3-A21

$11.33

JOINT B, WASHER TUBE (MITSUBA)

38562-663-920

$8.56

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

CLAMP, TUBE (D8.5)

95002-40850-08

$2.34

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$34.14
