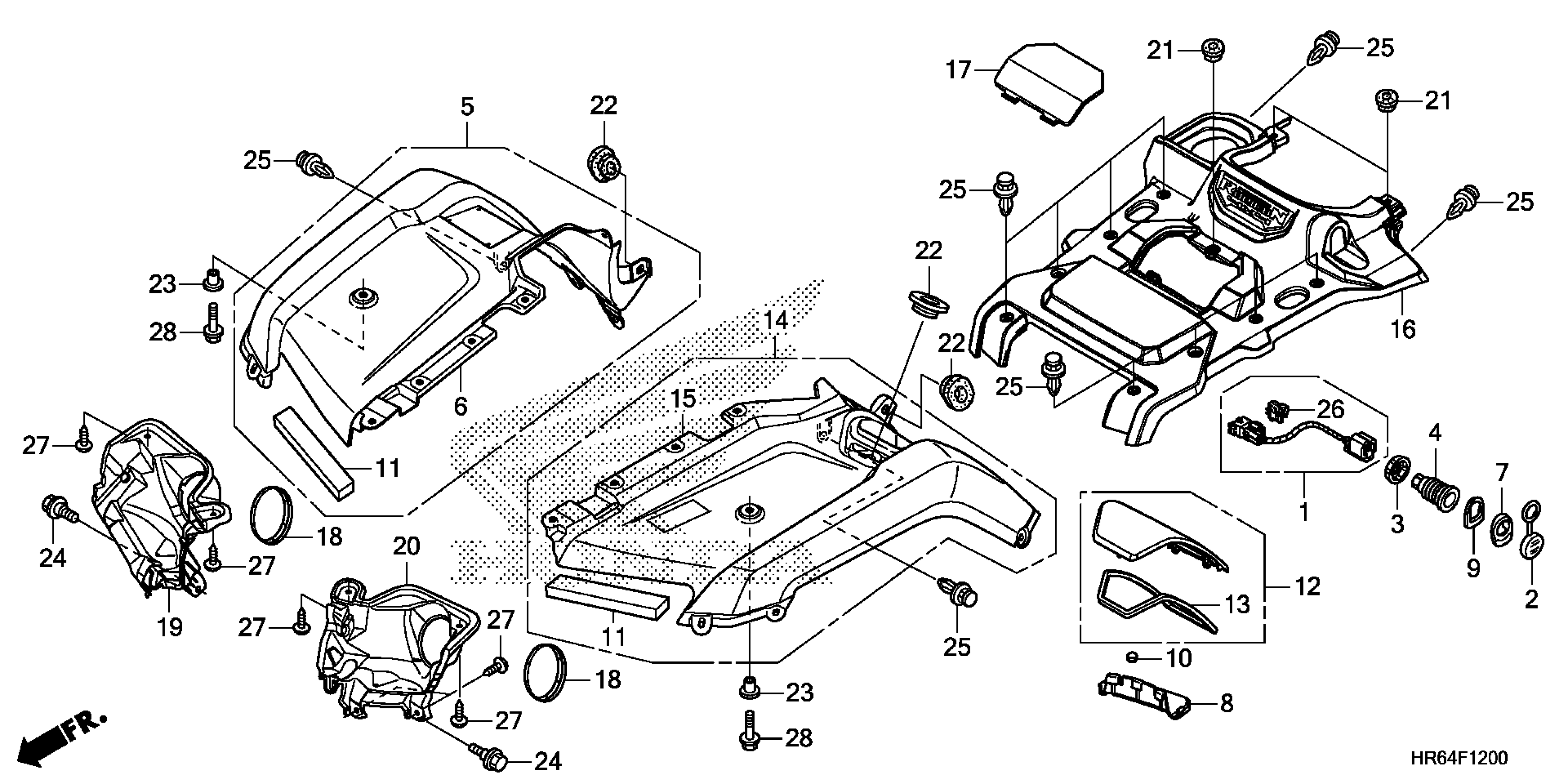

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 FRONT FENDER Diagram

#

Description
Price

1

SUB-HARNESS, ACCESSORY

31651-HR4-A20

$4.80

2

CAP

31652-HP0-A01

$2.24

3

NUT

31653-HP0-A01

$1.49

4

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

5

FENDER, R. FR. *G152* (ADVENTURE GREEN)

61100-HR4-A20ZC

$100.64

5

FENDER, R. FR. *R232* (PATRIOT RED)

61100-HR4-A20ZA

$100.55

7

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.28

8

PLUG, GLOVE BOX *NH1* (BLACK)

61103-HR0-F00ZA

$4.49

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.70

10

PLUG, FR. FENDER

61105-KA8-000

$1.49

11

SEAL, FR. FENDER

61107-HR4-A20

$5.29

12

LID ASSY., GLOVE BOX *G152* (ADVENTURE GREEN)

61110-HR4-A20ZC

$17.87

12

LID ASSY., GLOVE BOX *R232* (PATRIOT RED)

61110-HR4-A20ZA

$17.87

13

SEAL, GLOVE BOX

61122-HR4-A20

$4.10

14

FENDER, L. FR. *G152* (ADVENTURE GREEN)

61200-HR4-A20ZC

$88.88

14

FENDER, L. FR. *R232* (PATRIOT RED)

61200-HR4-A20ZA

$88.74

16

COVER SET, FR. CENTER (TYPE1) (WL)

61305-HR6-A60ZB

$105.90

17

LID, RADIATOR CAP *NH1* (BLACK)

61310-HR3-A20ZA

$8.17

18

CAP, FR. COVER *NH1* (BLACK)

64365-040-000ZH

$4.33

19

COVER, R. HEADLIGHT

66301-HR3-A20

$3.28

20

COVER, L. HEADLIGHT

66302-HR3-A20

$3.28

21

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

22

GROMMET, SIDE COVER

83551-MA6-000

$3.35

23

COLLAR, NUMBER BRACKET SETTING

84706-GB0-900

$2.71

24

BOLT, FLANGE (6MM)

90111-162-000

$2.89

25

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

26

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

27

SCREW, TAPPING (5X12)

93903-25220

$1.49

28

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
