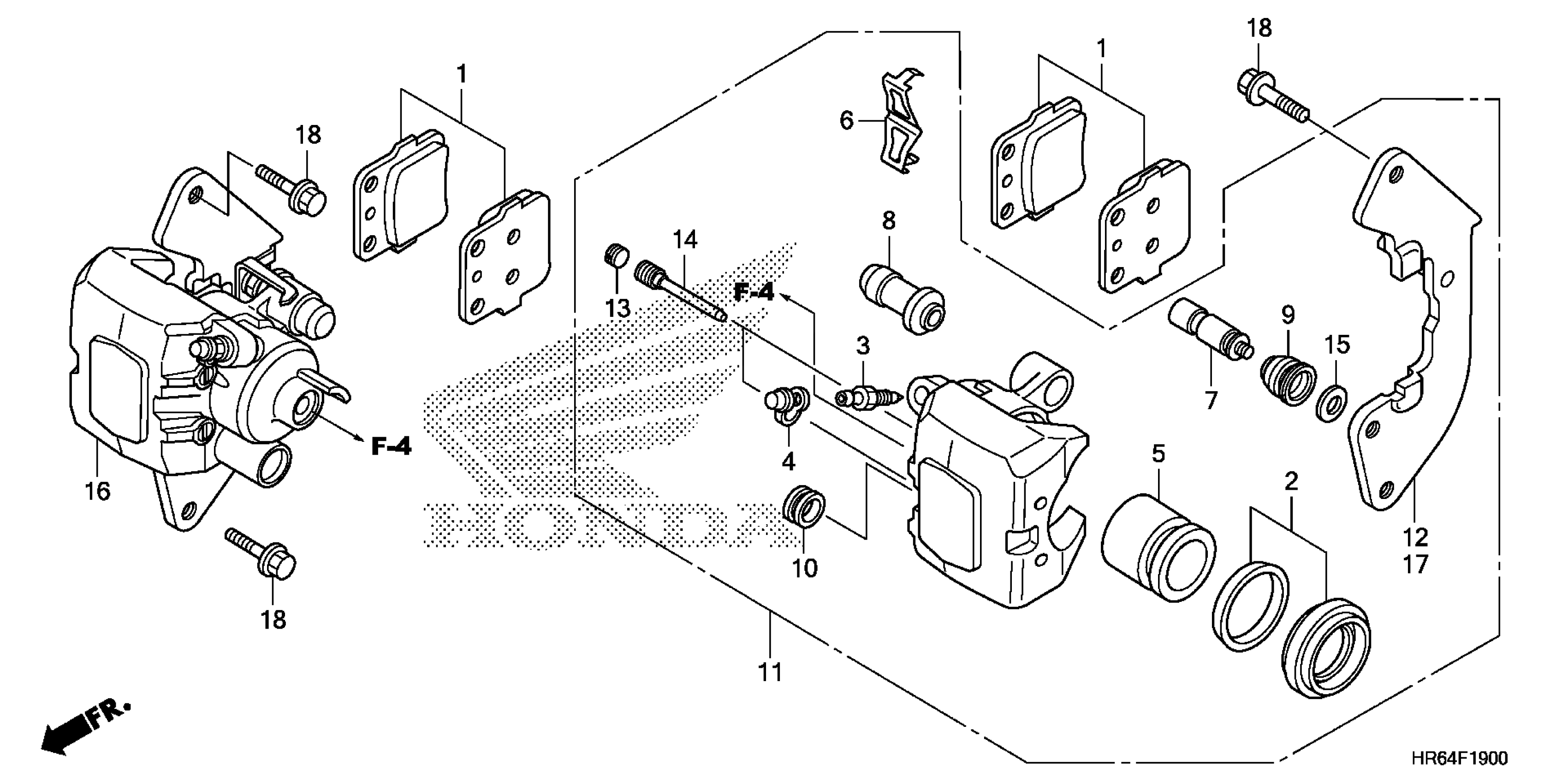

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 FRONT BRAKE CALIPER Diagram

PAD SET, FR. BRAKE

06435-HP7-A01

$17.83

SEAL SET, PISTON

06451-HP5-601

$7.47

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (32MM)

45107-HP5-601

$37.48

SPRING, PAD

45108-166-006

$7.12

PIN, SLIDE

45115-GE3-602

$10.56

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT, PIN

45133-166-016

$3.43

PLUG, DUST

45134-GE3-601

$4.28

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-HP5-601

$148.96

BRACKET SUB-ASSY., L. FR. CALIPER

45190-HP5-601

$34.47

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-GE2-016

$10.56

WASHER, CONICAL SPRING

45218-166-006

$3.62

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-HP5-601

$148.96

BRACKET SUB-ASSY., R. FR. CALIPER

45290-HP5-601

$34.47

BOLT, FLANGE (8X20)

90115-HA7-670

$4.05
