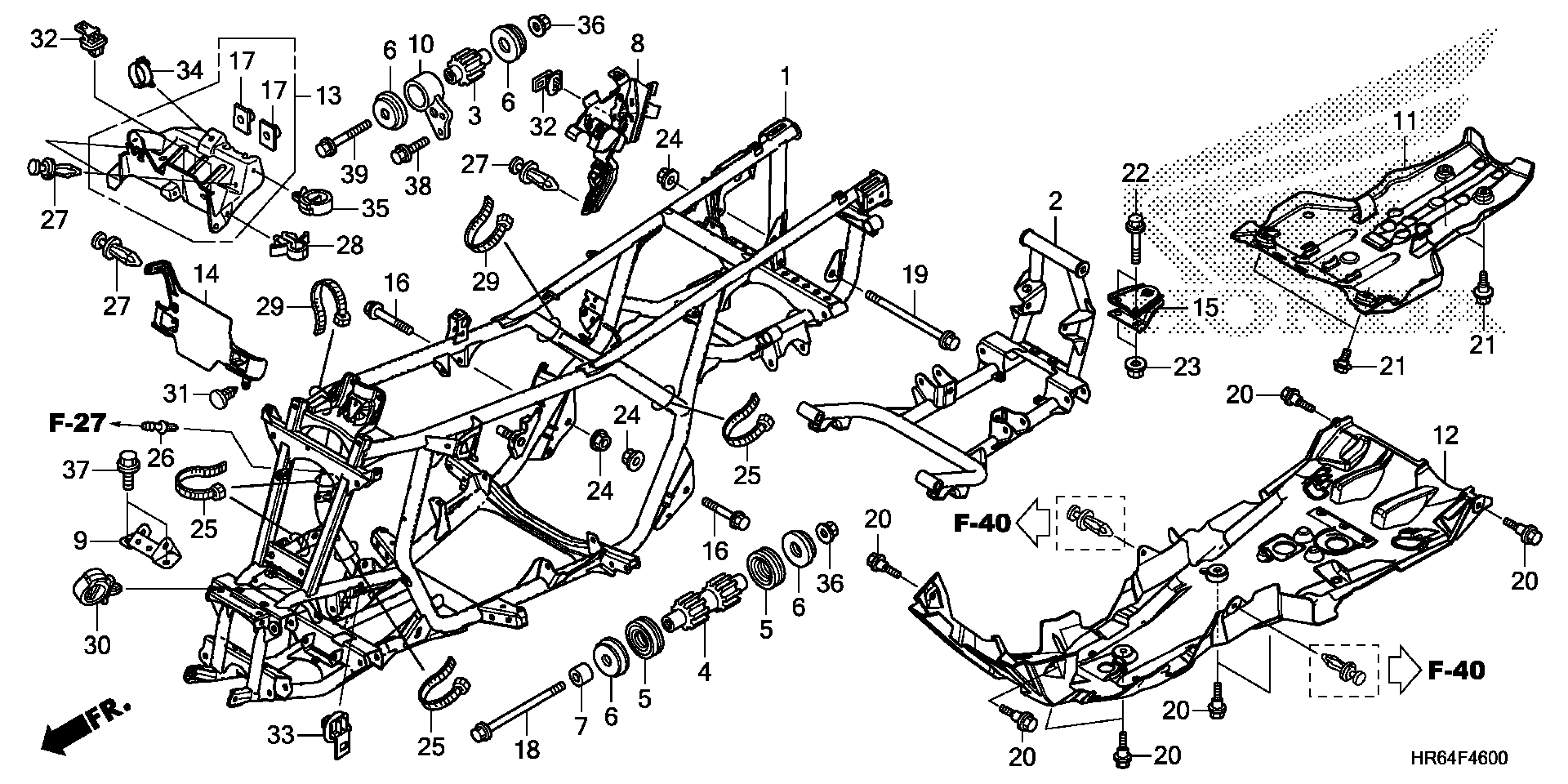

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 FRAME Diagram

FRAME

50100-HR6-A60

$783.07

FRAME, RR. (LOWER)

50200-HR6-A60

$725.15

RUBBER, ENGINE HEAD MOUNTING

50201-HP5-600

$8.99

RUBBER, ENGINE MOUNTING (LOWER)

50202-HP0-A50

$23.14

DUST SEAL, ENGINE MOUNTING

50203-HM7-003

Unavailable

RUBBER C, MOUNTING

50204-HP5-600

$6.51

COLLAR, ENGINE HANGER

50205-HM8-000

$7.79

STAY, CONNECTOR (SIDE)

50340-HR6-A60

$7.34

BRACKET, FR. GEAR CASE

50350-HR3-A20

$6.66

BRACKET, HEAD HANGER

50351-HP5-600

$9.27

SKID, RR. GEAR CASE

50355-HR6-A60

$10.16

GUARD, ENGINE *NH1* (BLACK)

50360-HR3-A20ZA

$43.44

STAY, CONNECTOR (FR)

50370-HR3-A20

$8.51

DEFLECTOR, AIR

50380-HR6-A60

$4.57

HITCH, TRAILER

50810-HN8-000

$61.00

BOLT, SWINGARM PIVOT (12X70)

52101-HR3-A20

$1.72

NUT, SPECIAL (6X7)

61304-958-003

$3.10

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.35

BOLT, FLANGE (12X193)

90106-MEJ-000

$15.89

BOLT, FLANGE (6MM)

90111-147-000

$2.66

BOLT, FLANGE (6MM)

90111-187-000

$7.39

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.17

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

NUT, FLANGE (12MM)

90306-181-761

$5.80

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

JOINT, BREATHER TUBE

90652-HF7-003

$8.76

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

CLIP, WIRE HARNESS (6MM) (WHITE)

90654-SA4-003

$0.21

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.44

CLIP, WIRE HARNESS

90684-ZA0-601

$2.80

CLIP, WASHER MOUTH

91504-SD5-901

$4.20

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

CLIP, CONNECTOR (BROWN)

91535-TF0-003

$2.81

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.19

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

Unavailable

NUT, FLANGE (10MM)

94050-10000

$1.66

BOLT, FLANGE (8X16)

95701-08016-07

$1.99

BOLT, FLANGE (8X22)

95701-08022-00

$1.94

BOLT, FLANGE (10X60)

95701-10060-00

$1.82
