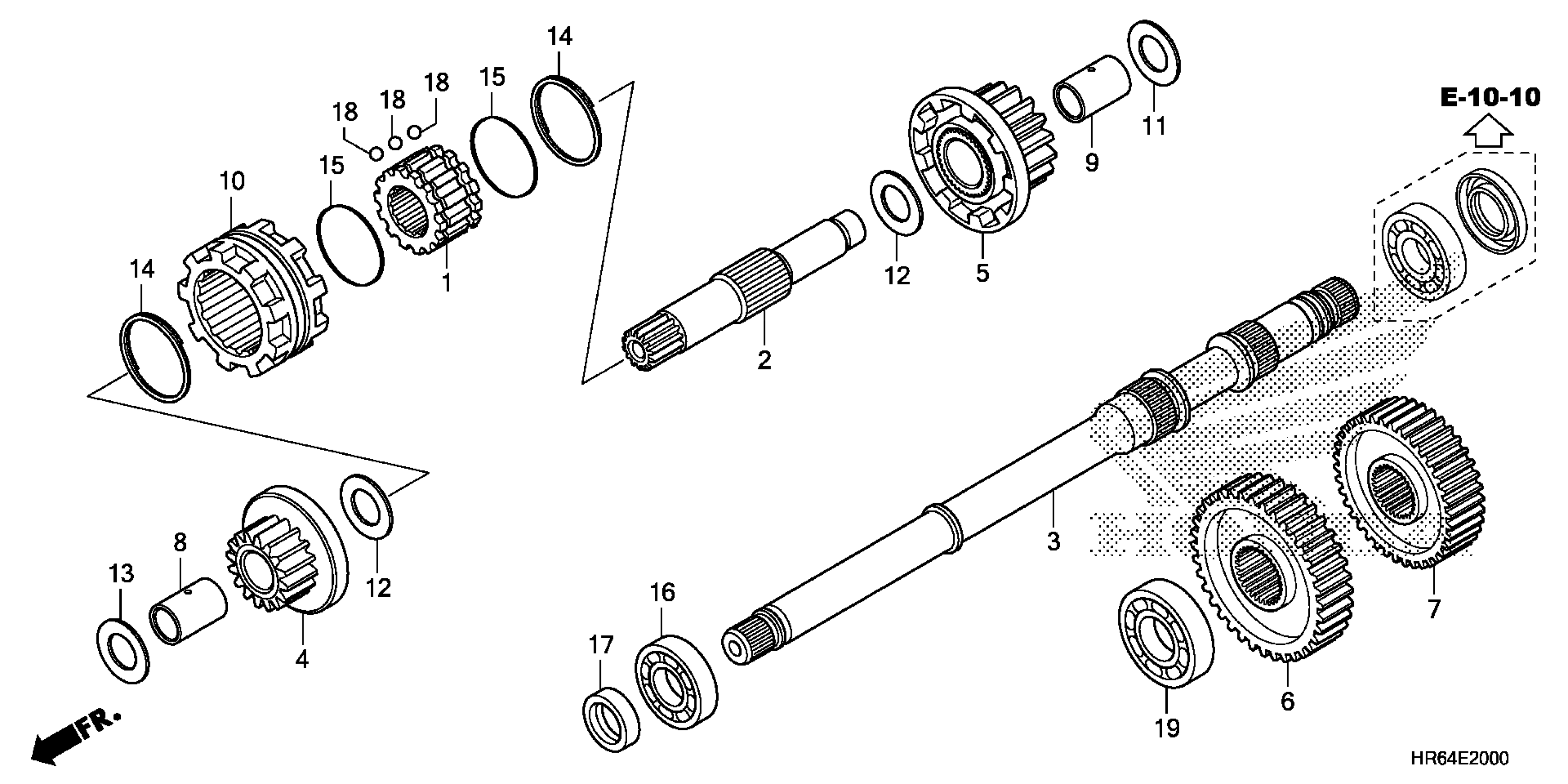

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 FINAL SHAFT Diagram

COLLAR, FINAL SHIFTER

23433-HR6-A60

$43.11

SHAFT, FINAL DRIVE

23601-HR6-A60

$59.11

SHAFT, FINAL

23611-HR6-A60

$110.74

GEAR, FINAL DRIVE LOW

23620-HR6-A60

$102.00

GEAR, FINAL DRIVE HIGH

23630-HR6-A60

$118.93

GEAR, FINAL DRIVEN LOW

23631-HR6-A60

$61.62

GEAR, FINAL DRIVEN HIGH

23632-HR6-A60

$53.87

COLLAR (20X23X31.6)

23633-HR6-A60

$16.98

COLLAR (20X23X34)

23634-HR6-A60

$18.52

SHIFTER, FINAL

23641-HR6-A60

$39.95

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

WASHER, THRUST (20MM) (NOT AVAILABLE)

90457-HR6-A60

Unavailable

WASHER, THRUST (20MM)

90458-292-000

$3.54

RING, DOUBLE COIL (INNER)

90613-HR6-A60

$10.20

CLIP (38.6MM)

90616-HR6-A60

$3.02

BEARING, RADIAL BALL (22X47X14)

91006-HP5-601

$11.84

OIL SEAL (22X35X7)

91202-HR0-F01

$8.18

BALL, STEEL (#5) (5/32)

96211-05000

$1.49

BEARING, RADIAL BALL (60/28)

91052-HN2-B71

$26.16
