Description

Price

1

HOUSING, AIR CLEANER

17210-HR6-A60

$40.38

2

BODY, AIR CLEANER

17211-HP0-A00

$24.18

3

LID, AIR CLEANER

17217-HR6-A60

$11.05

4

SEAL, AIR CLEANER COVER

17219-HR6-A60

$17.02

5

CHAMBER, AIR CLEANER SUB

17220-HR6-A60

$35.87

6

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.87

7

SPRING, AIR CLEANER LID

17223-HN1-A40

$3.76

8

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$7.07

9

HOOK, R. LID SPRING (Honda Code 5898382)

17228-HN1-000

$2.61

10

HOOK, L. LID SPRING (Honda Code 5898390)

17229-HN1-000

$2.61

11

TUBE, AIR CLEANER CONNECTING

17253-HR6-A60

$28.41

12

ELEMENT, AIR CLEANER

17254-HN1-000

$23.65

13

COVER, DUST

17256-HR3-A20

$1.49

14

TUBE, SNORKEL

17258-HR3-A20

$4.44

15

DUCT, SNORKEL

17259-HR3-A20

$45.90

16

TUBE, SUB-CHAMBER CONNECTING

17262-HN7-000

$27.16

17

TUBE, BREATHER

17366-HR6-A60

$63.41

18

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

19

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

20

SENSOR ASSY., AIR TEMPERATURE

37880-RE1-Z01

$36.44

21

GROMMET, TA SENSOR

37881-P2A-000

$4.47

22

BOLT, FLANGE (6MM)

90111-162-000

$2.89

23

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

24

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.51

25

BAND, AIR CONNECTING TUBE (78)

90678-HN2-830

$4.19

26

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.70

27

CLIP, WIRE HARNESS NH1L (BLACK)

91558-SD5-003

$7.56

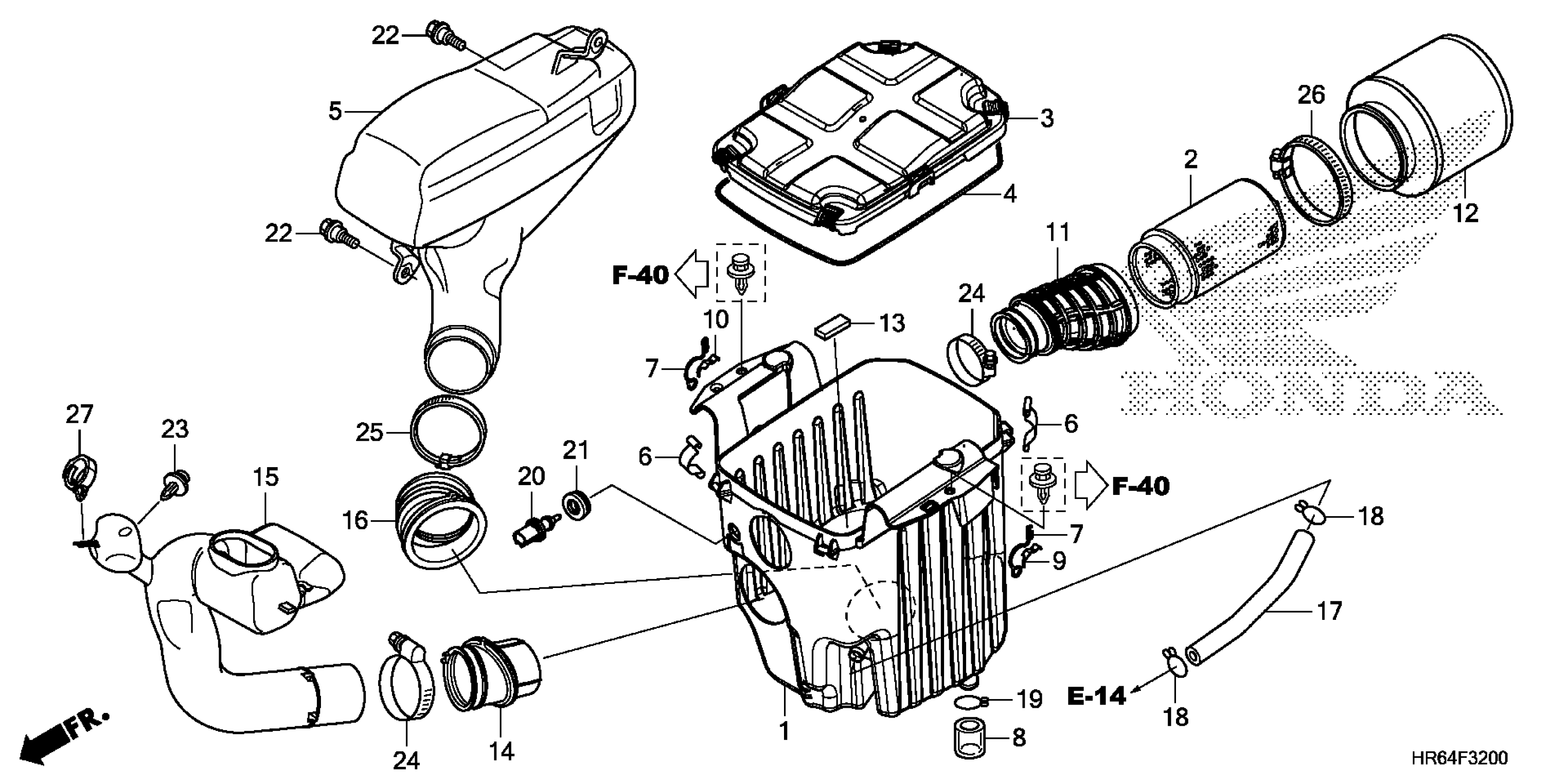

Honda TRX500FA5AC (16) TRX600FA5, USA, VIN# 1HFTE460-G4100001 AIR CLEANER Diagram
