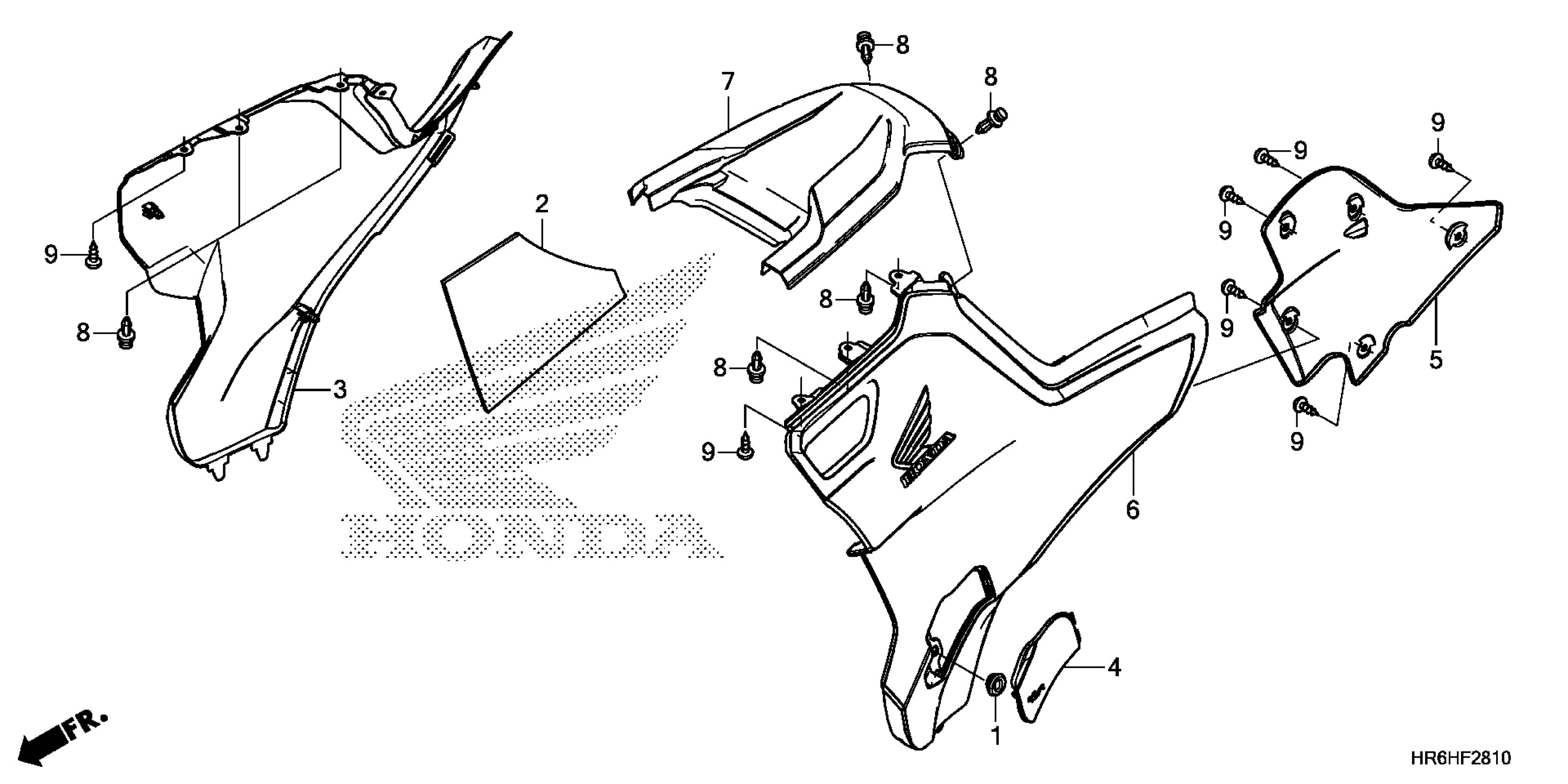

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 SIDE COVER + TANK COVER Diagram

GROMMET, SIDE COVER

83551-MA6-000

$3.35

MAT, R. SIDE COVER

83552-HR3-A20

$9.18

COVER SET, R. SIDE (TYPE1) (WL) | Patriot red R232;

83555-HR5-630ZA

$287.57

COVER SET, R. SIDE (TYPE2) (WL) | Adventure green G152;

83555-HR5-630ZE

$34.51

LID, OIL CHECK *R232* (PATRIOT RED) | Patriot red R232;

83653-HR6-660ZB

$6.65

LID, OIL CHECK *G152* (ADVENTURE GREEN) | Adventure green G152;

83653-HR6-660ZE

$6.63

COVER, SIDE (INNER)

83654-HR6-A60

$21.28

SET ILLUST (TYPE1)

83655-HR5-630ZA

$258.77

SET ILLUST (TYPE1) | Patriot red R232; This part replaces 83655-HR5-630ZF.

83655-HR5-630ZA

$258.77

COVER SET, L. SIDE (TYPE2) (WL) | Adventure green G152;

83655-HR5-630ZE

$37.90

COVER, TANK *NH1* (BLACK)

83700-HR6-A60ZA

$9.88

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

SCREW, TAPPING (5X10)

93903-25110

$1.49
