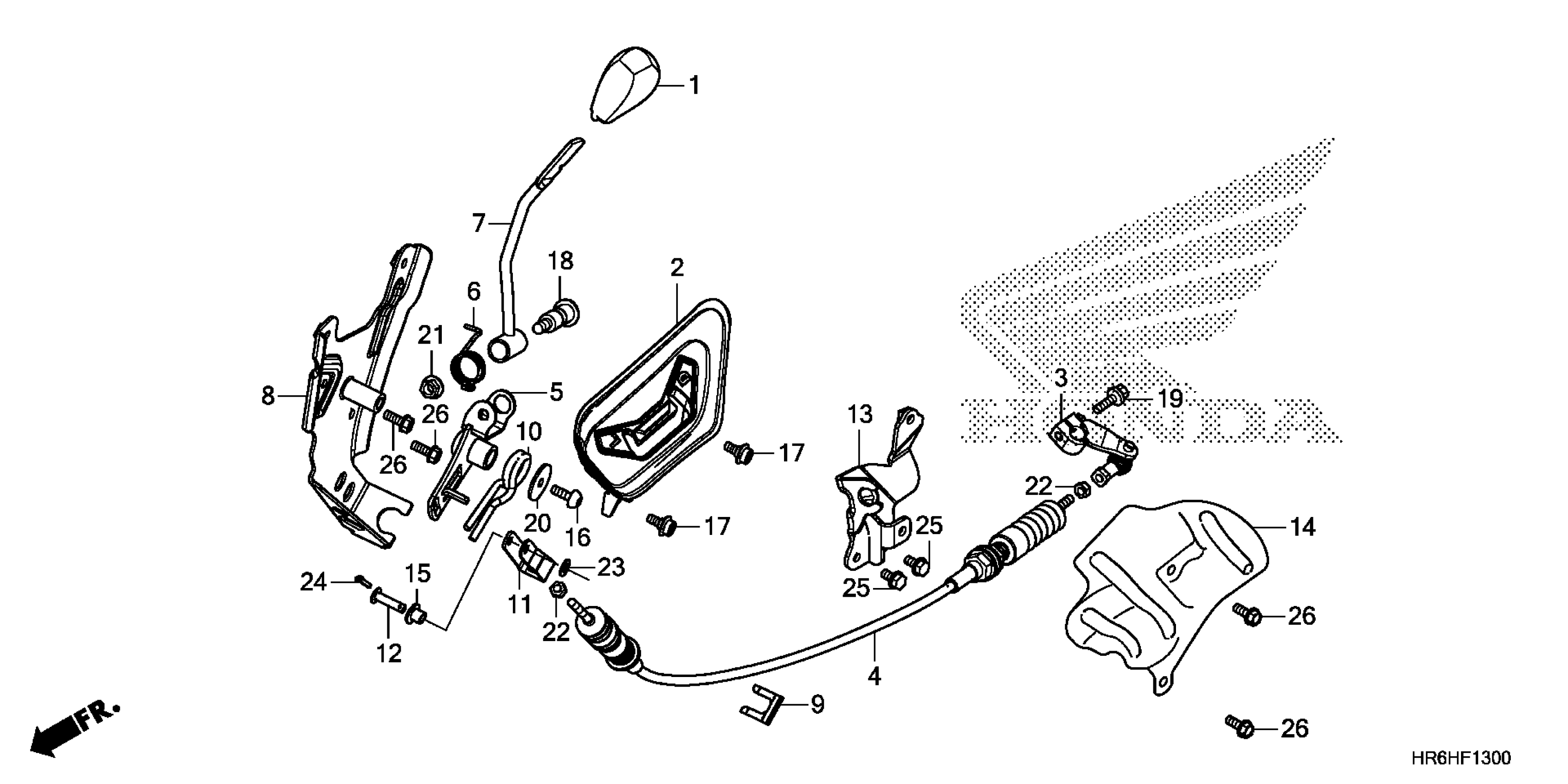

Honda TRX500FA5A (18) TRX500FA5, USA, VIN# 1HFTE46E-J4300001 SELECT LEVER Diagram

#

Description
Price

1

GRIP, DRIVE SELECT LEVER *NH1* (BLACK)

54050-HL1-A00ZA

$13.93

2

GATE, MODE SELECT

54050-HR6-A60

$6.58

3

ARM, SHIFT CHANGE

54313-HR6-A60

$53.05

4

WIRE, CONTROL

54315-HR6-A60

$36.06

5

PLATE, SHIFT CHANGE

54320-HR6-A60

$31.36

6

SPRING, SELECT LEVER

54324-HN7-000

$4.59

7

LEVER, MODE SELECT

54325-HR6-A60

$21.02

8

HOLDER, SHIFT LEVER

54330-HR6-A60

$27.80

9

CLAMP, SHIFT CABLE

54332-HR6-A60

$6.68

10

SPRING, SHIFT RETURN

54335-HR6-A60

$2.48

11

PLATE, SLIDE

54336-HR6-A60

$4.08

12

SHAFT, SLIDE

54337-HN7-000

$2.98

13

STAY, SHIFT CABLE HOLDER

54341-HR6-A60

$17.93

14

COVER, SHIFT

54369-HR6-A60

$8.85

15

COLLAR, FAIRING SETTING

64209-MN5-000

$2.97

16

BOLT, DISK (6X17)

90105-HN8-000

$3.51

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

BOLT, CHANGE PIVOT

90115-MAL-600

$14.82

19

BOLT, FLANGE (6X20)

90118-968-000

$4.24

20

WASHER, TANK SETTING

90136-428-870

$1.56

21

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

21

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

PIN, SPLIT (2.0)

94201-20151

$1.49

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
